F405 FC

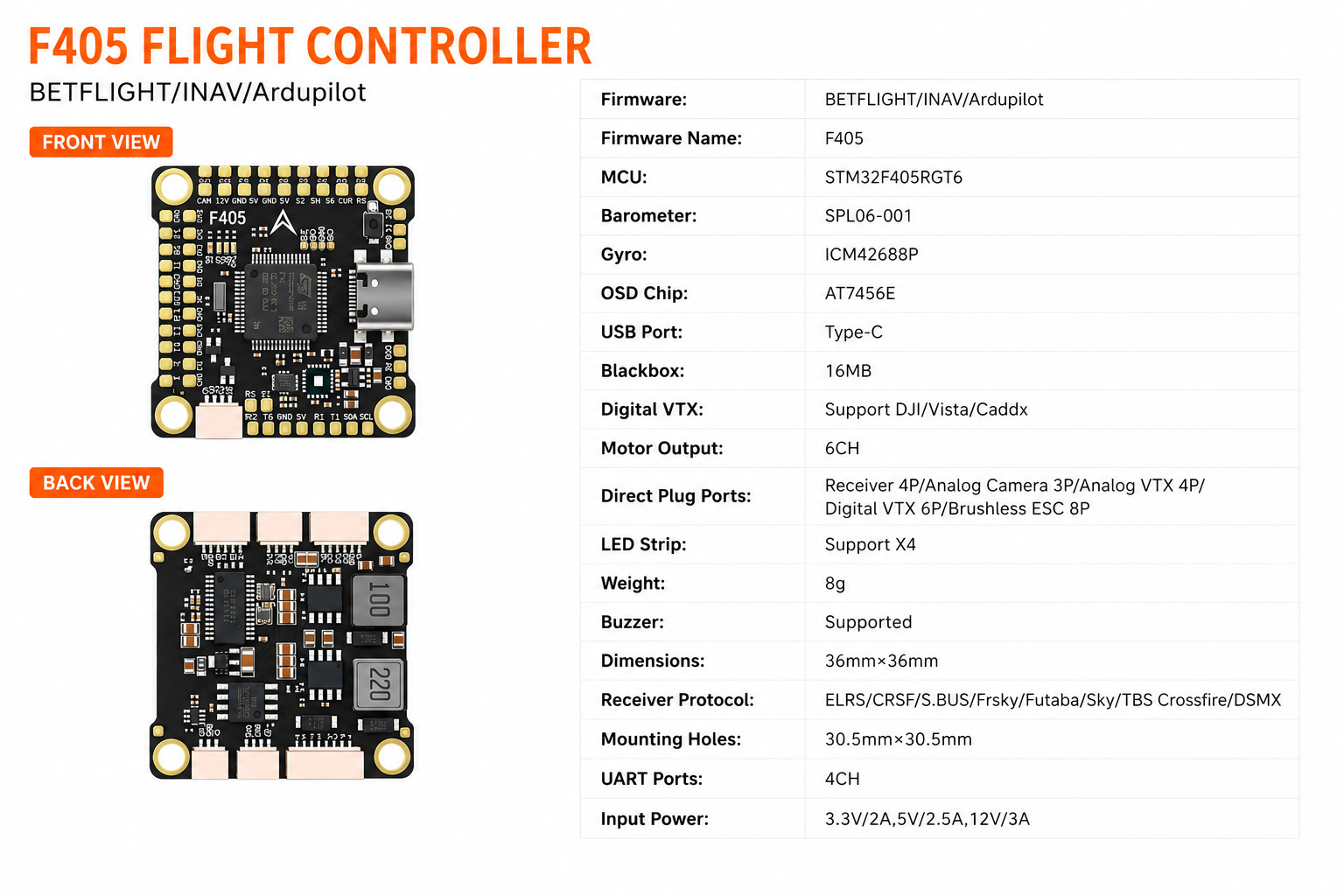

Product Specifications
Product Name: F405 Flight Controller
Firmware: Betaflight / INAV / ArduPilot
MCU: STM32F405RGT6
Barometer: SPL06-001

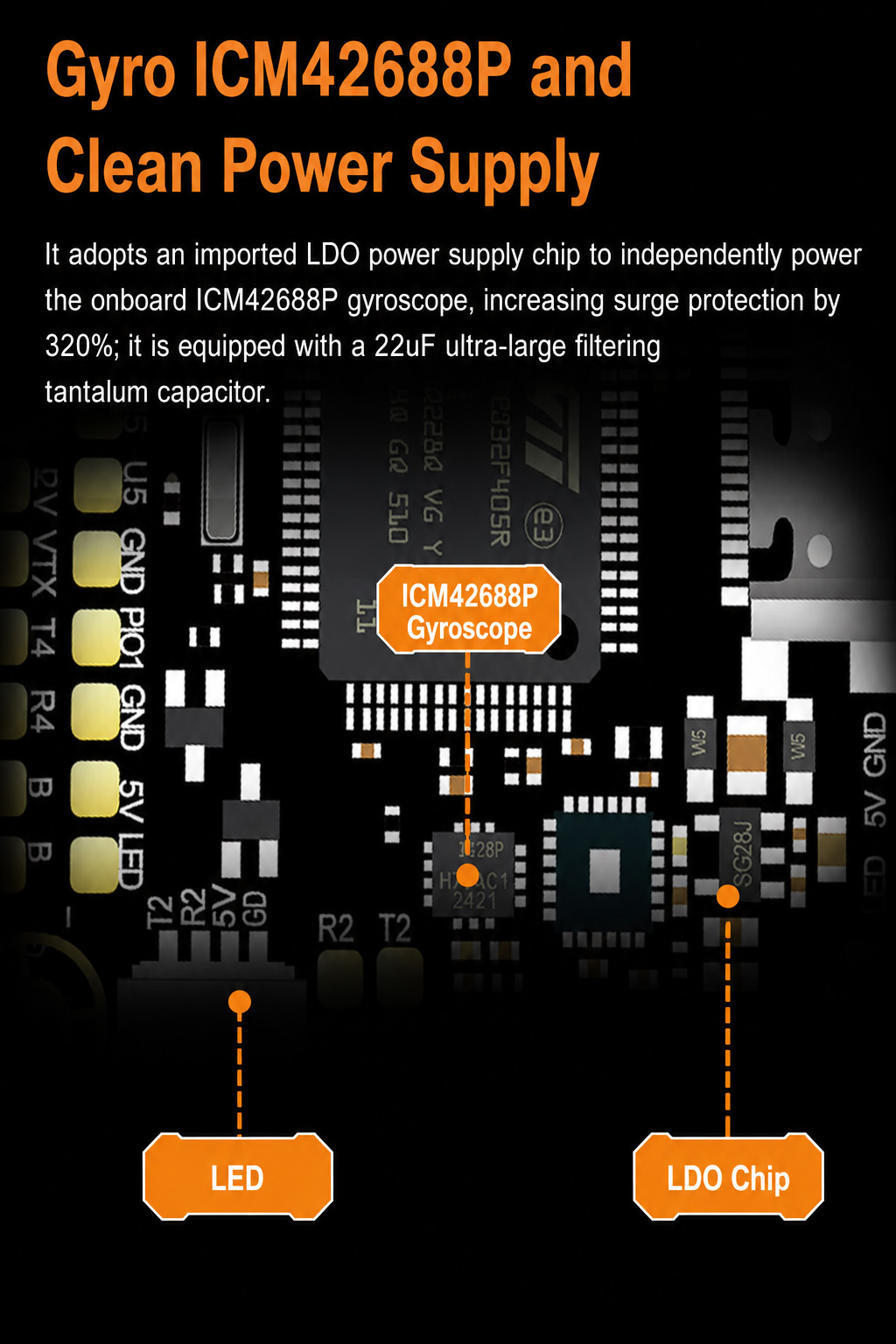

Gyro: ICM42688P
OSD Chip: AT7456E
USB Port: Type-C
Blackbox: 16MB
Digital VTX: Support DJI / Vista / Caddx
Motor Output: 6CH
LED Strip: Support X4
Weight: 8g
Buzzer: Supported
Dimensions: 36mm × 36mm
Mounting Holes: 30.5mm × 30.5mm
UART Ports: 4CH
Input Power: 3.3V/2A, 5V/2.5A, 12V/3A
Receiver Protocol:
ELRS / CRSF / S.BUS / FrSky / Futaba / Sky / TBS Crossfire / DSMX

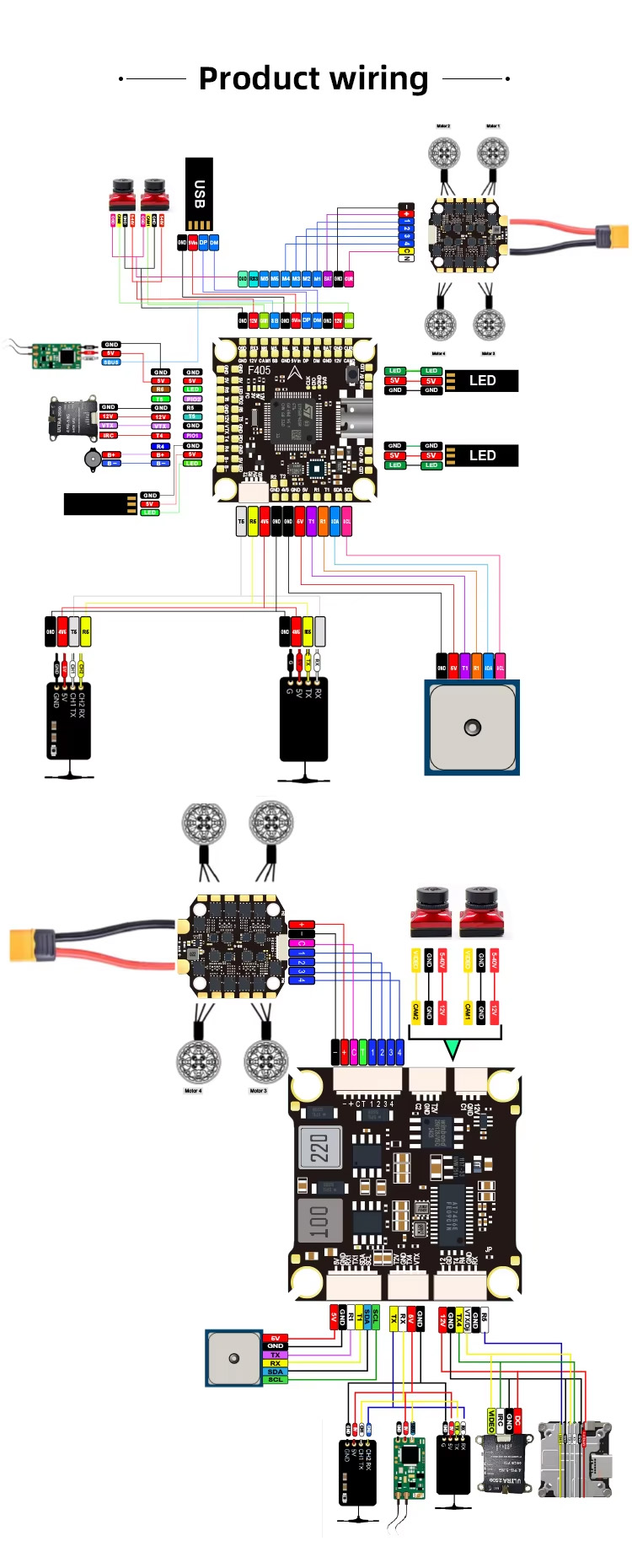

Direct Plug Ports:
Receiver 4P / Analog Camera 3P / Analog VTX 4P / Digital VTX 6P / Brushless ESC 8P
Recommended Matching Products
Entry Freestyle Setup
ESC: 6S 55A ESC
Recommended Frame Size: 5–7 inch
Recommended Motor: 2207 series
Best For: Freestyle, cinematic FPV, and general drone builds.
Long-Range Freestyle Setup
ESC: 8S 60A ESC
Recommended Frame Size: 7–8 inch
Recommended Motor: 2807 series
Best For: Long-range FPV, cruising, and GoPro-style builds.
High-Power 9 Inch Setup
ESC: 8S 70A ESC
Recommended Frame Size: 8–9 inch
Recommended Motor: 2807 / 3115 series
Best For: 8–9 inch freestyle, long-range FPV, and stronger power setups.
