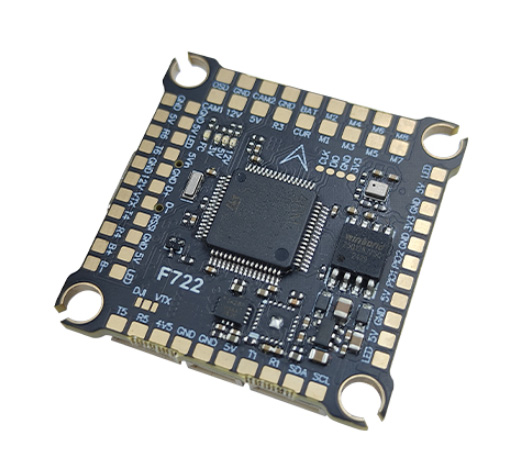

F722 FC

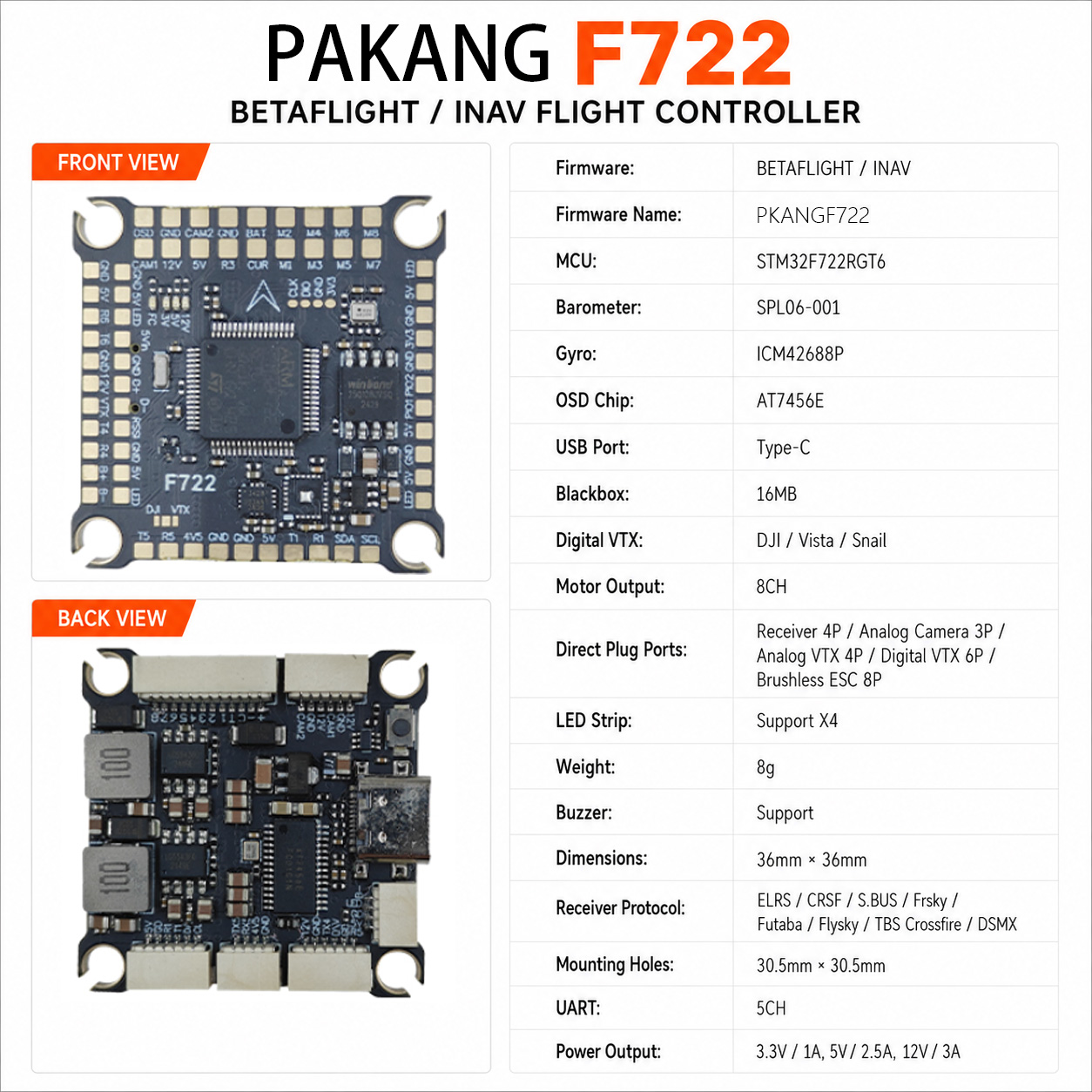

Product Specifications
Product Name: PAKANG F722 Flight Controller
Firmware: Betaflight / INAV
MCU: STM32F722RGT6

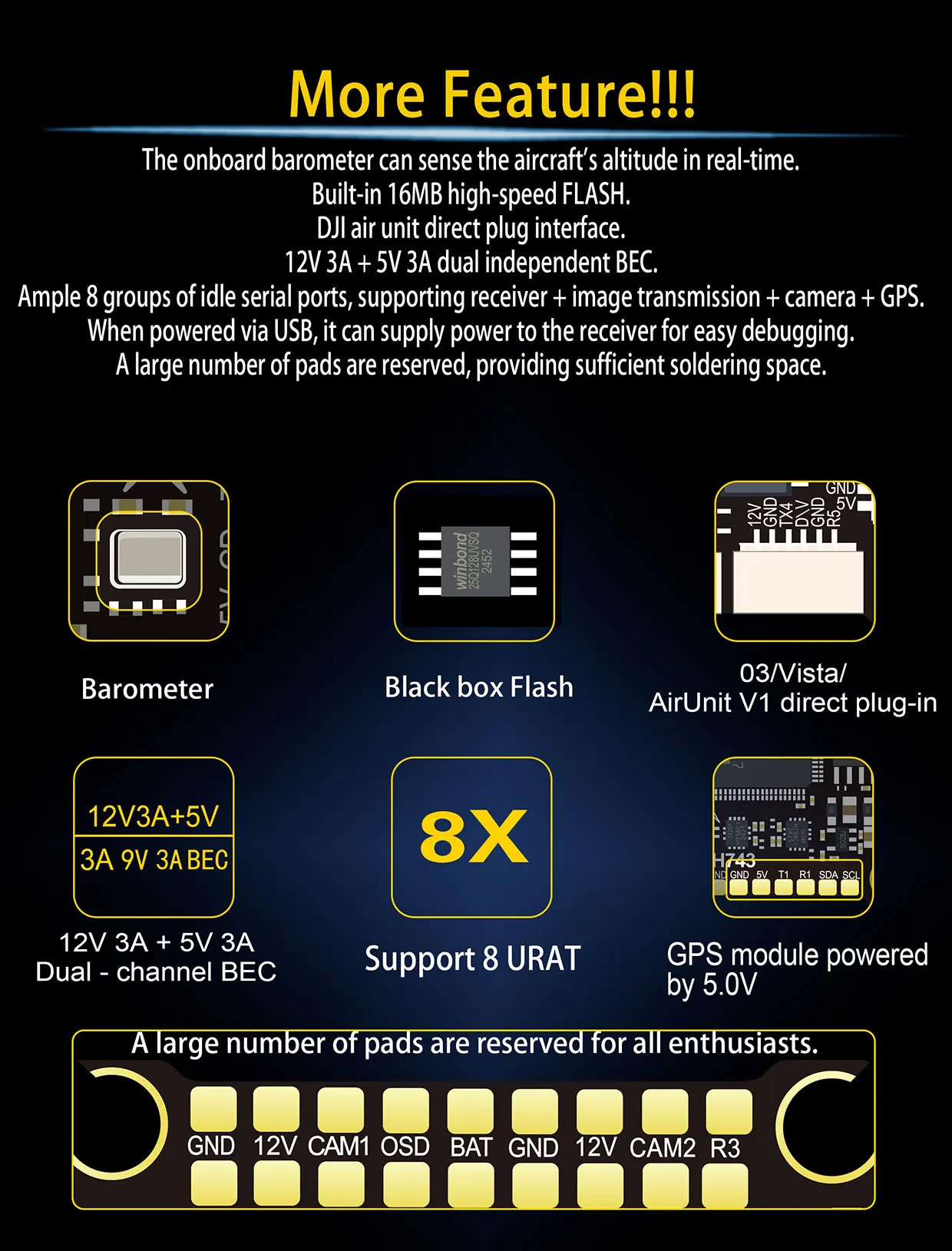

Barometer: SPL06-001

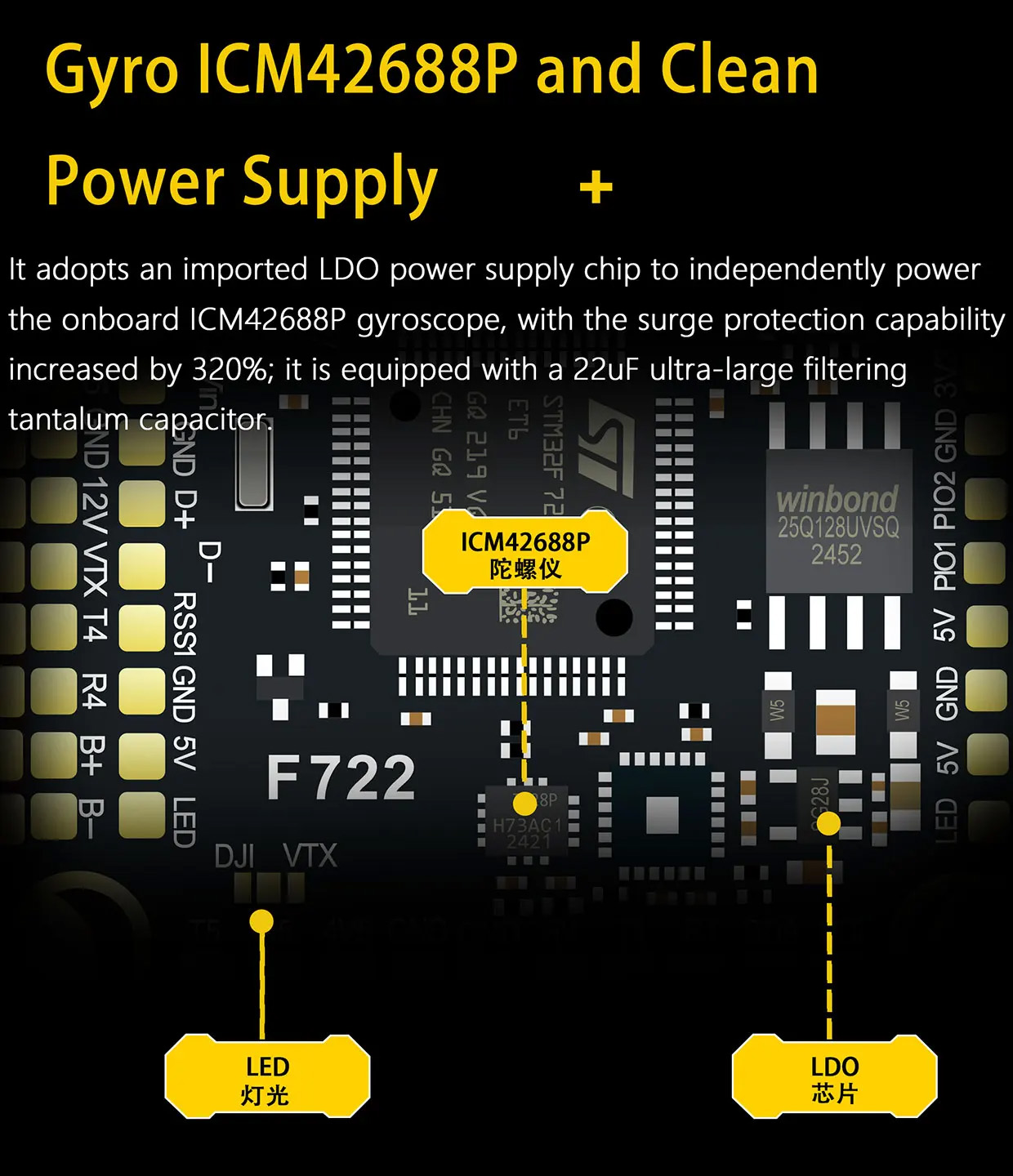

Gyro: ICM42688P
OSD Chip: AT7456E
USB Port: Type-C

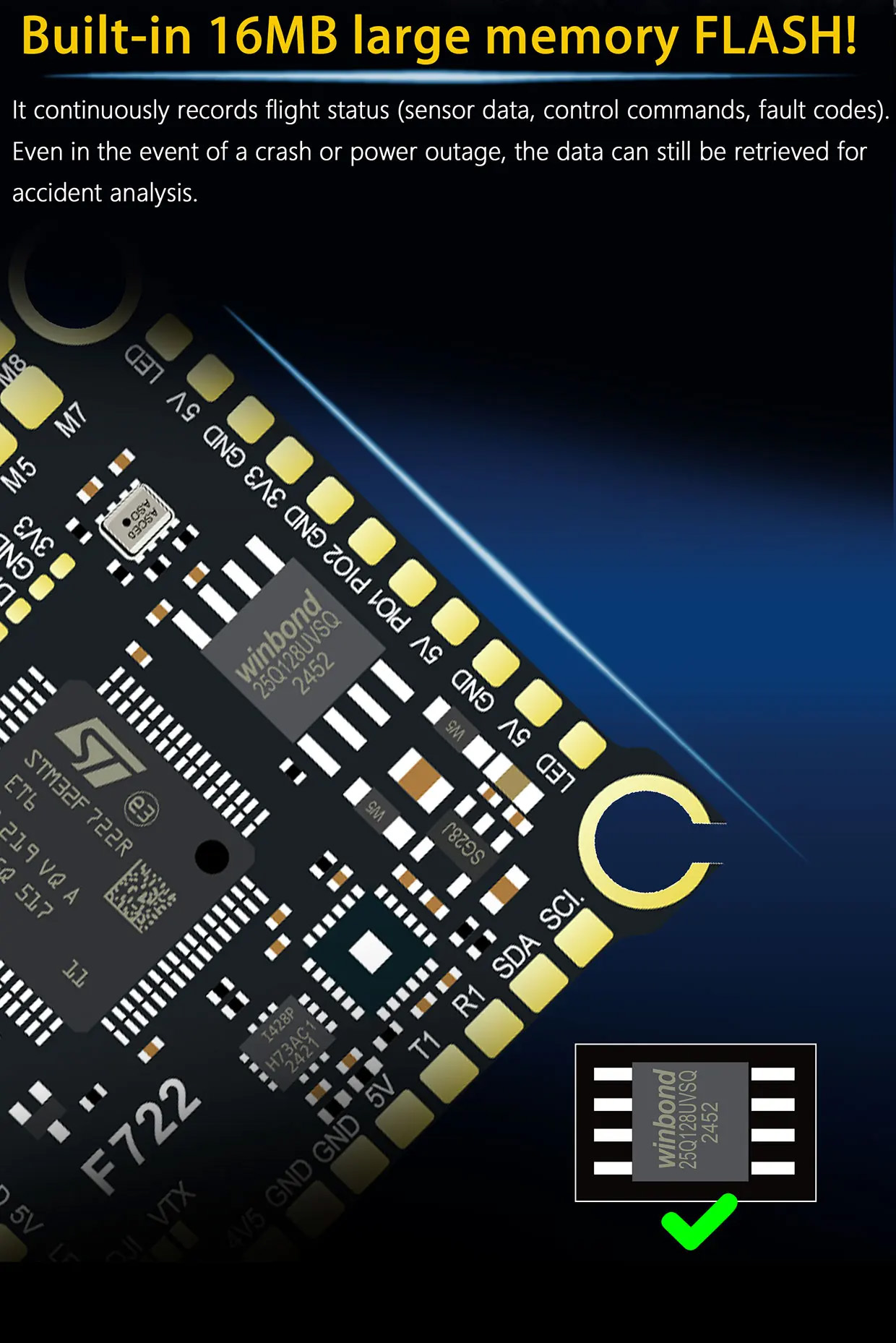

Blackbox: 16MB
Digital VTX: DJI / Vista / Snail

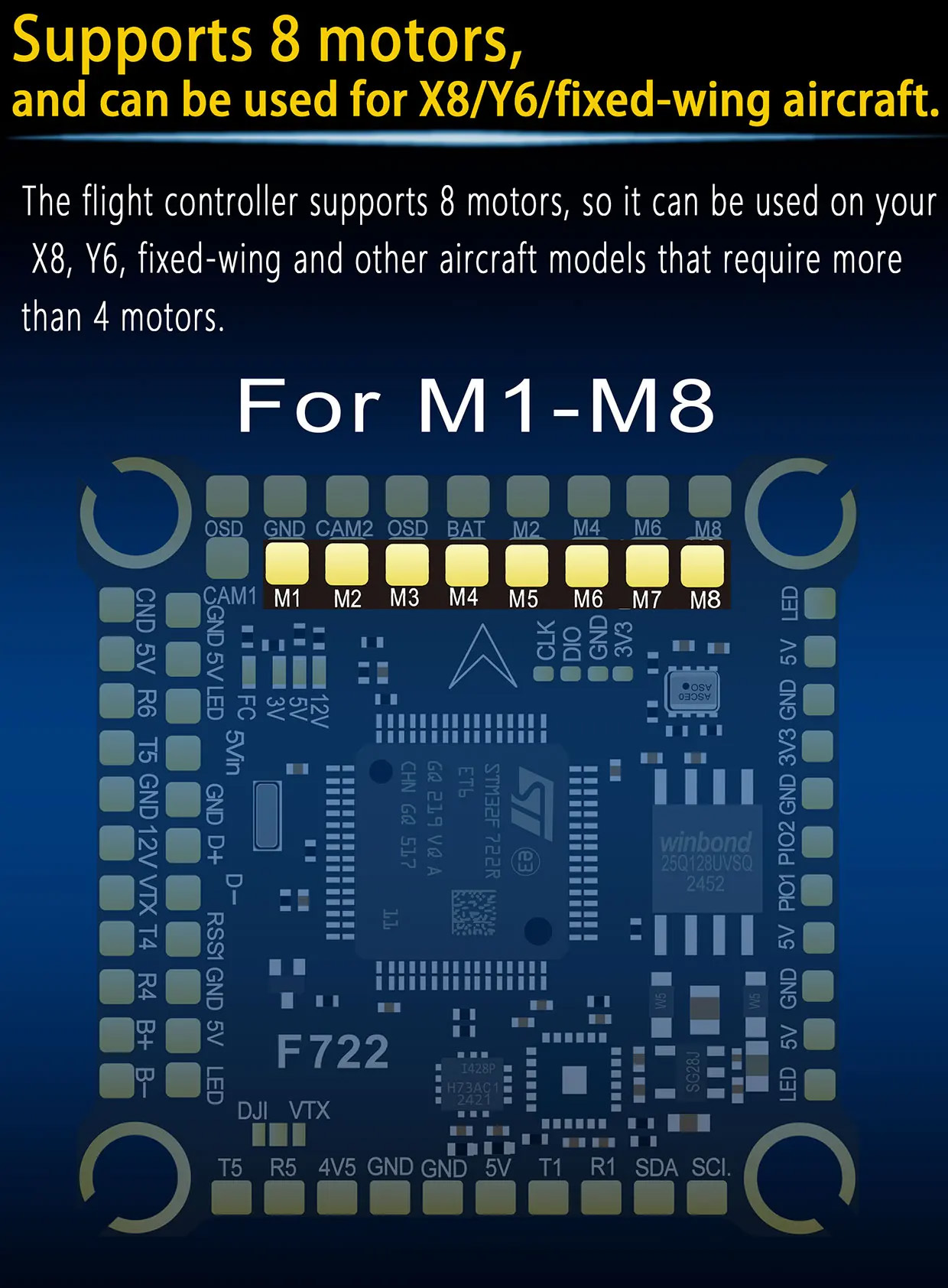

Motor Output: 8CH

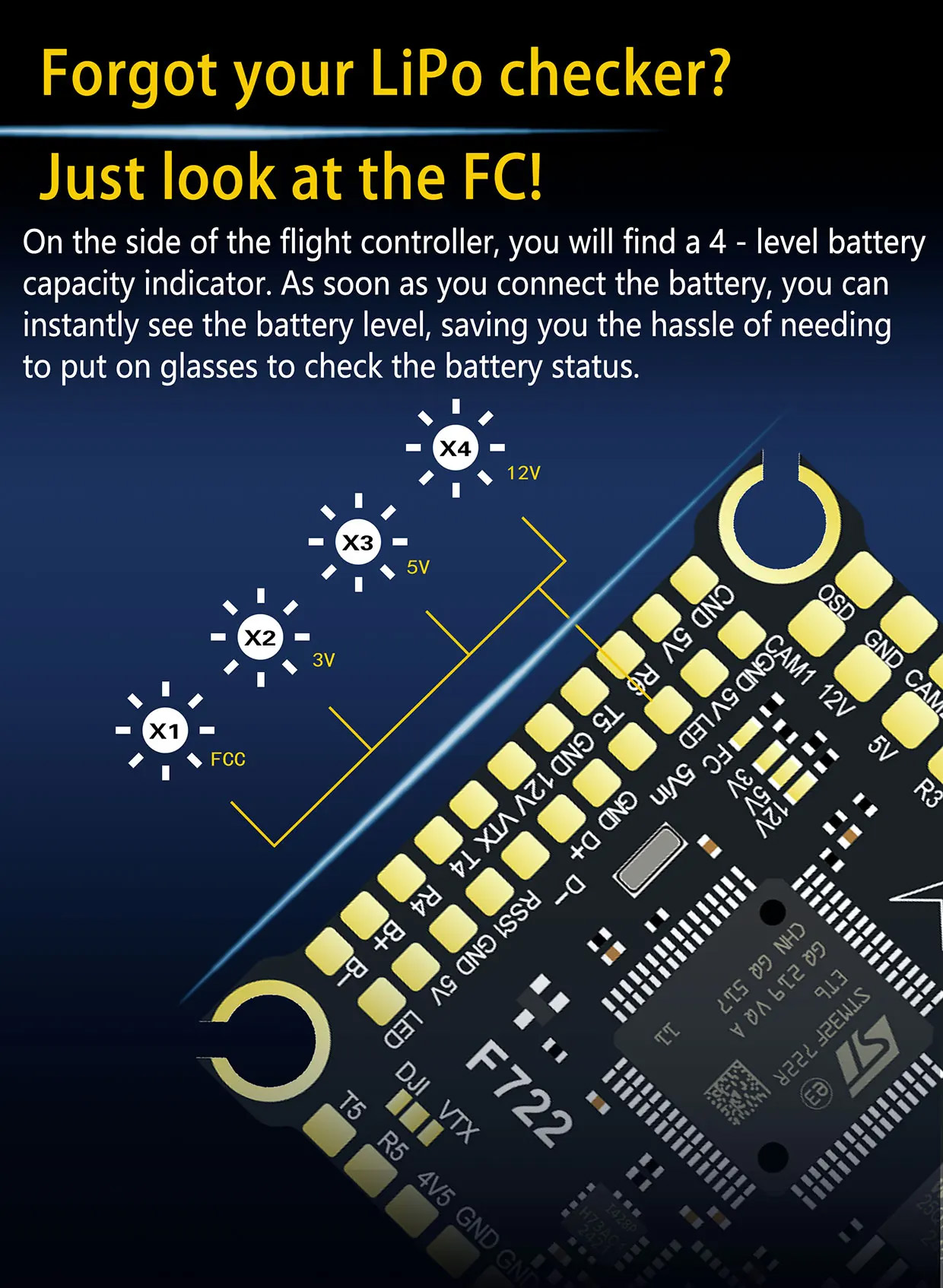

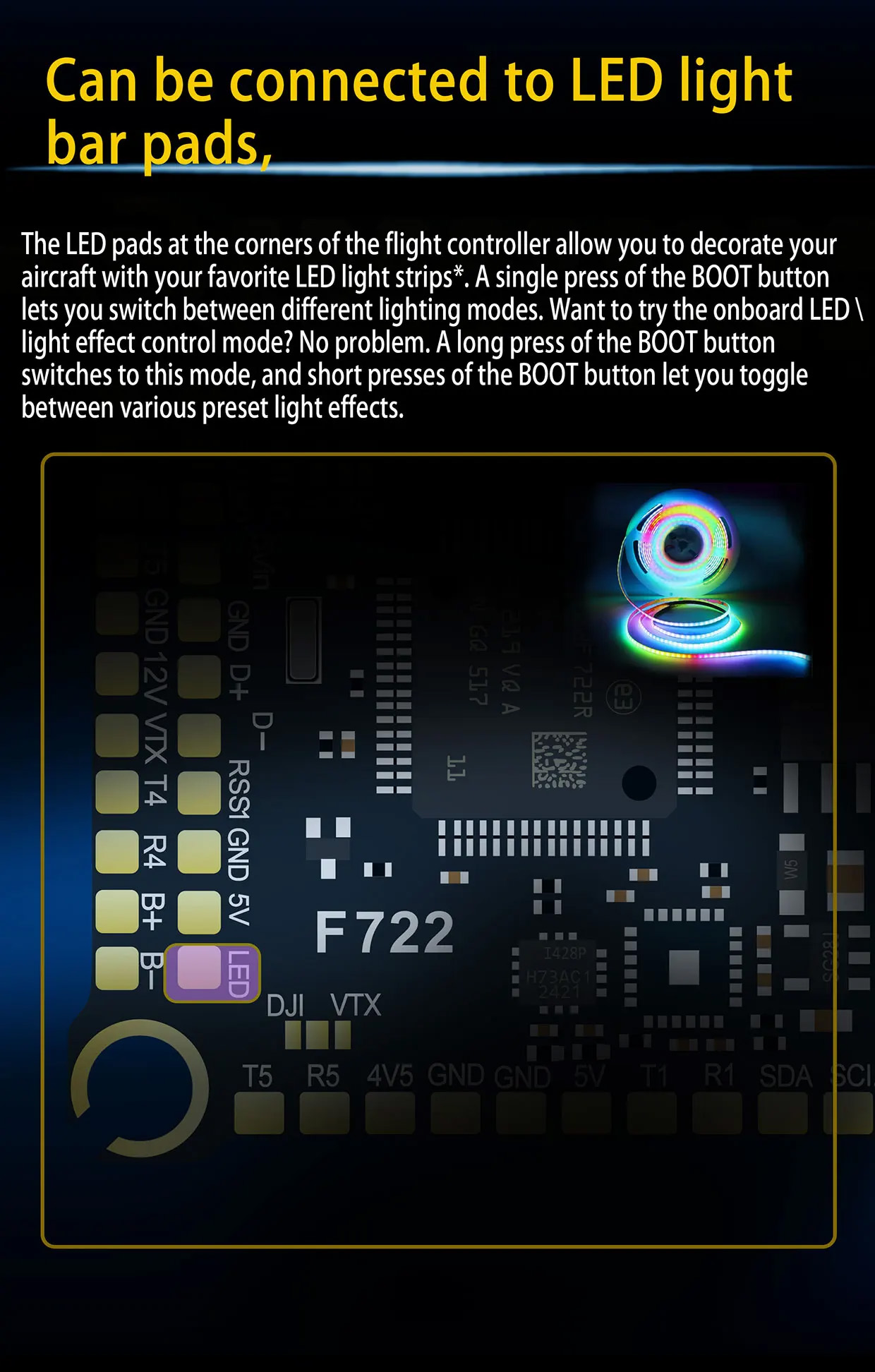

LED Strip: Support X4
Weight: 8g
Buzzer: Support
Dimensions: 36mm × 36mm
Mounting Holes: 30.5mm × 30.5mm
UART: 5CH
Power Output: 3.3V/1A, 5V/2.5A, 12V/3A
Receiver Protocol:
ELRS / CRSF / S.BUS / FrSky / Futaba / Flysky / TBS Crossfire / DSMX

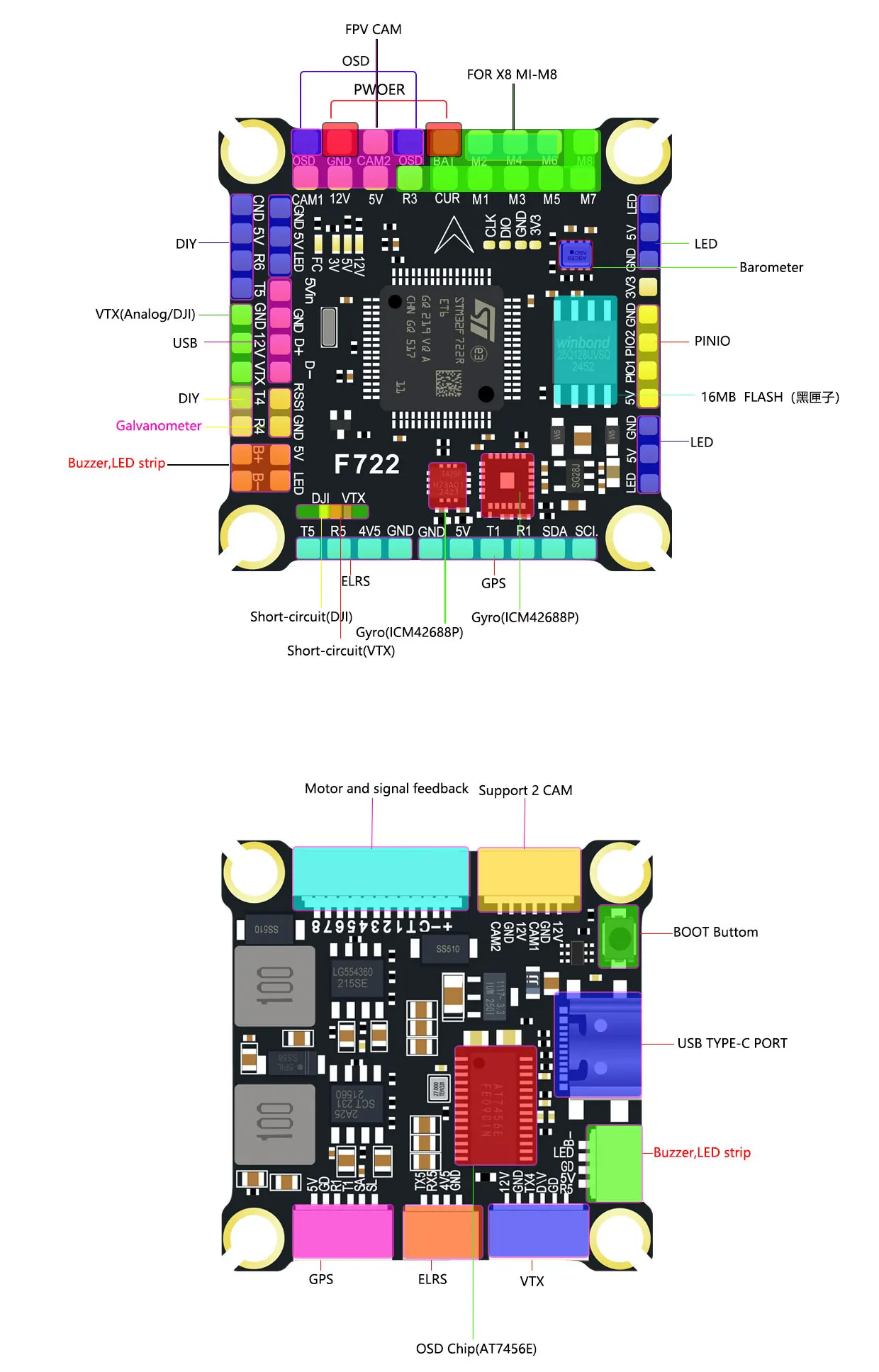

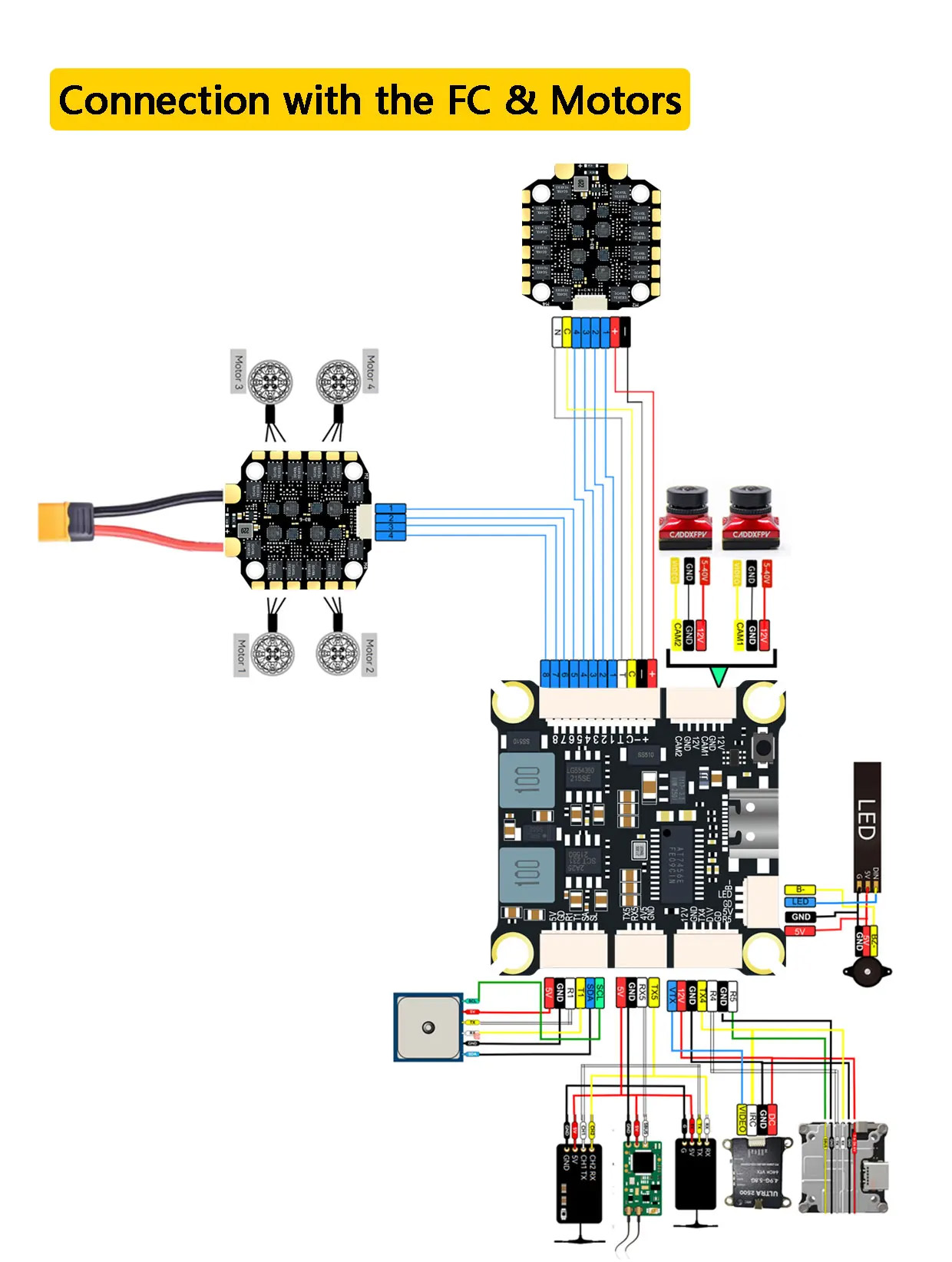

Direct Plug Ports:
Receiver 4P / Analog Camera 3P / Analog VTX 4P / Digital VTX 6P / Brushless ESC 8P
