F405 Y6 FC

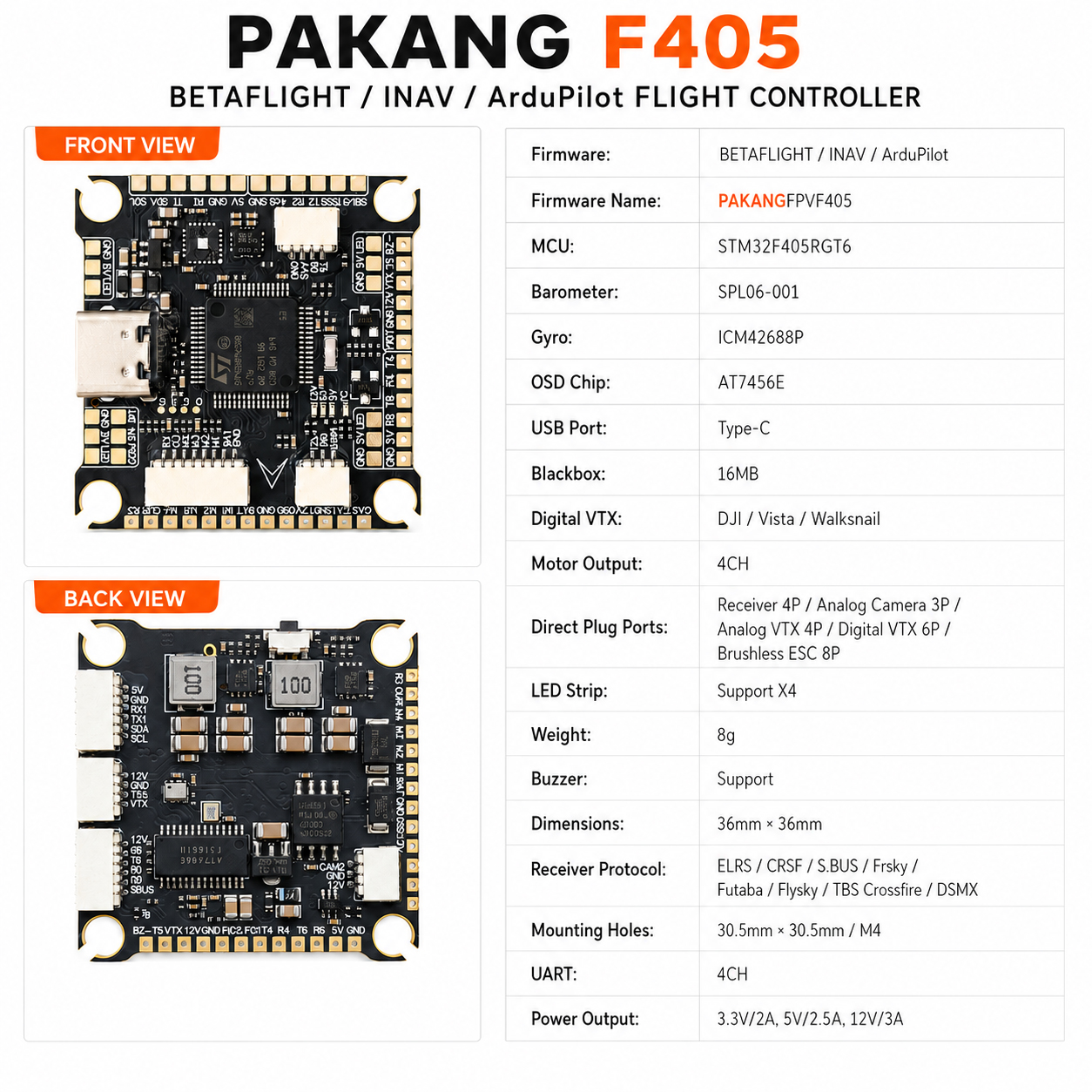

Product Specifications
Product Name: F405 Flight Controller
Firmware: Betaflight / INAV / ArduPilot
MCU: STM32F405RGT6
Barometer: SPL06-001
Gyro: ICM42688P
OSD Chip: AT7456E
USB Port: Type-C
Blackbox: 16MB
Digital VTX: DJI / Vista / Walksnail
Motor Output: 4CH
LED Strip: Support X4
Weight: 8g
Buzzer: Support
Dimensions: 36mm × 36mm
Mounting Holes: 30.5mm × 30.5mm / M4
UART: 4CH
Power Output: 3.3V/2A, 5V/2.5A, 12V/3A
Receiver Protocol:
ELRS / CRSF / S.BUS / FrSky / Futaba / Flysky / TBS Crossfire / DSMX
Direct Plug Ports:
Receiver 4P / Analog Camera 3P / Analog VTX 4P / Digital VTX 6P / Brushless ESC 8P
