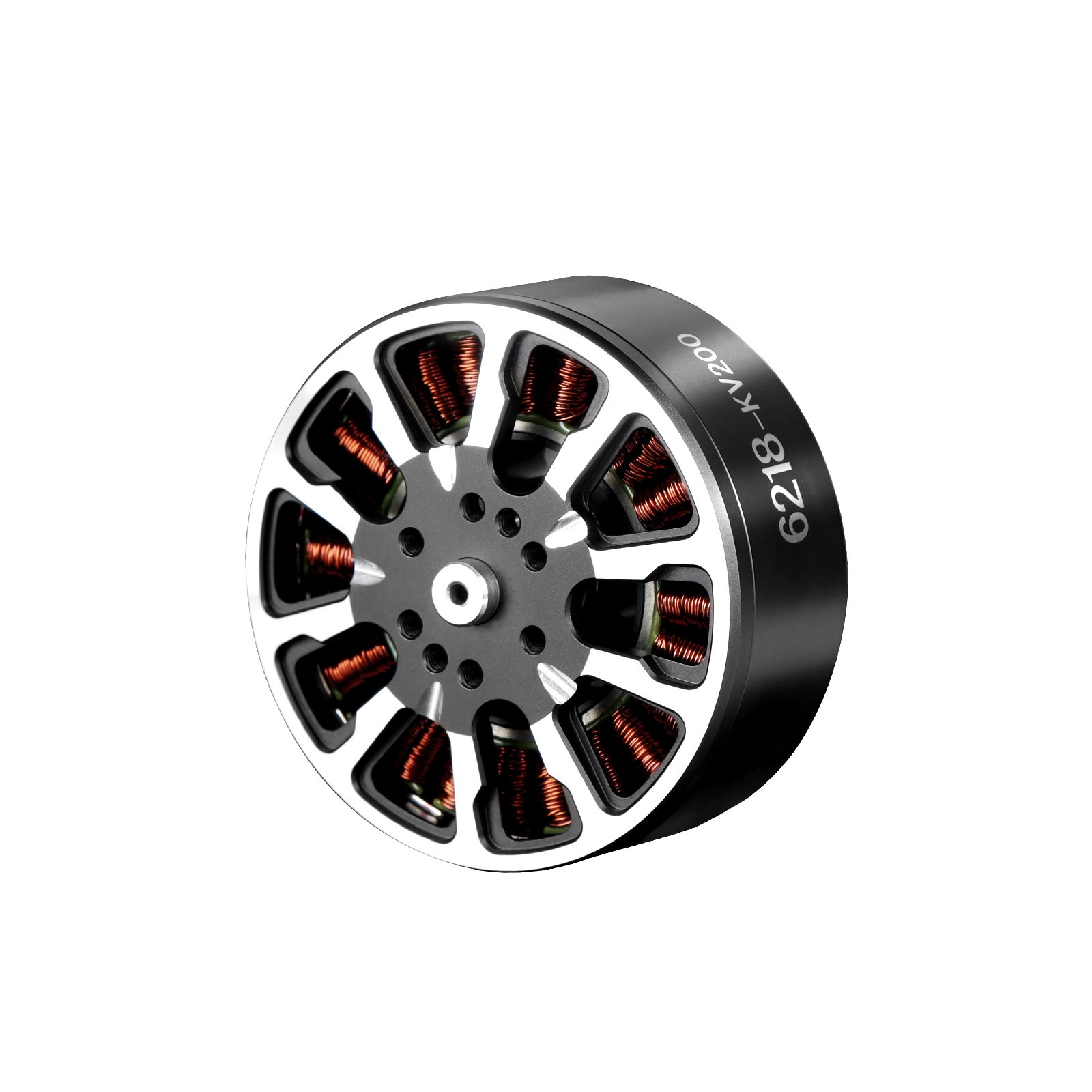

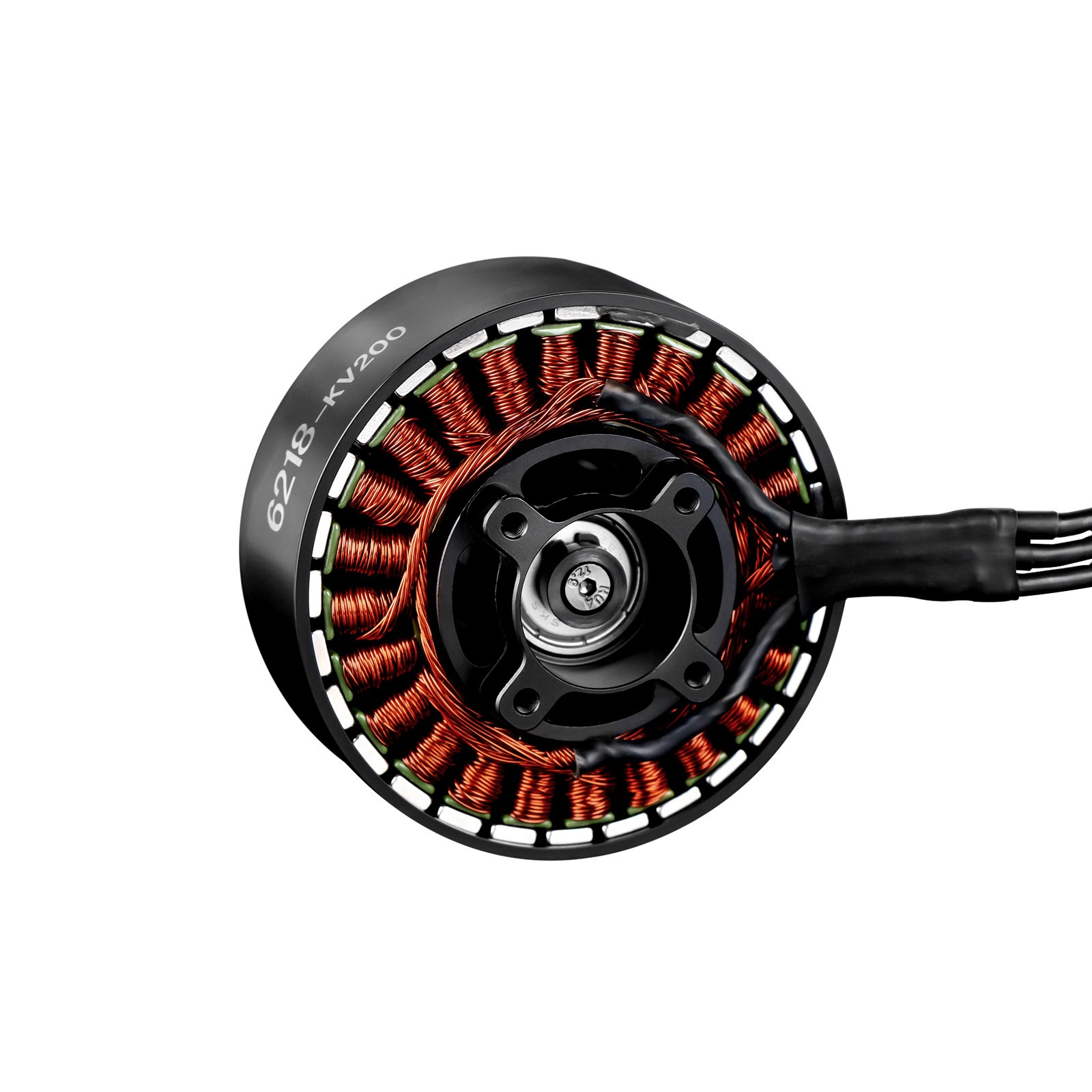

6218 kv200

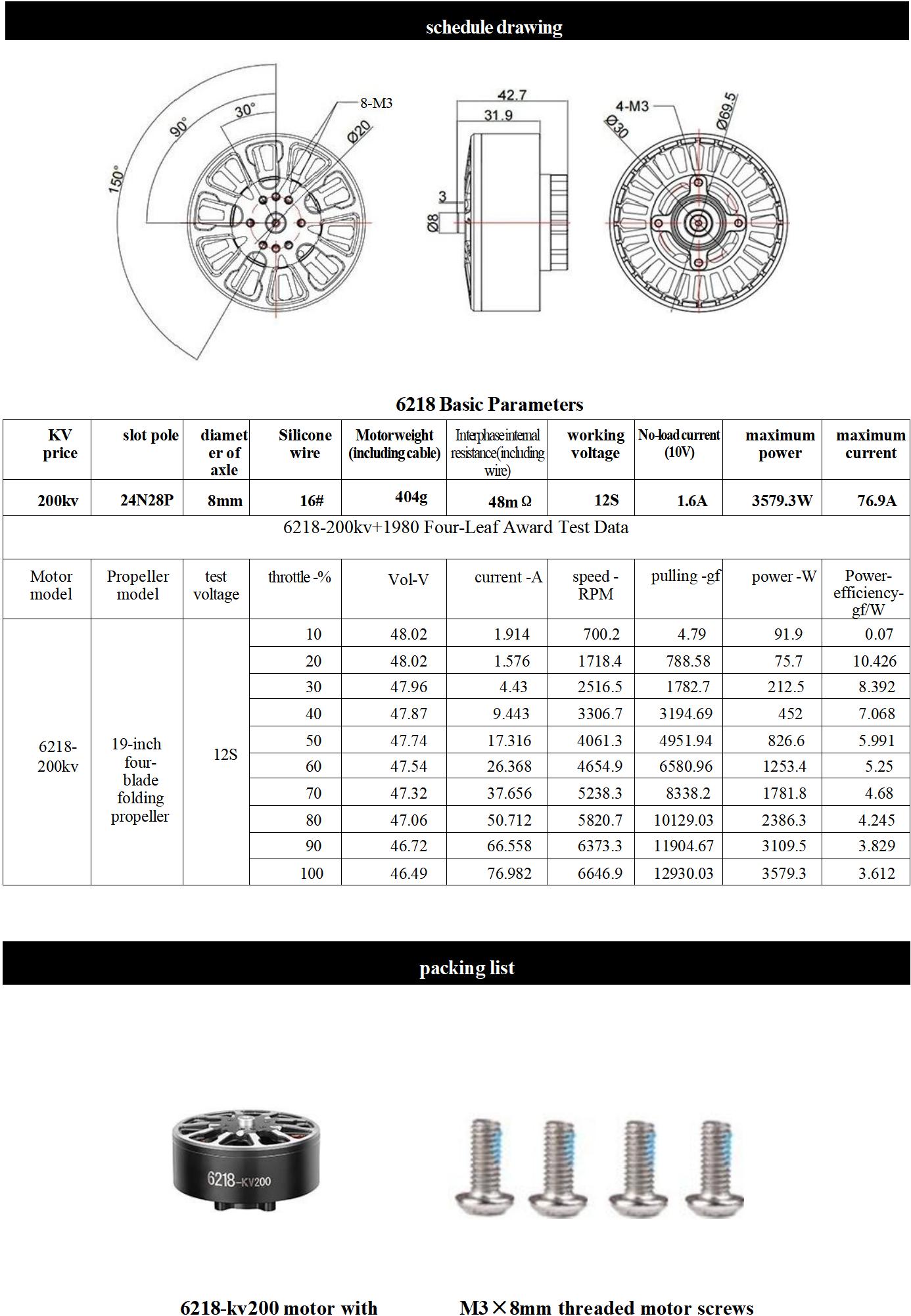

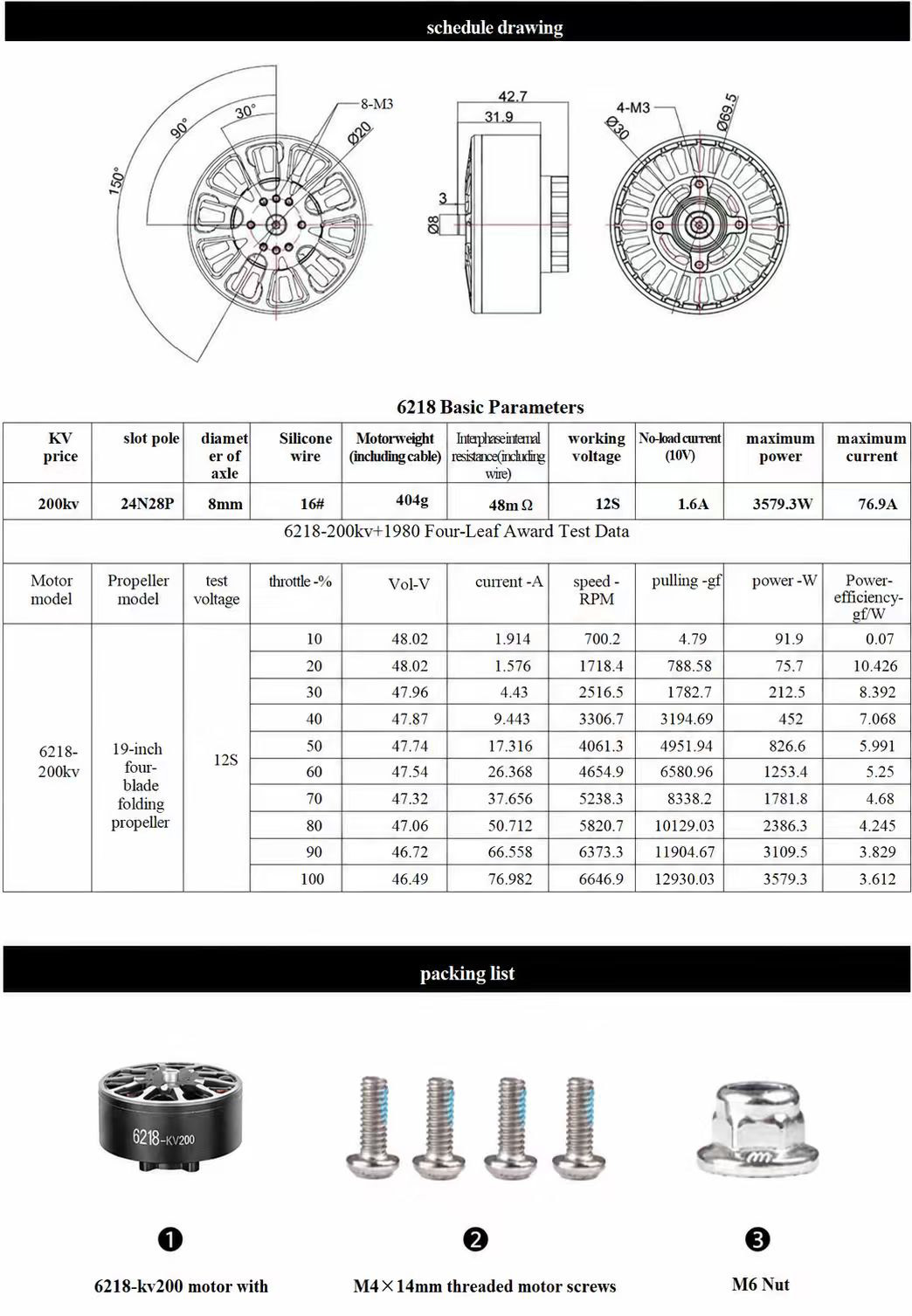

Stator Diameter: Ø69.5 mm
Total Height: 42.7 mm
Shaft Thread: M6
Mounting Pattern: 30×30 mm (4-M3)
KV Value: 200
Configuration (Slots/Poles): 24N28P
Shaft Diameter: 8 mm
Silicone Wire: 16#

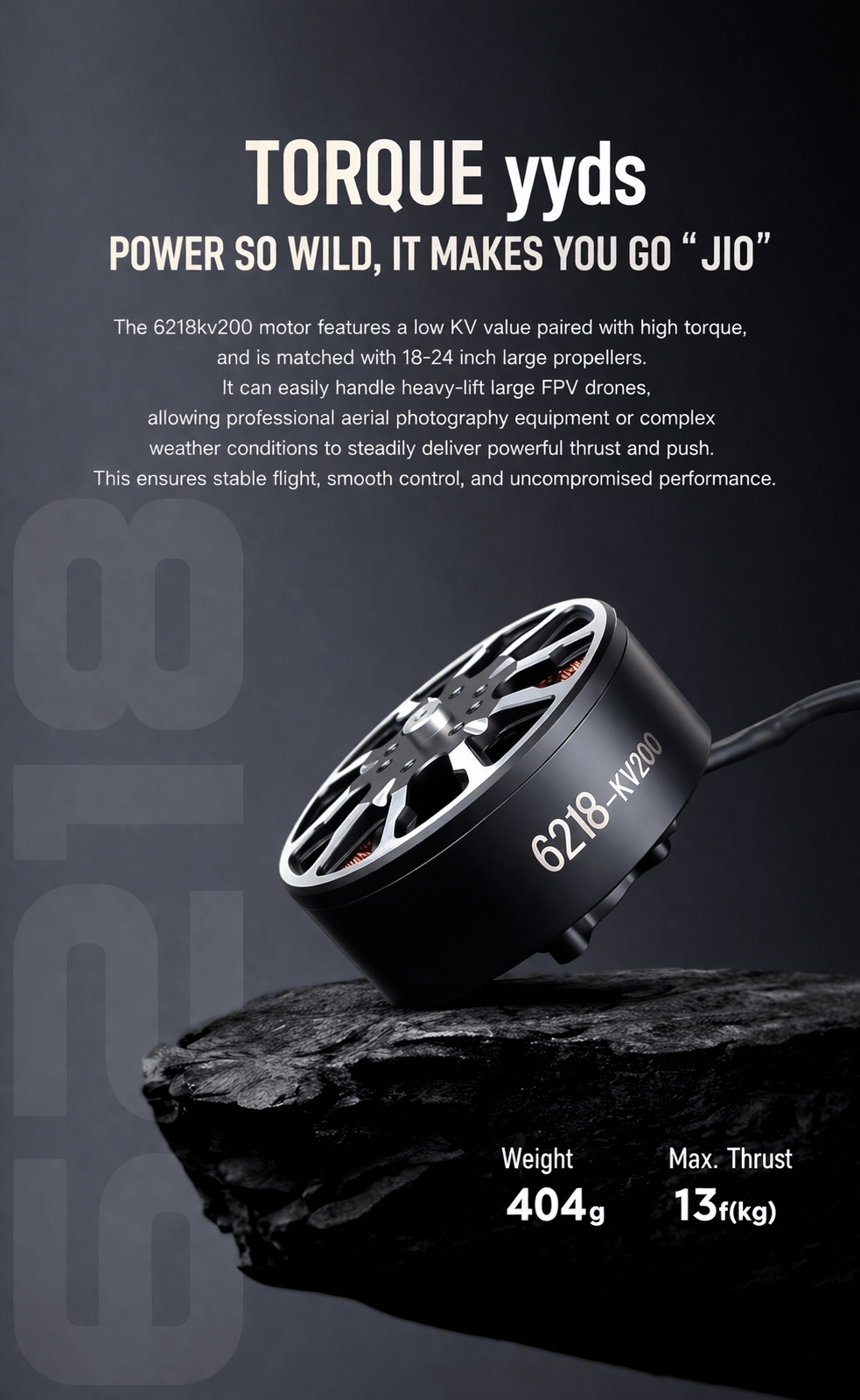

Motor Weight (including cable): 404 g
Phase Terminal Resistance (including cable): 48 mΩ
Working Voltage: 12S (Lipo)
No-Load Current (10V): 1.6 A
Maximum Power: 3579.3 W
Maximum Current: 76.98
