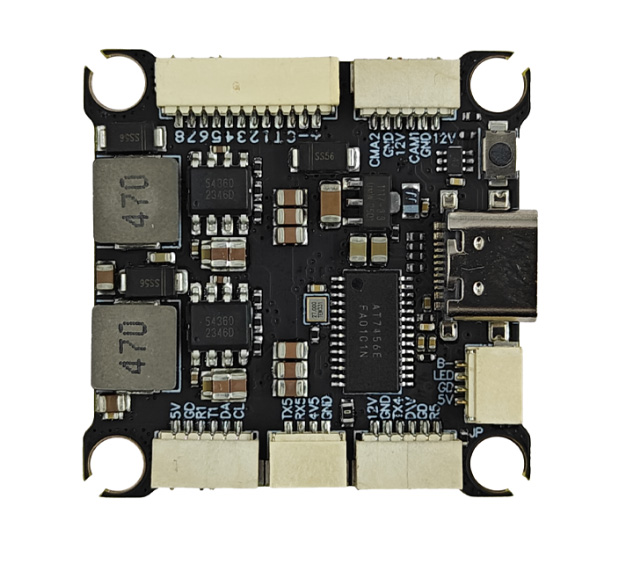

H743 FC

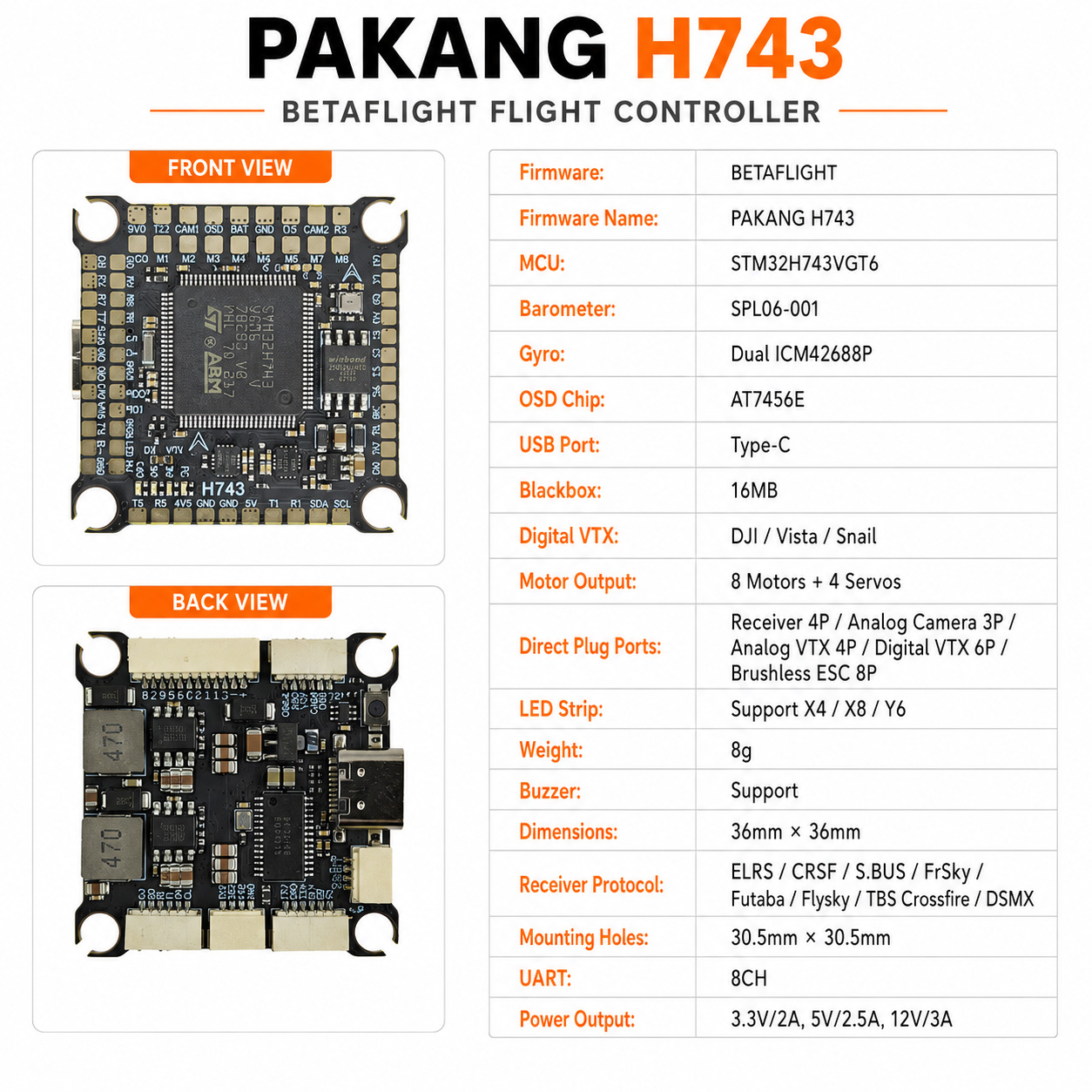

Product Specifications
Product Name: PAKANG H743 Flight Controller
Firmware: Betaflight
Firmware Name: PAKANG H743
MCU: STM32H743VGT6

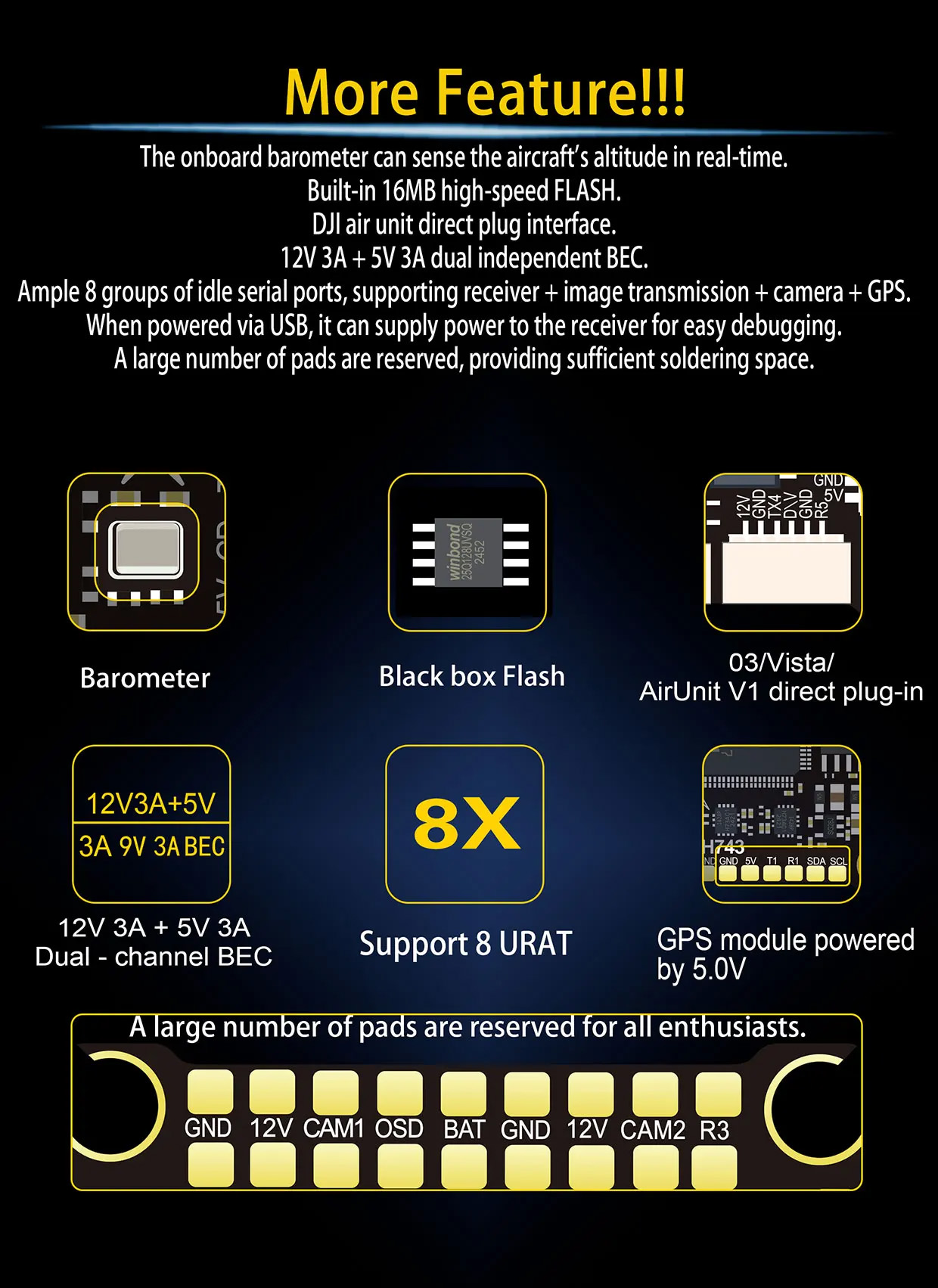

Barometer: SPL06-001

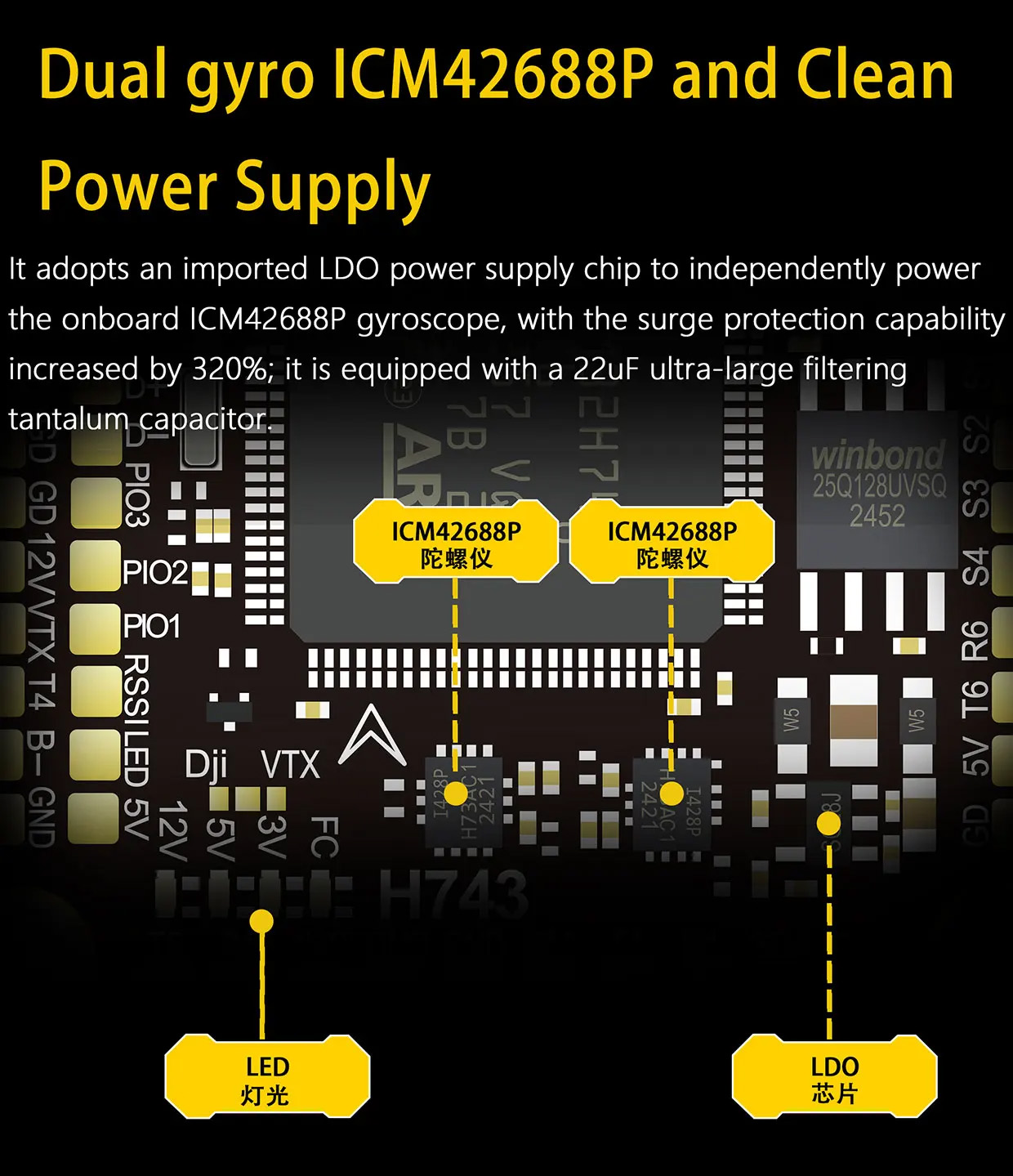

Gyro: Dual ICM42688P
OSD Chip: AT7456E
USB Port: Type-C

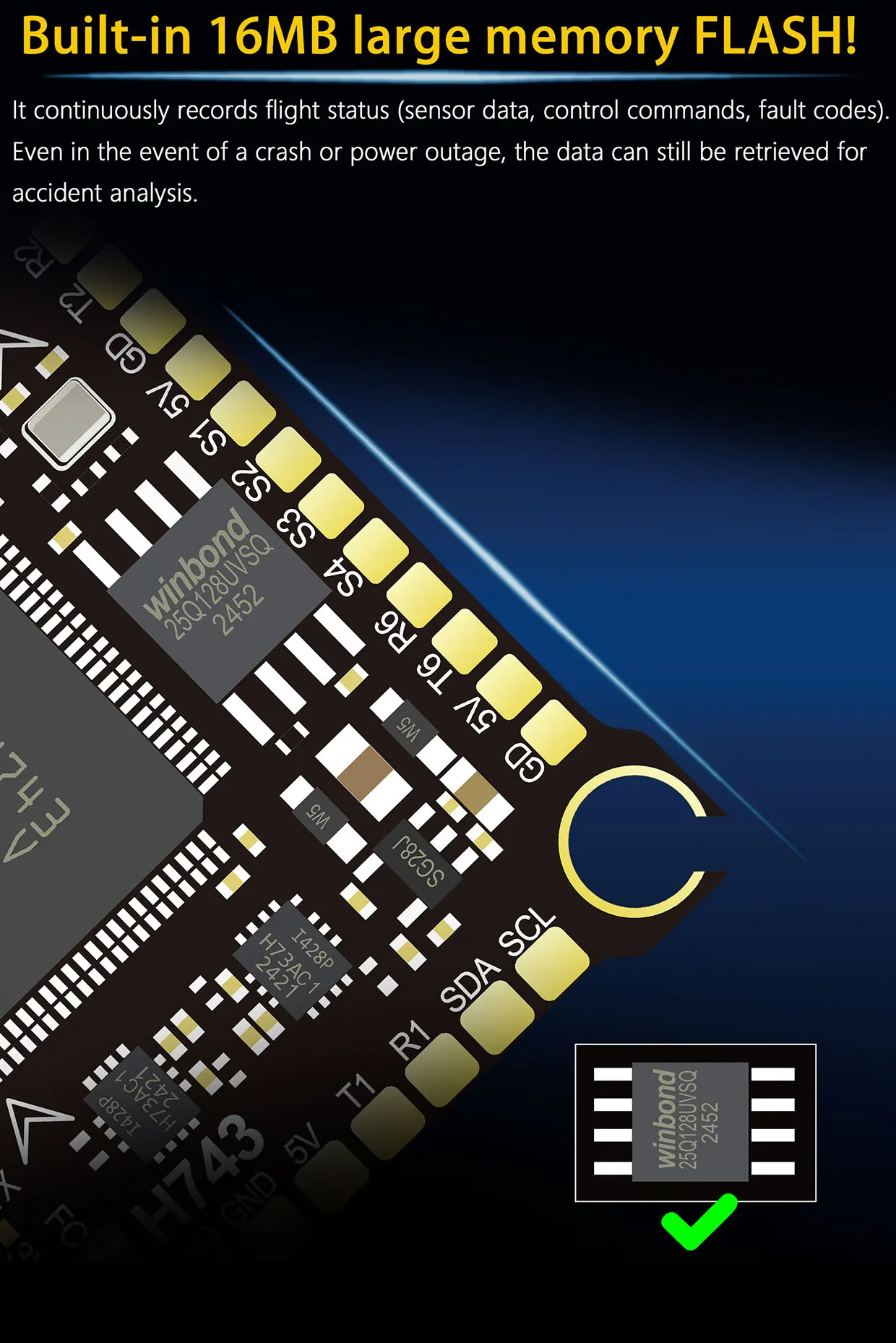

Blackbox: 16MB
Digital VTX: DJI / Vista / Snail

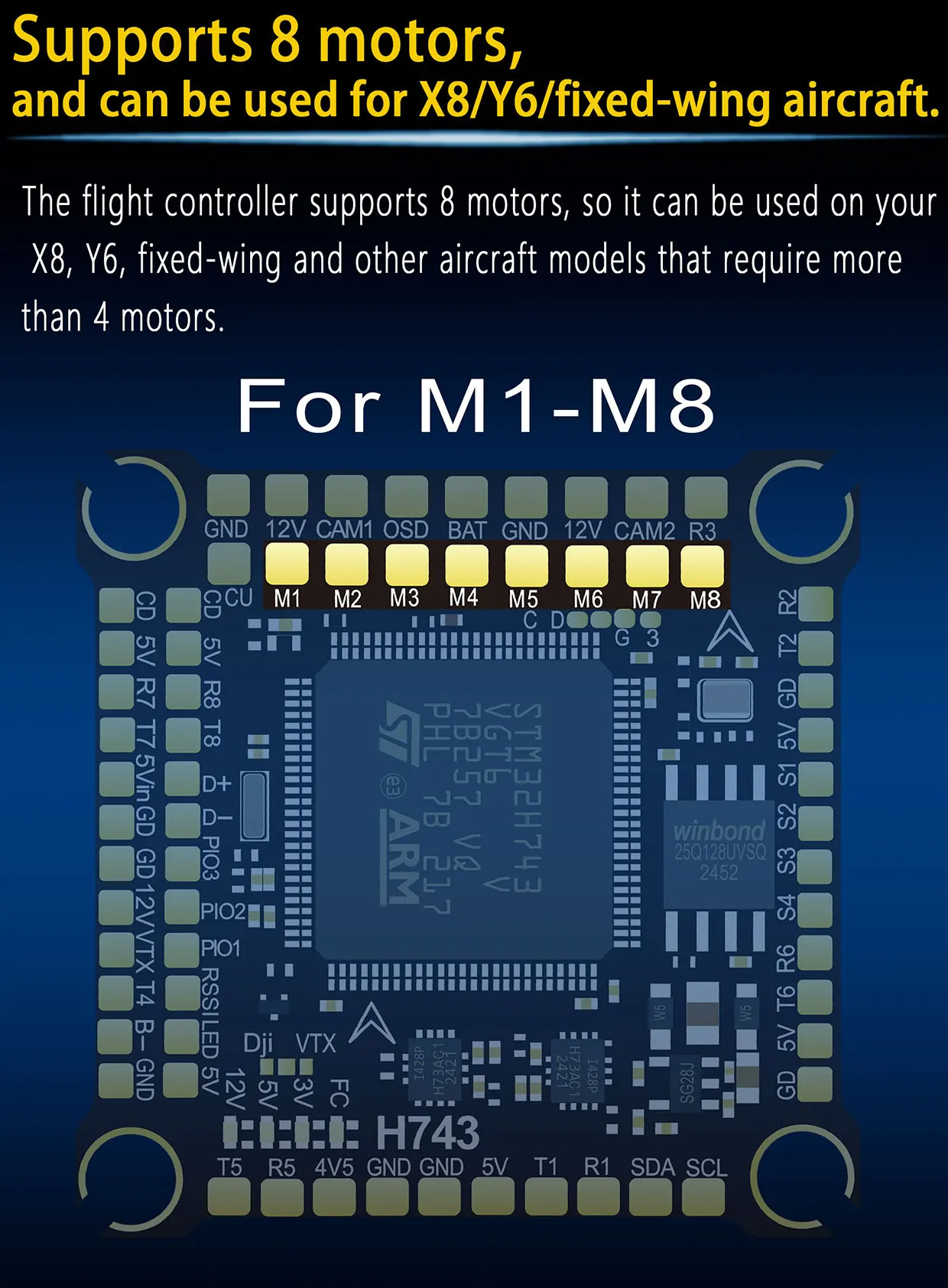

Motor Output: 8 Motors + 4 Servos

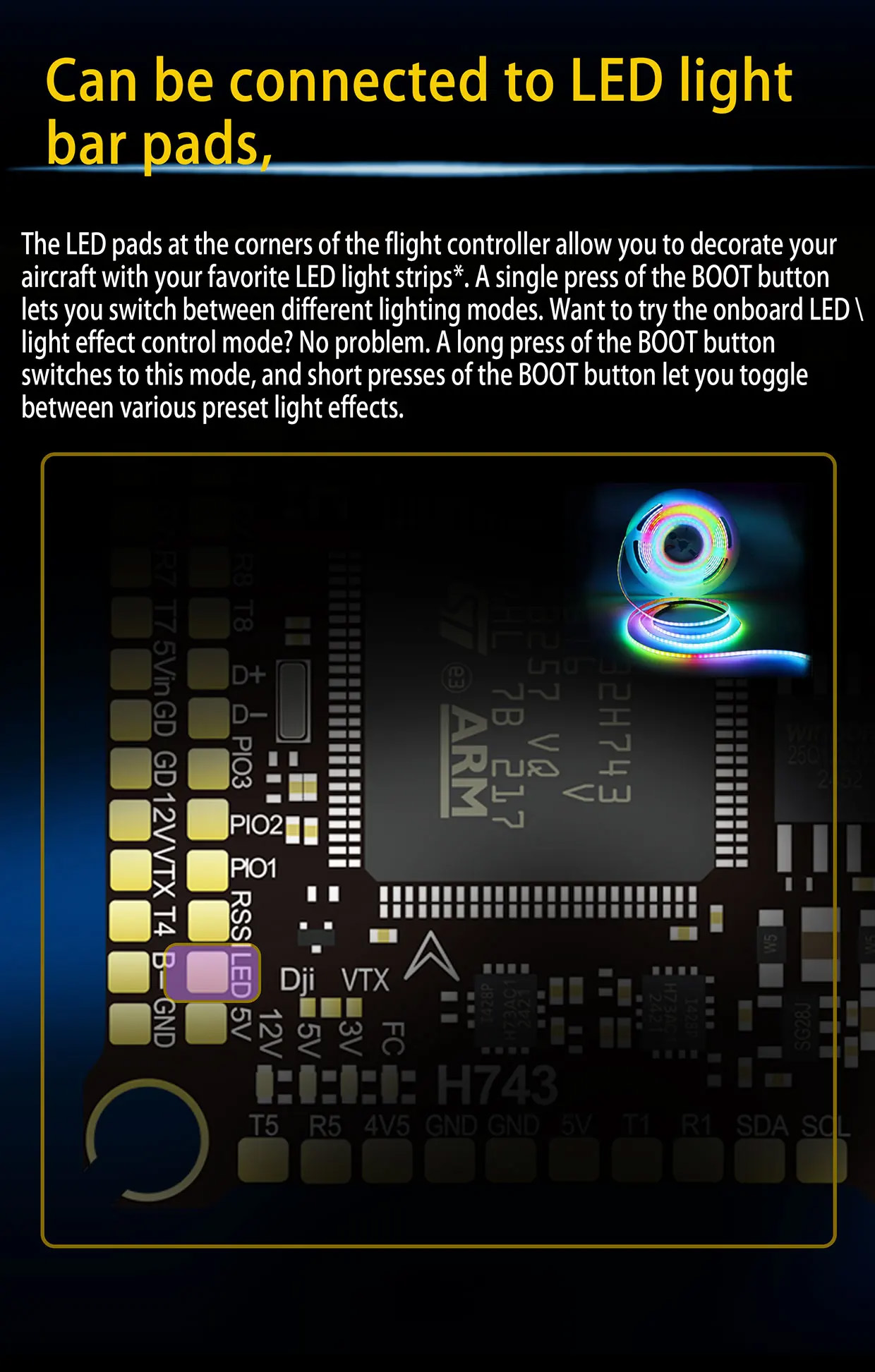

LED Strip: Support X4 / X8 / Y6
Weight: 8g
Buzzer: Support
Dimensions: 36mm × 36mm
Mounting Holes: 30.5mm × 30.5mm
UART: 8CH
Power Output: 3.3V/2A, 5V/2.5A, 12V/3A
Receiver Protocol:
ELRS / CRSF / S.BUS / FrSky / Futaba / Flysky / TBS Crossfire / DSMX

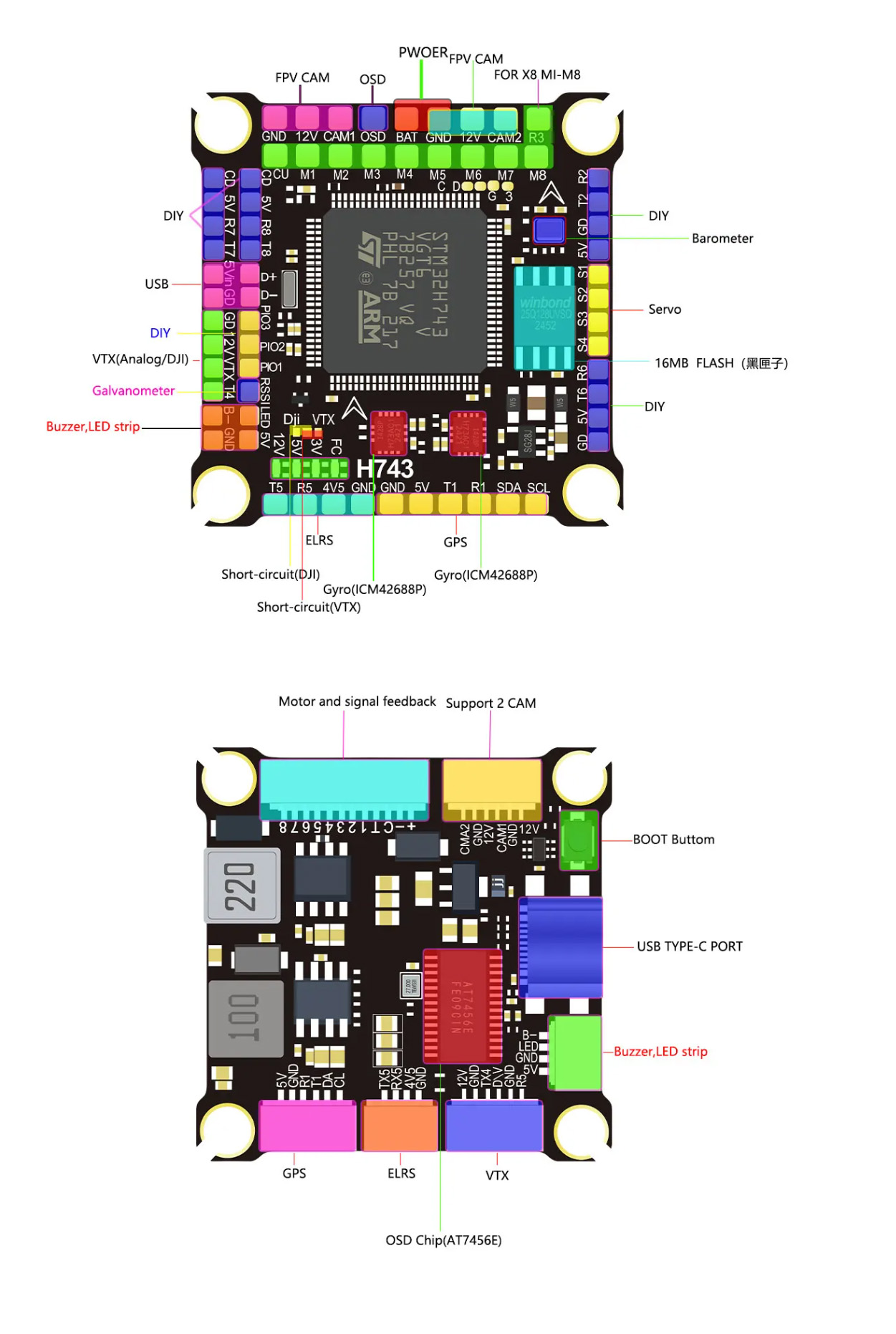

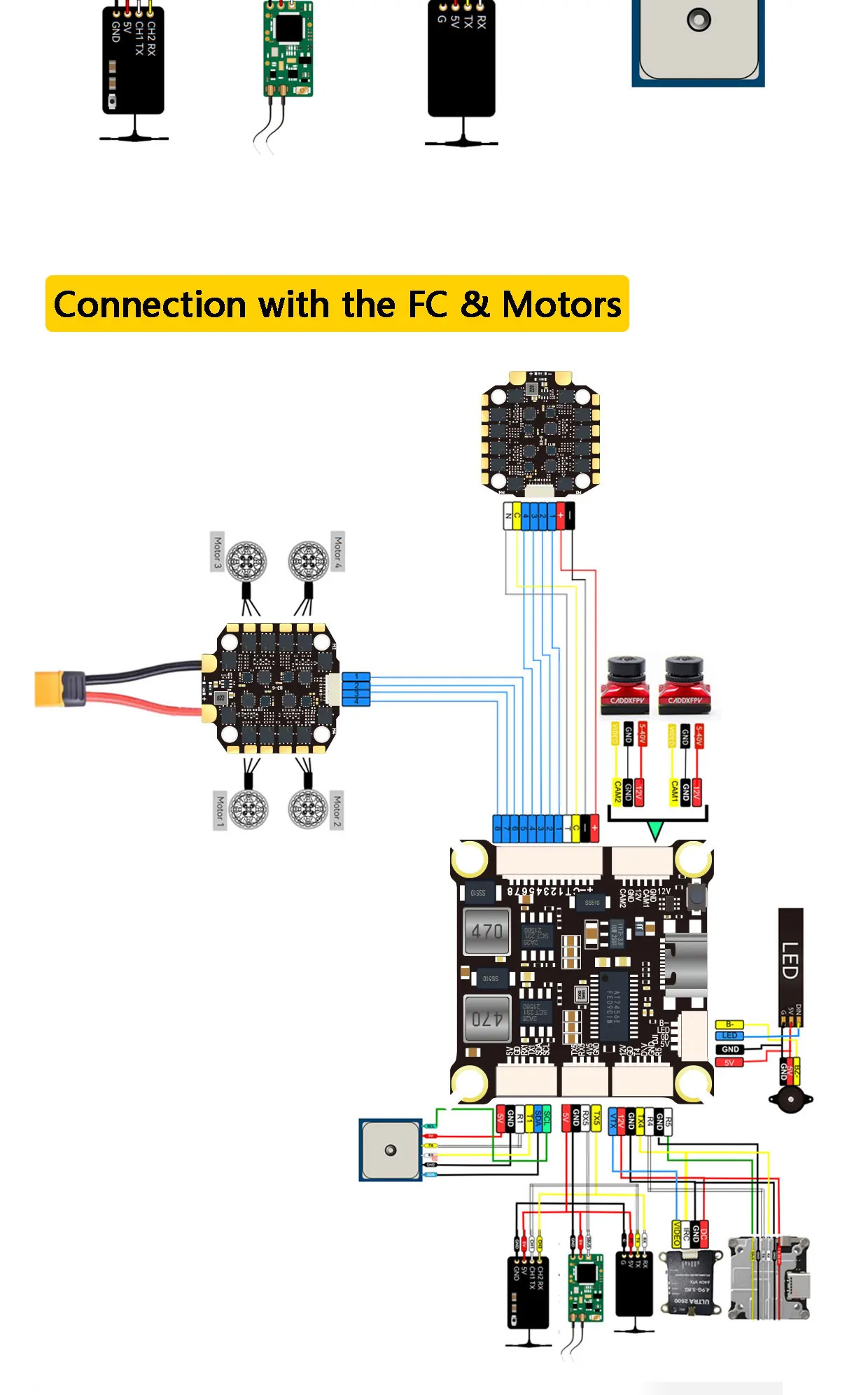

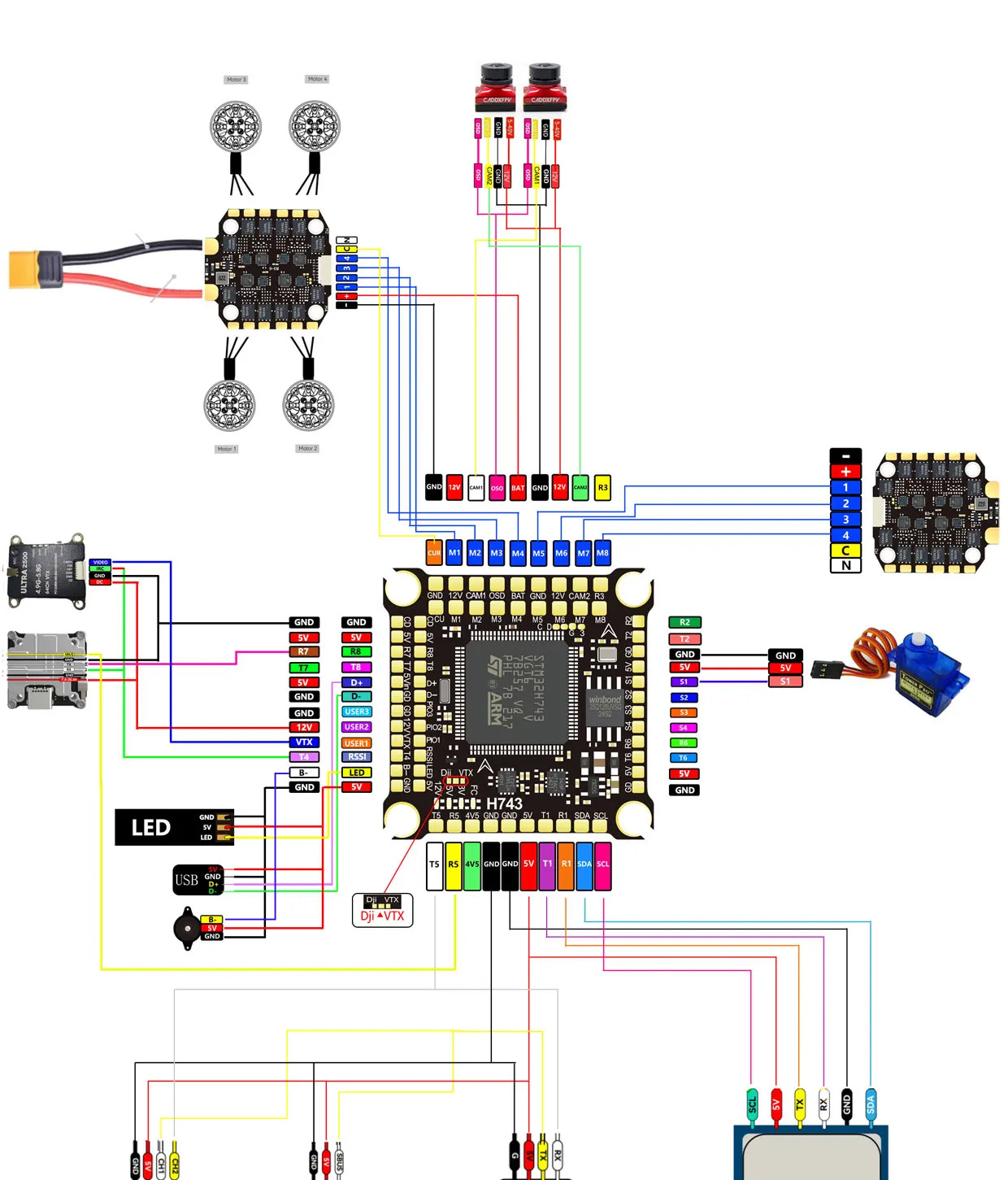

Direct Plug Ports:
Receiver 4P / Analog Camera 3P / Analog VTX 4P / Digital VTX 6P / Brushless ESC 8P
