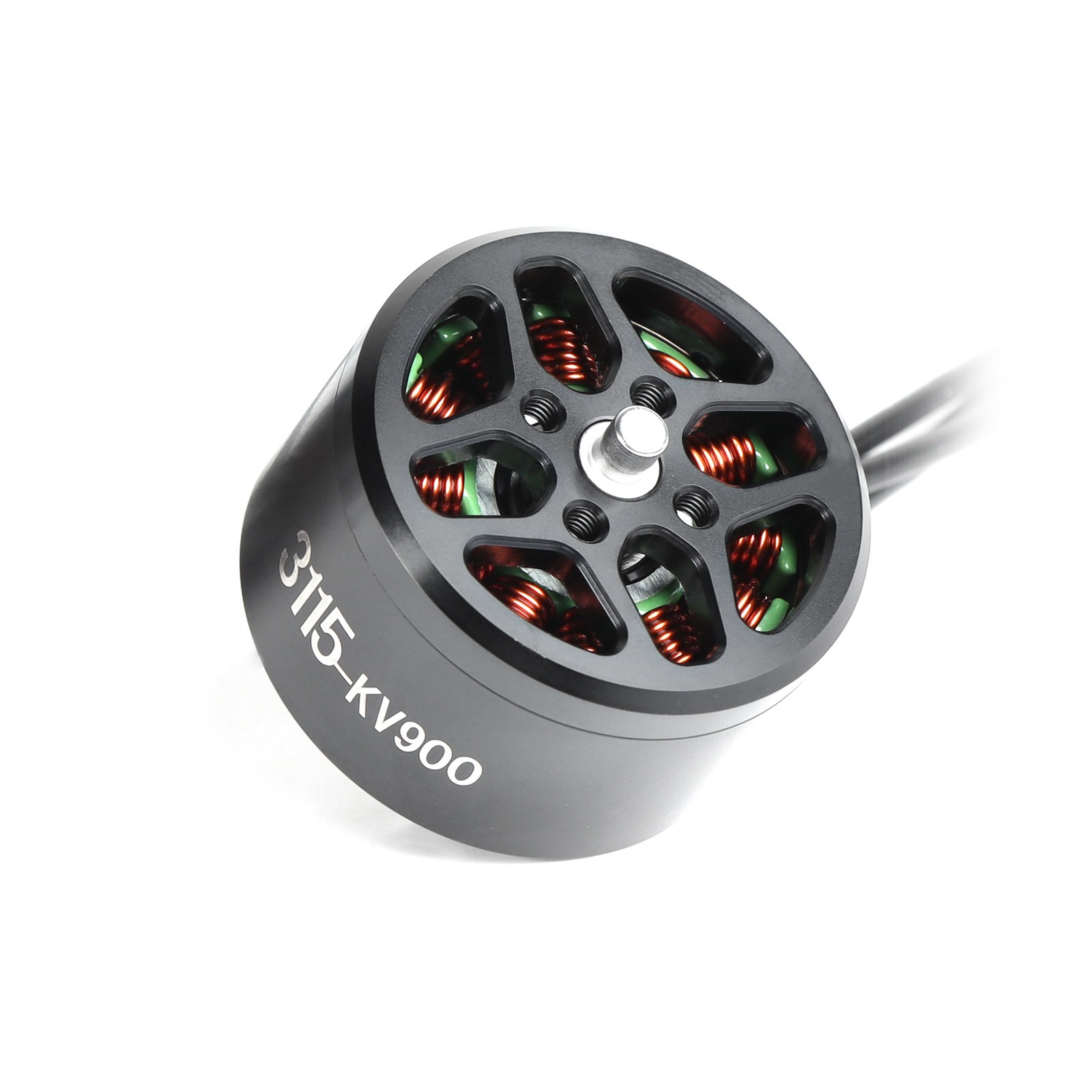

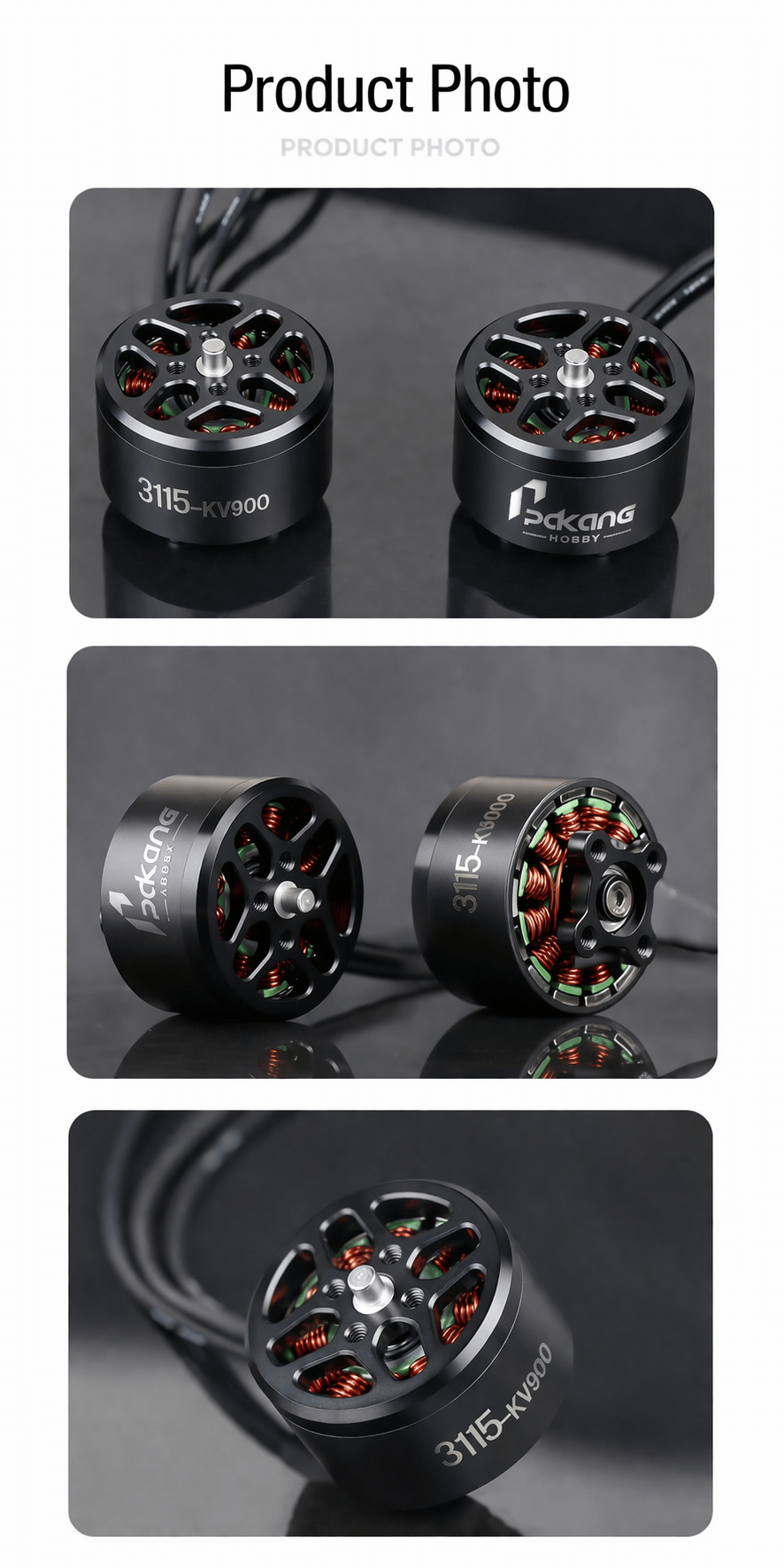

3115 kv900

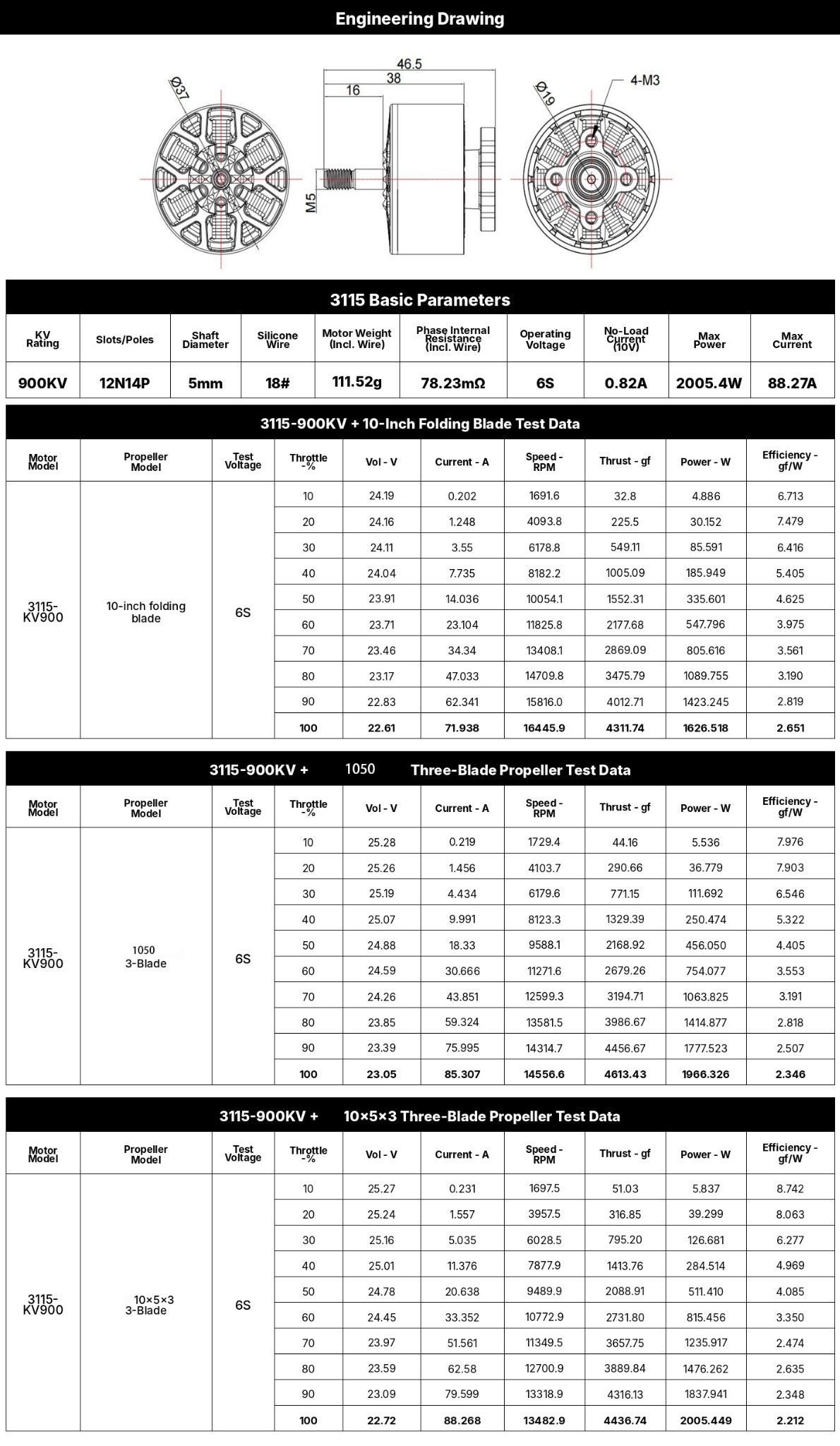

Stator Diameter: Ø37 mm
Total Height: 46.5 mm
Shaft Thread: M5
Mounting Pattern: 16×16 mm (4-M3)
KV Value: 900
Configuration (Slots/Poles): 12N14P
Shaft Diameter: 5 mm
Silicone Wire: 18#

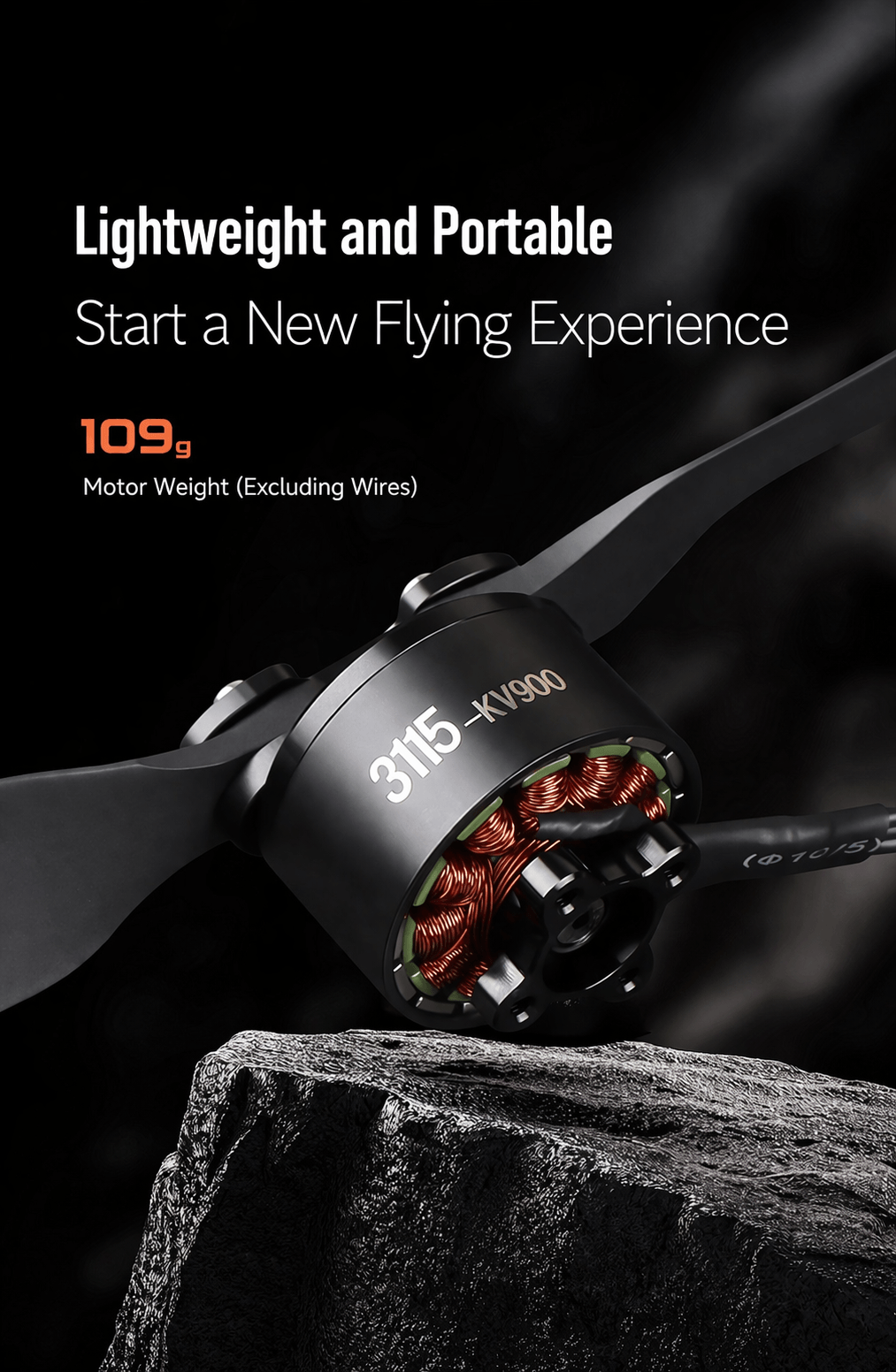

Motor Weight (including cable): 111.52 g
Phase Terminal Resistance (including cable): 78.23 mΩ
Working Voltage: 6S (Lipo)
No-Load Current (10V): 0.82 A
Maximum Power: 2005.4 W
Maximum Current: 88.27 A
