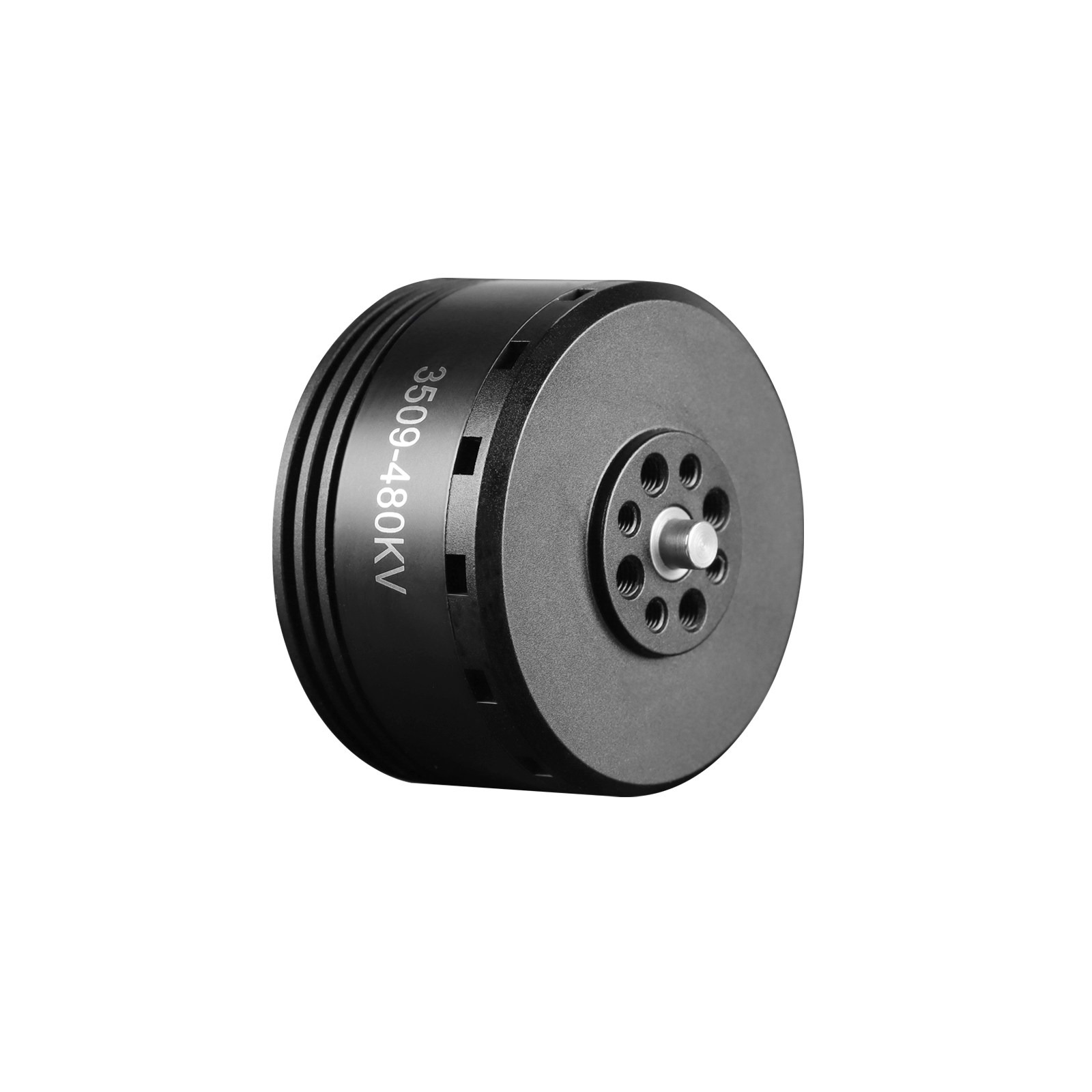

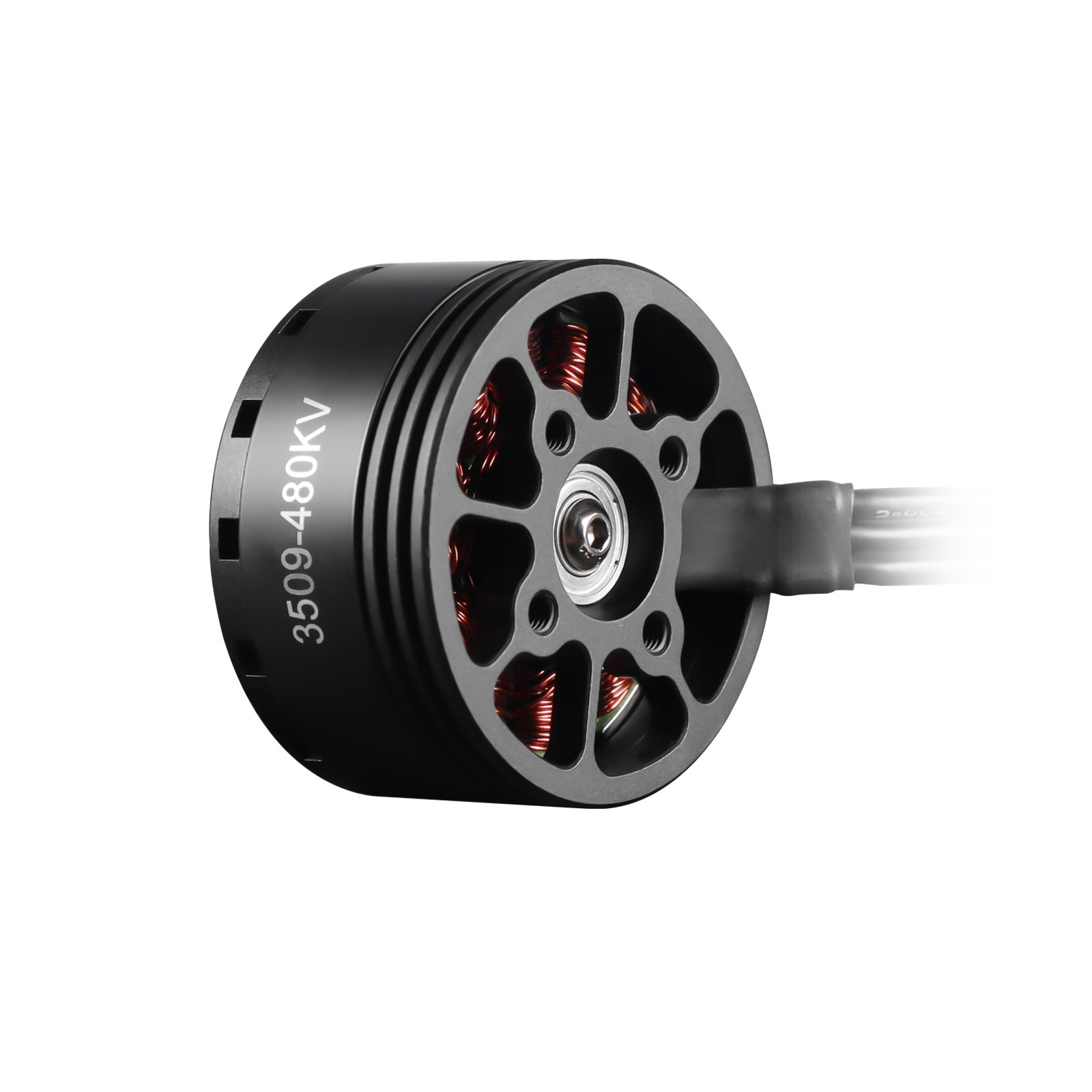

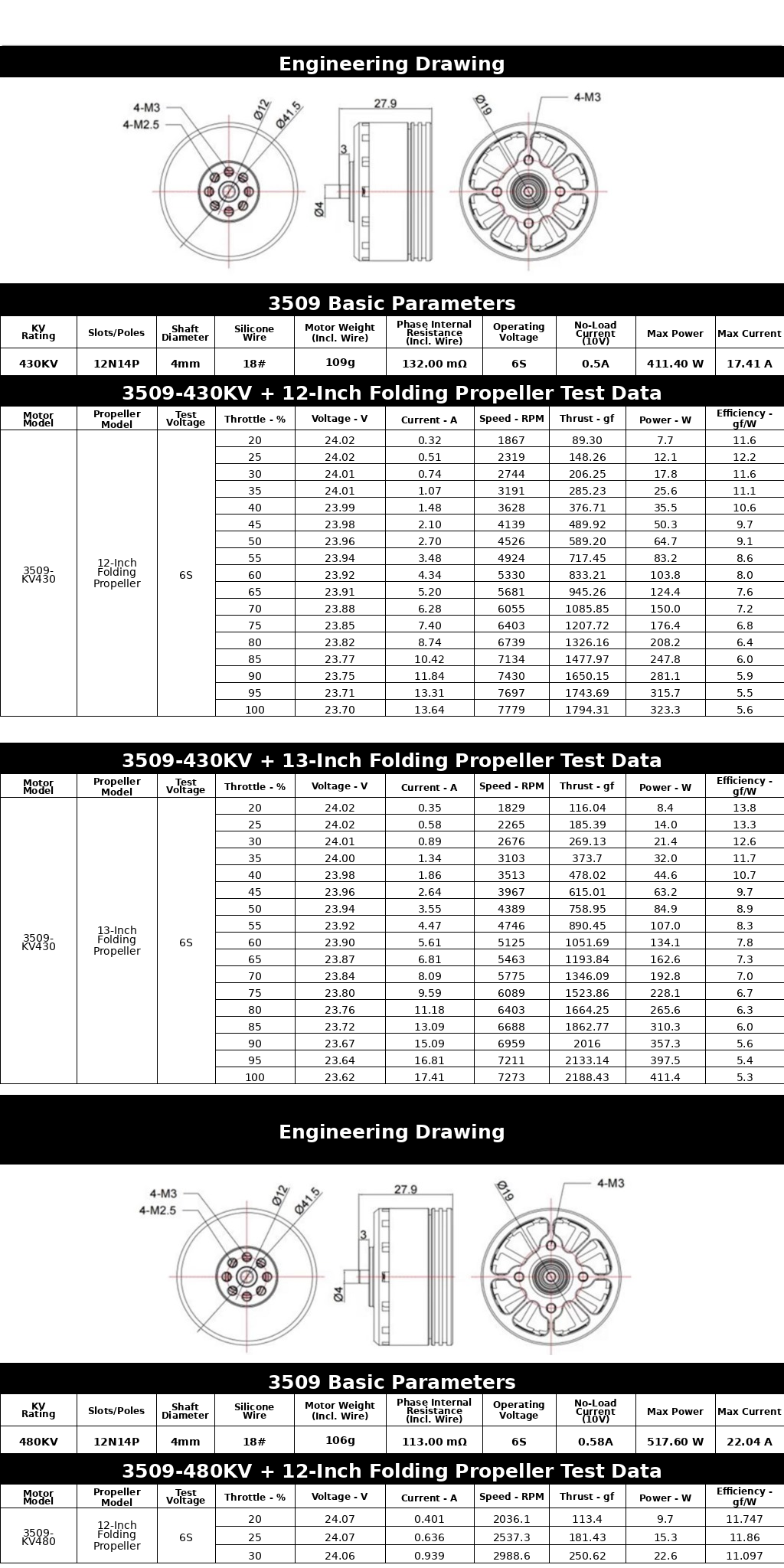

3509 kv480
Outer Diameter: Ø41.5 mm
Total Height: 27.9 mm
Shaft Diameter: Ø4 mm
Mounting Pattern: Ø19 mm (4-M3)
Auxiliary Pattern: Ø12 mm (4-M2.5)
KV Value: 430

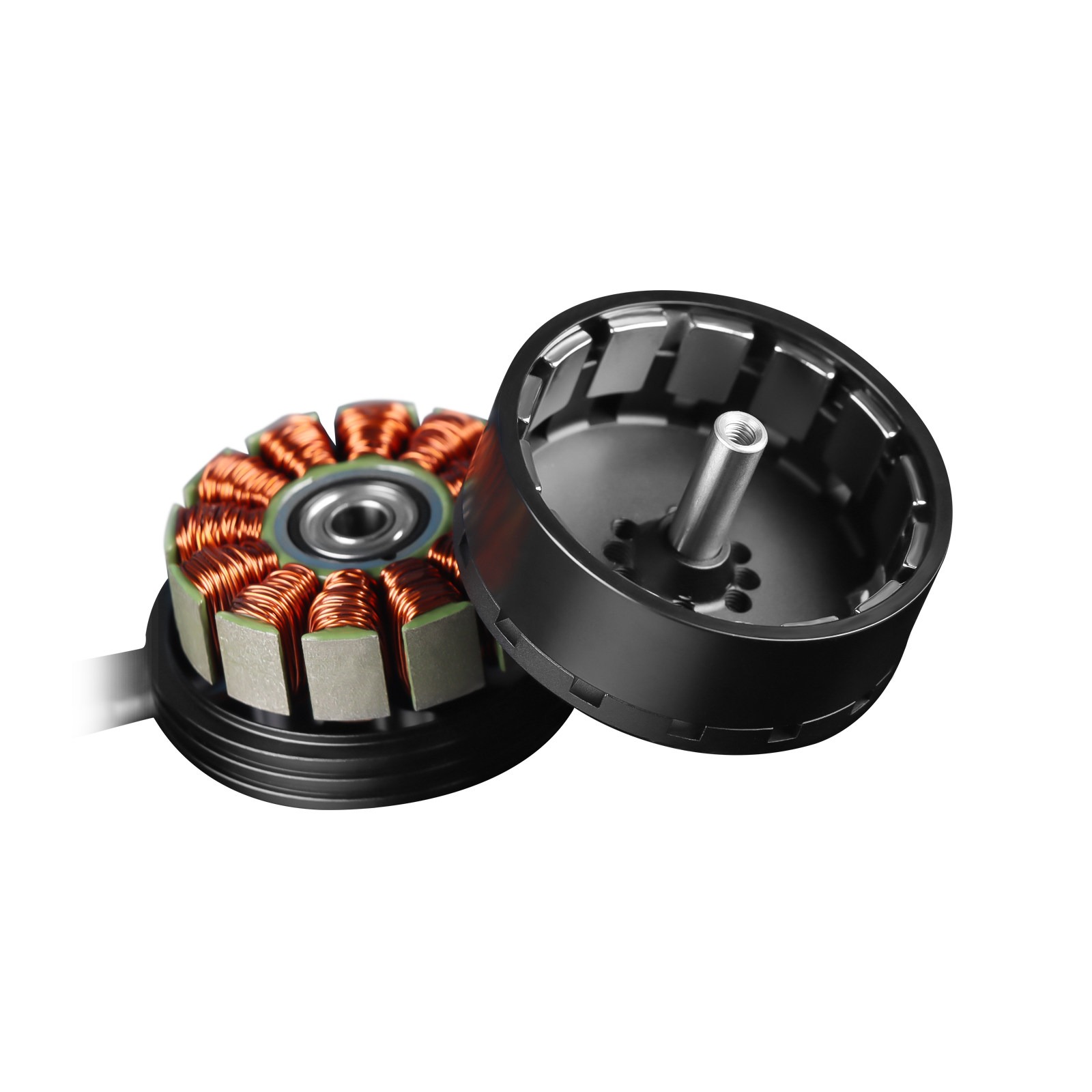

Configuration (Slots/Poles): 12N14P
Shaft Diameter: 4 mm
Silicone Wire: 18#
Motor Weight (including cable): 109 g
Phase Terminal Resistance (including cable): 132.00 mΩ
Working Voltage: 6S
No-Load Current (10V): 0.5 A
Maximum Power: 411.40 W
Maximum Current: 17.41 A
