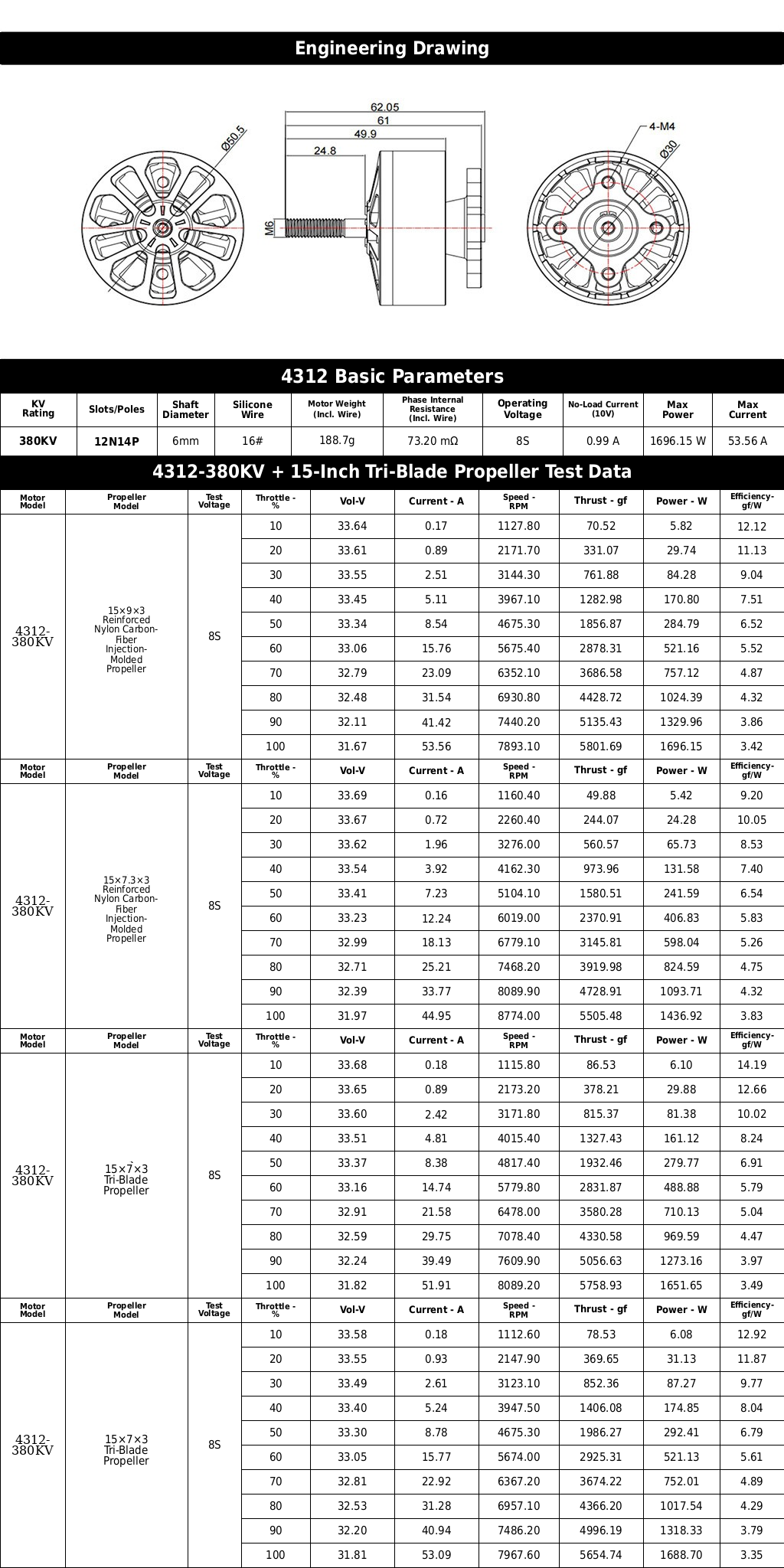

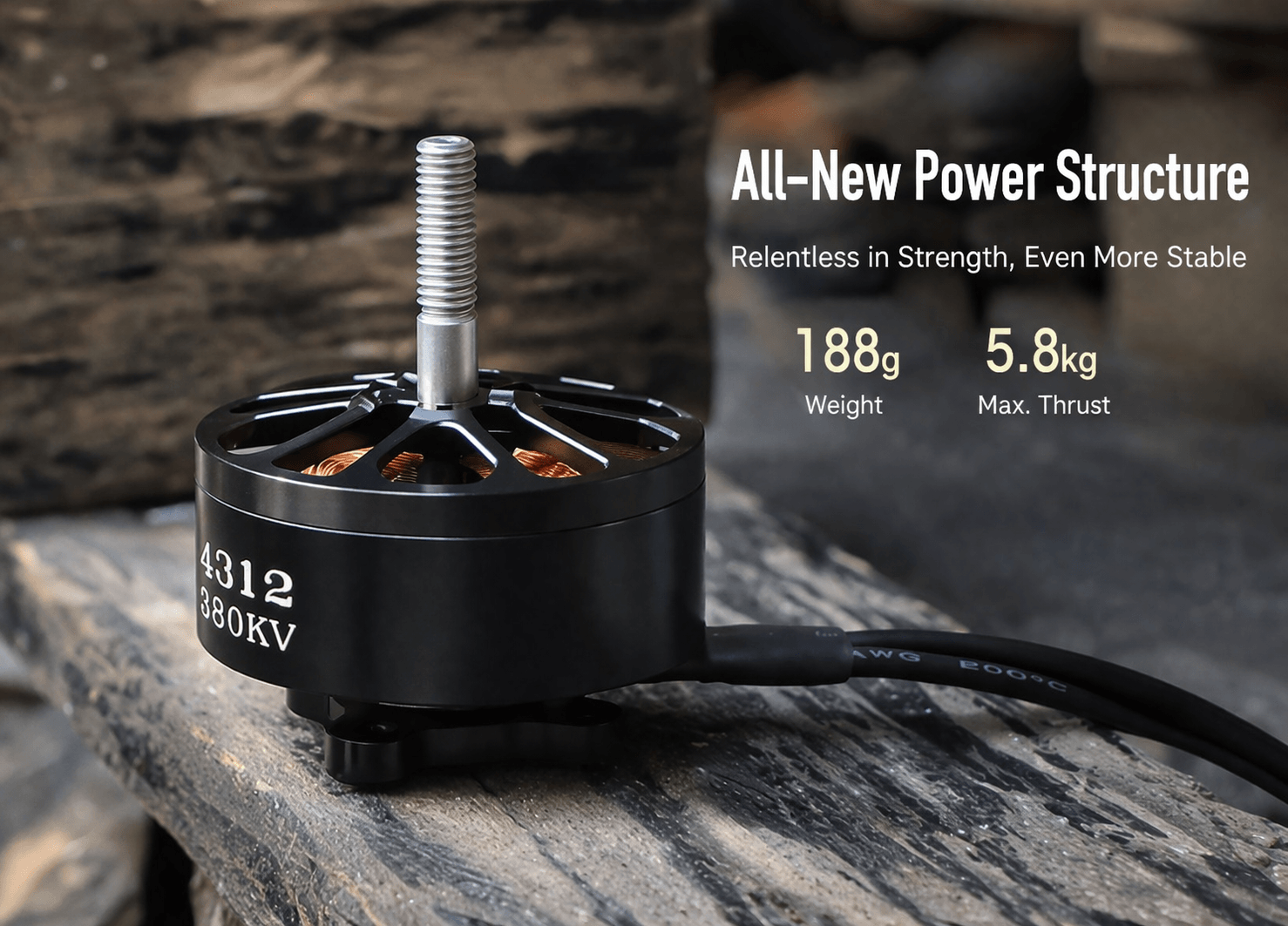

4312 kv380
Stator Diameter: Ø50.5 mm
Total Height: 62.05 mm
Shaft Thread: M3
Mounting Pattern: 30×30 mm (4-M4)
KV Value: 380
Configuration (Slots/Poles): 12N14P
Shaft Diameter: 6 mm
Silicone Wire: 16#
Motor Weight (including cable): 175 g
Phase Terminal Resistance (including cable): 43.5 mΩ
Working Voltage: 8S-12S (Lipo)
No-Load Current (10V): 1.55 A
Maximum Power: 3949.4 W
Maximum Current: 84.16 A
