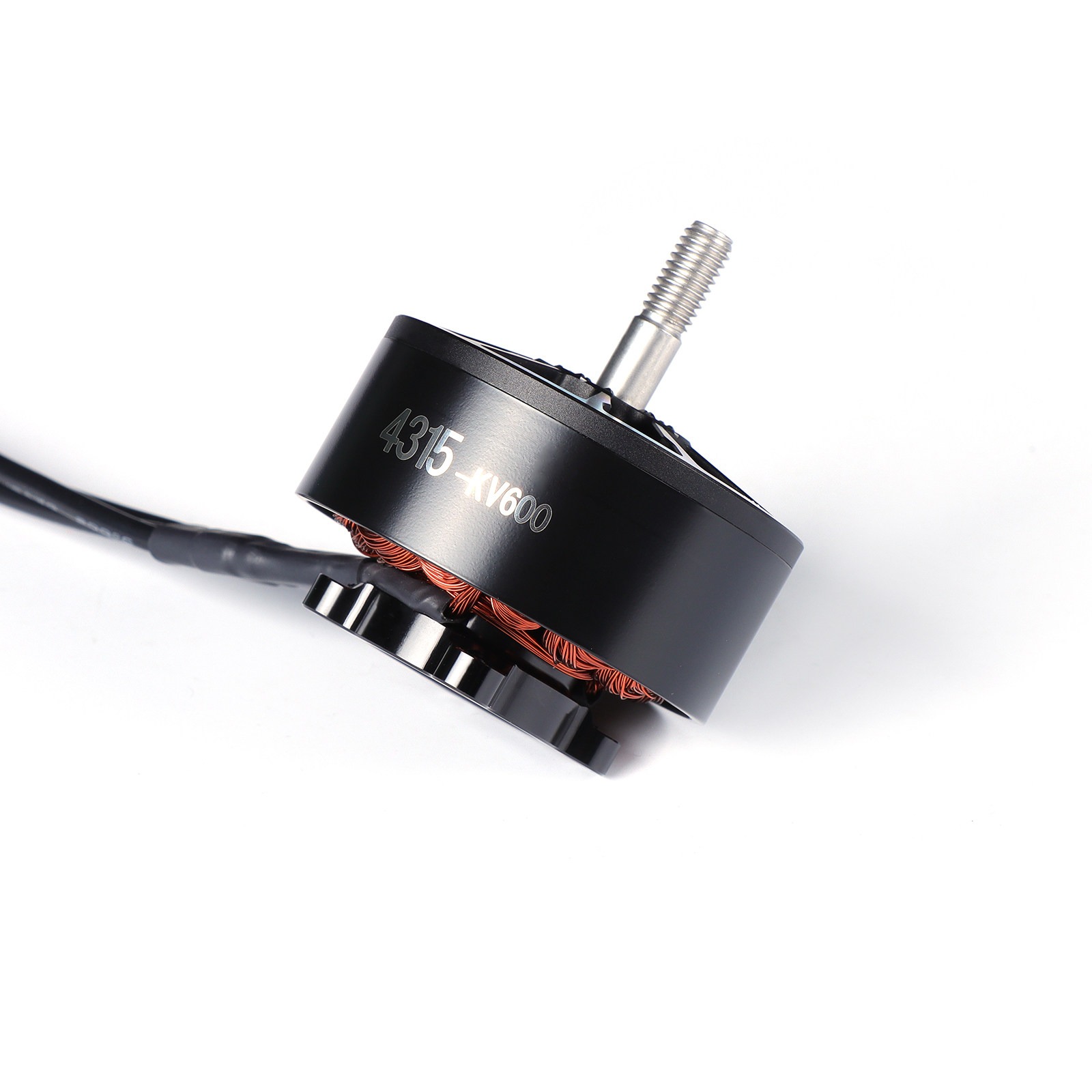

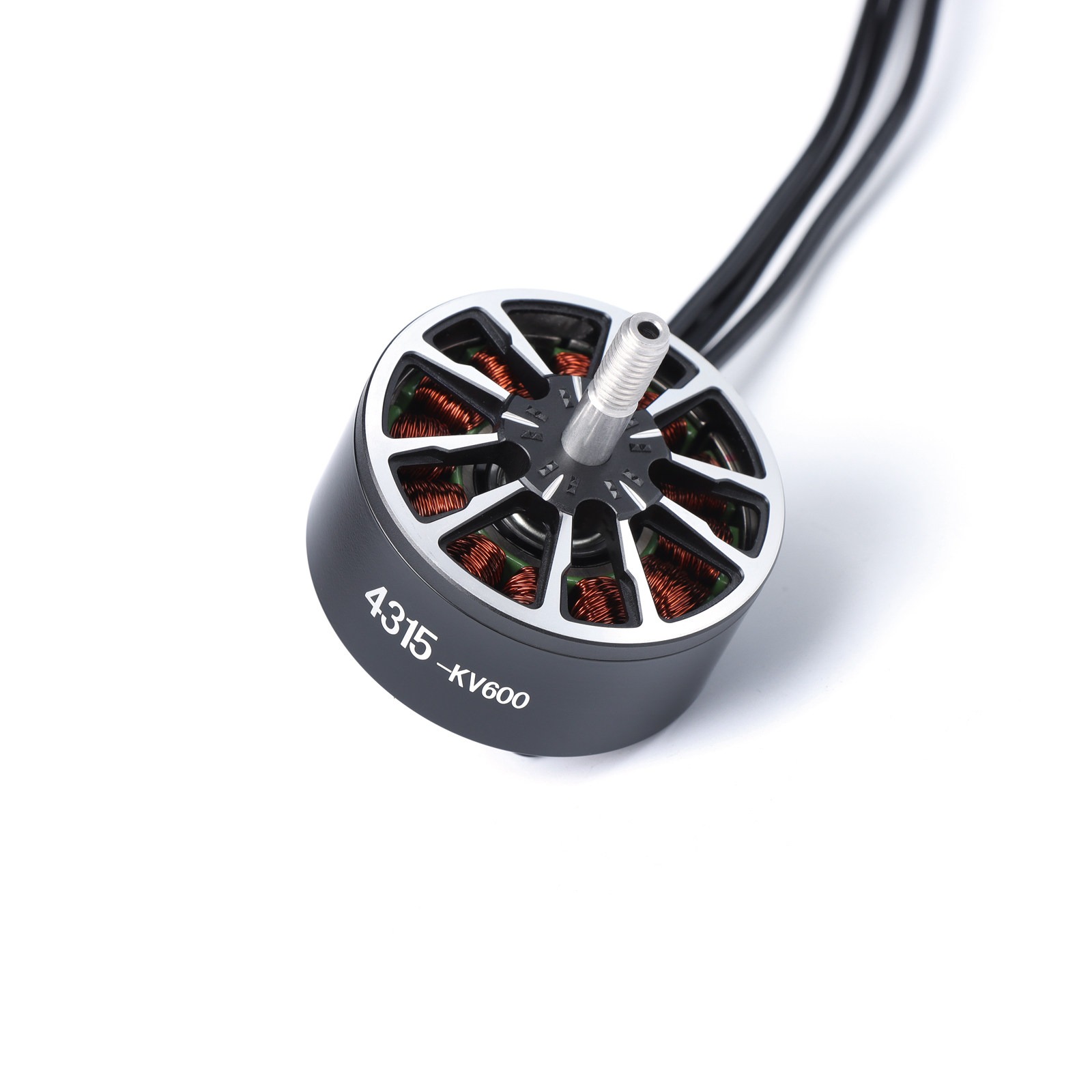

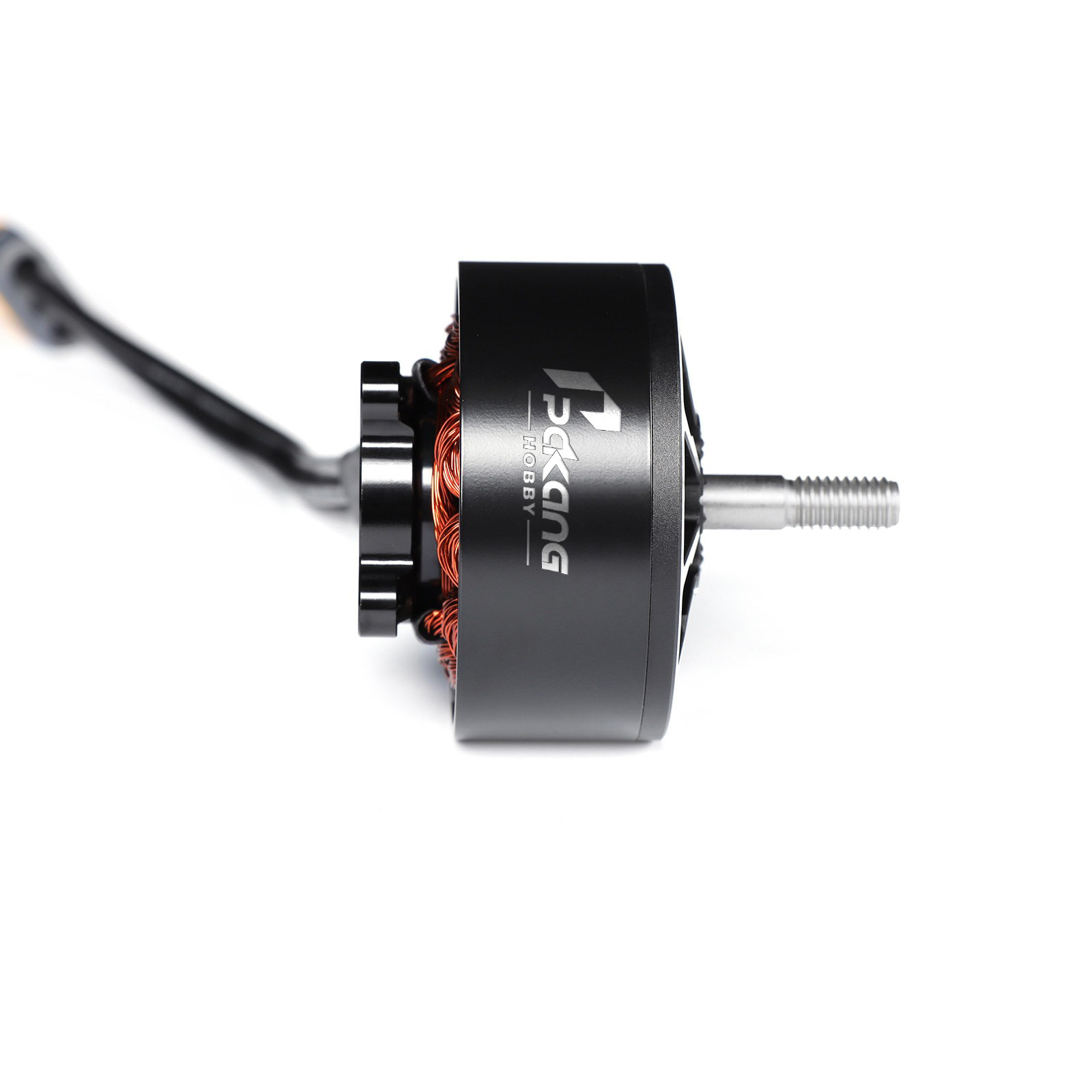

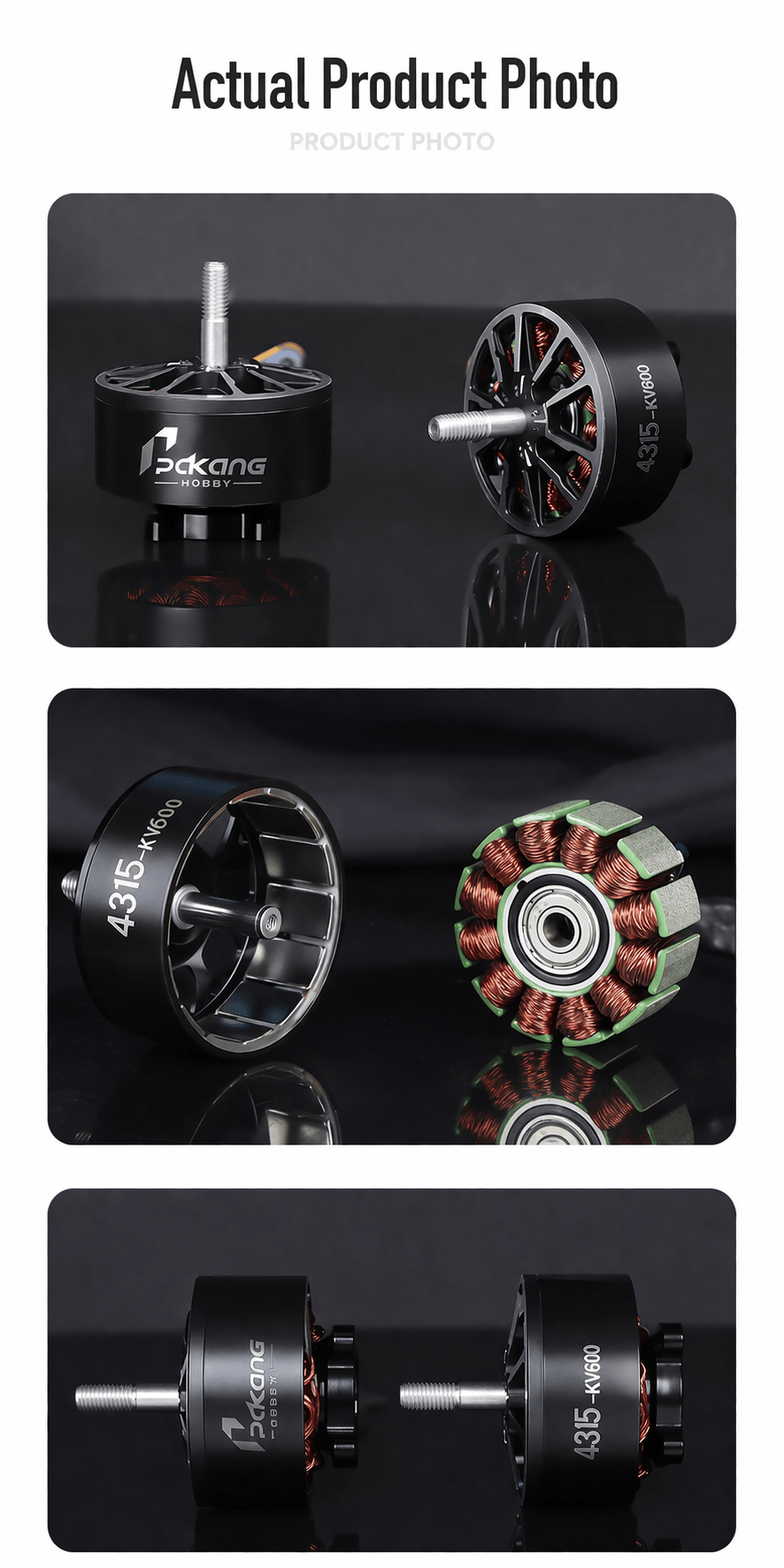

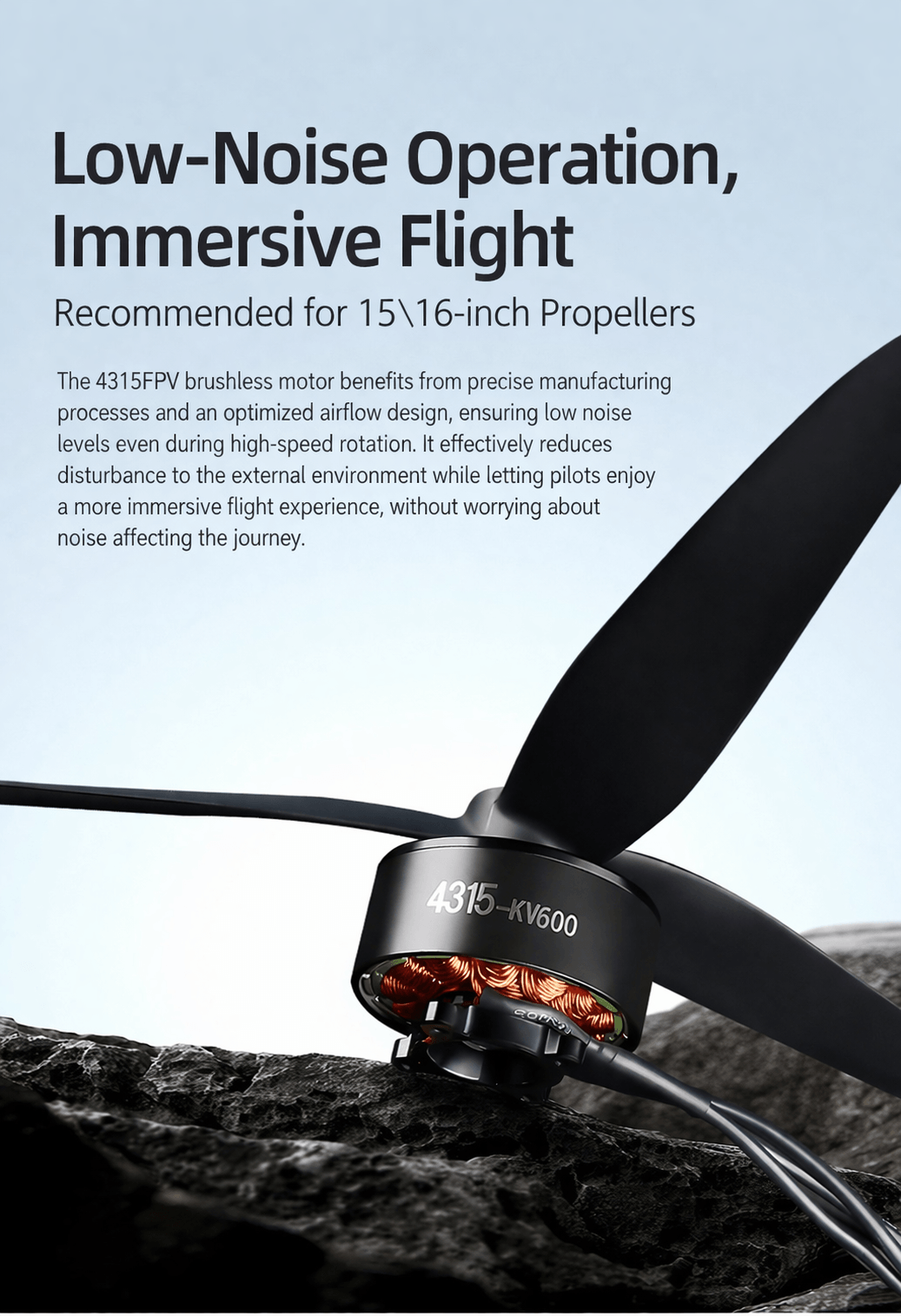

4315 kv600
Stator Diameter: Ø50 mm
Total Height: 56 mm
Shaft Thread: M3
Mounting Pattern: 30×30 mm (4-M3)

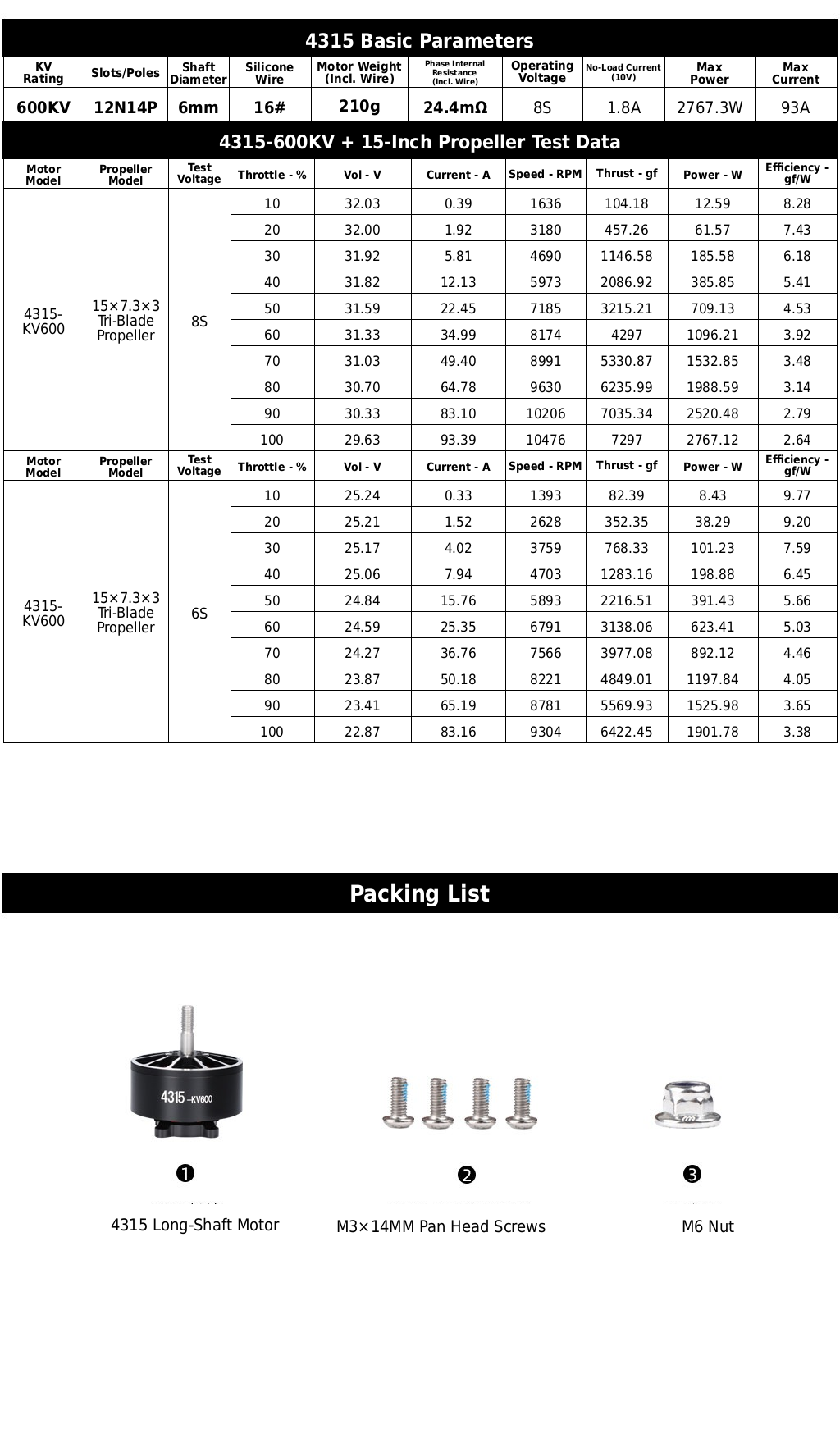

KV Value: 600
Configuration (Slots/Poles): 12N14P
Shaft Diameter: 6 mm
Silicone Wire: 16#
Motor Weight (including cable): 210 g
Phase Terminal Resistance (including cable): 24.4 mΩ
Working Voltage: 8S (Lipo)
No-Load Current (10V):1.8 A
Maximum Power:2767.3 W
Maximum Current: 93 A
