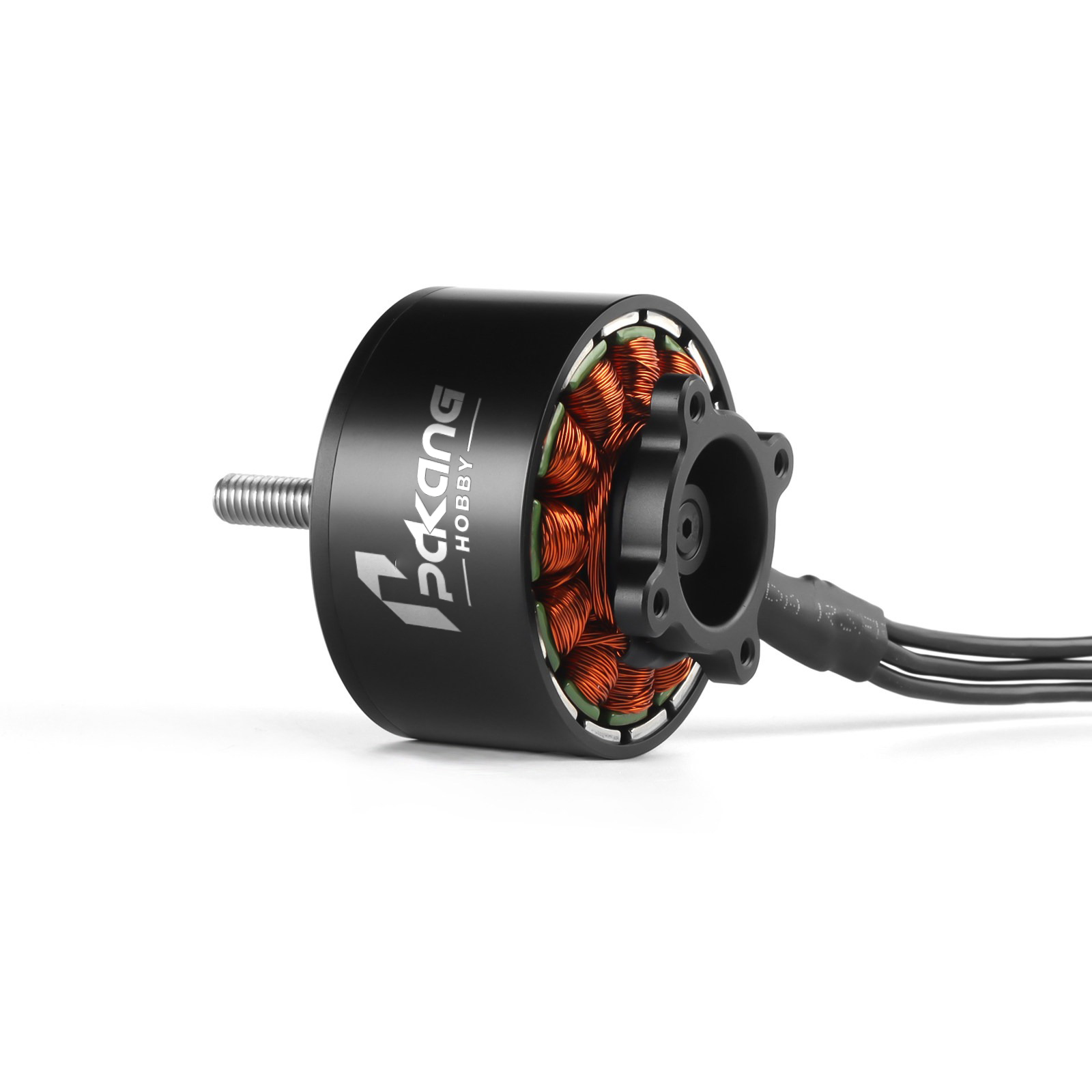

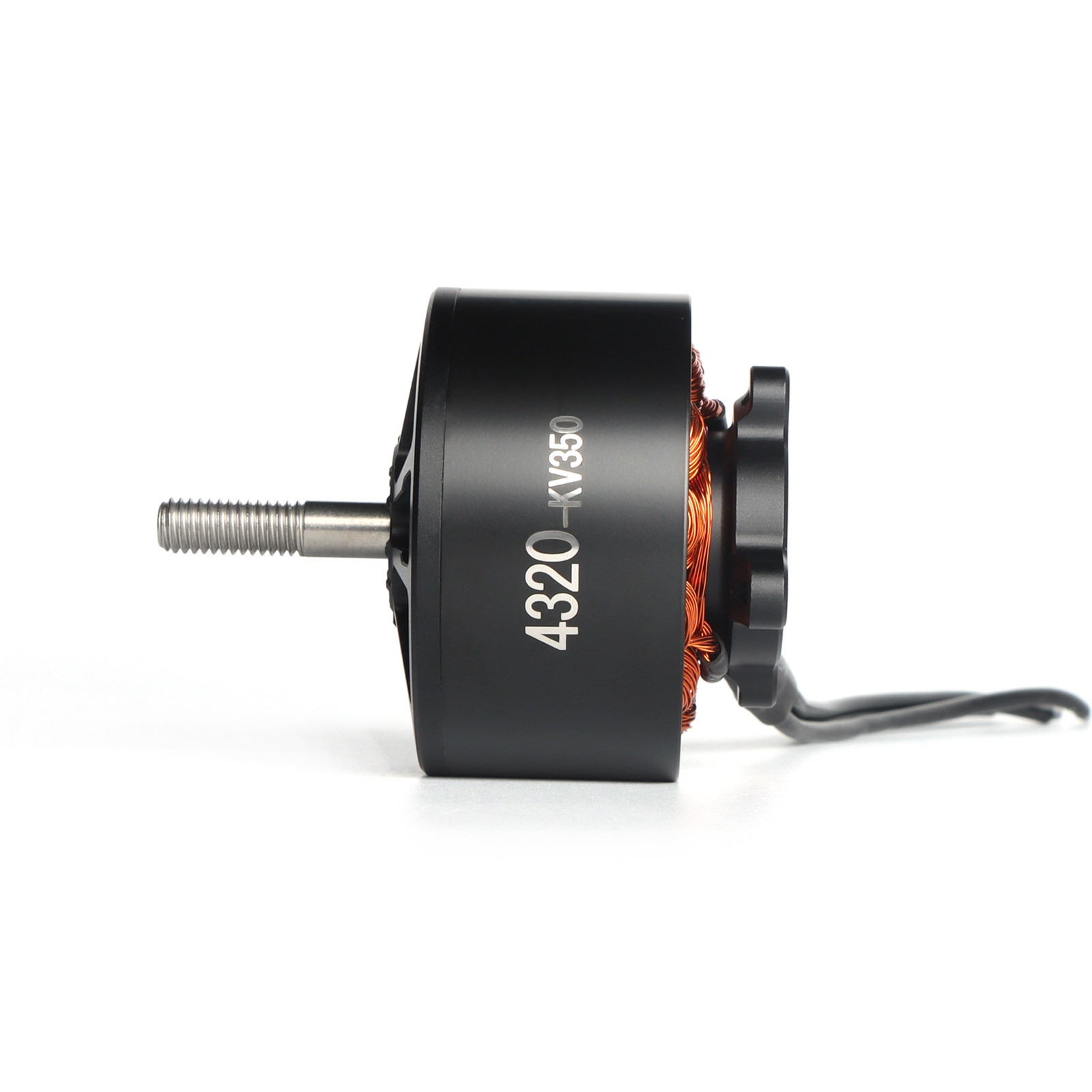

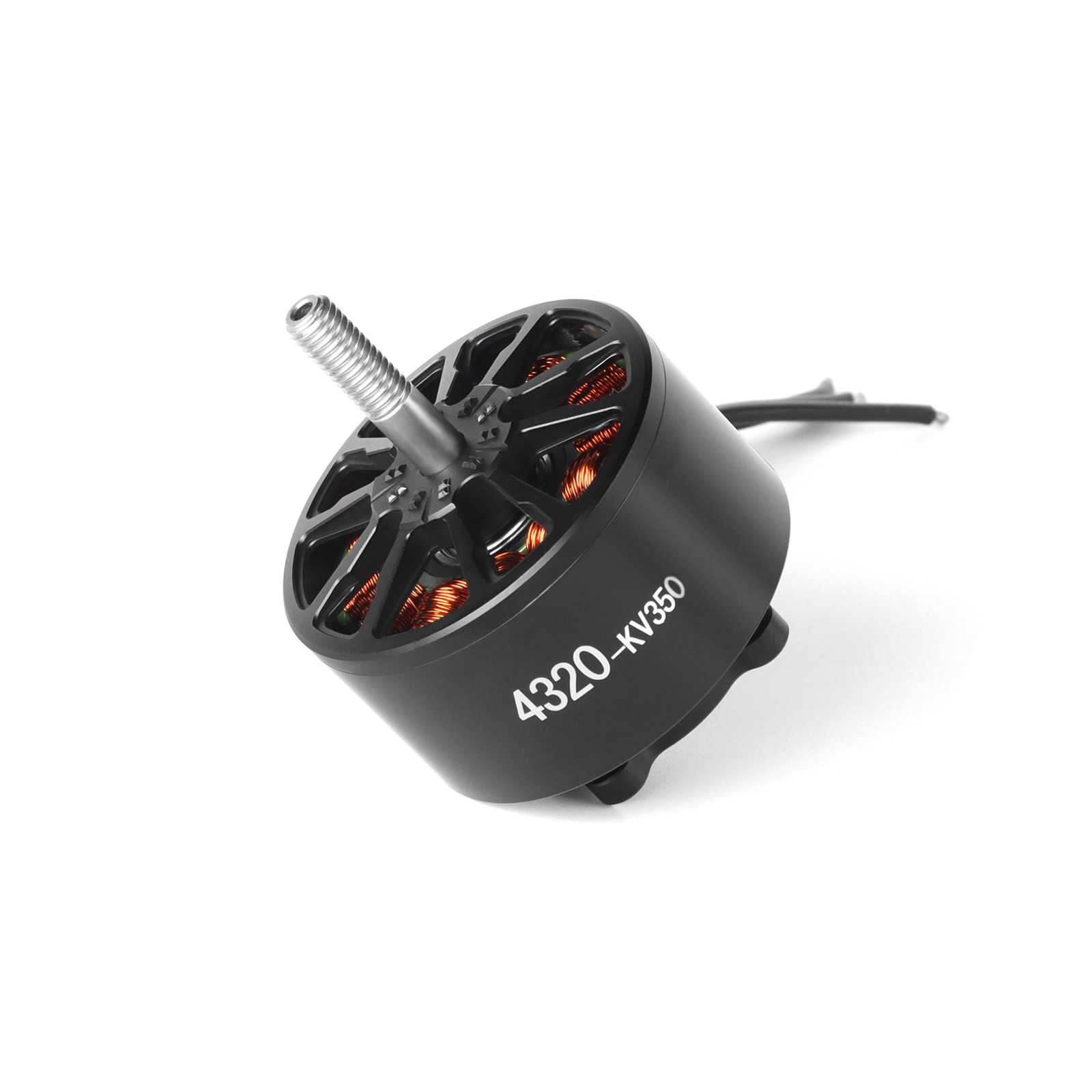

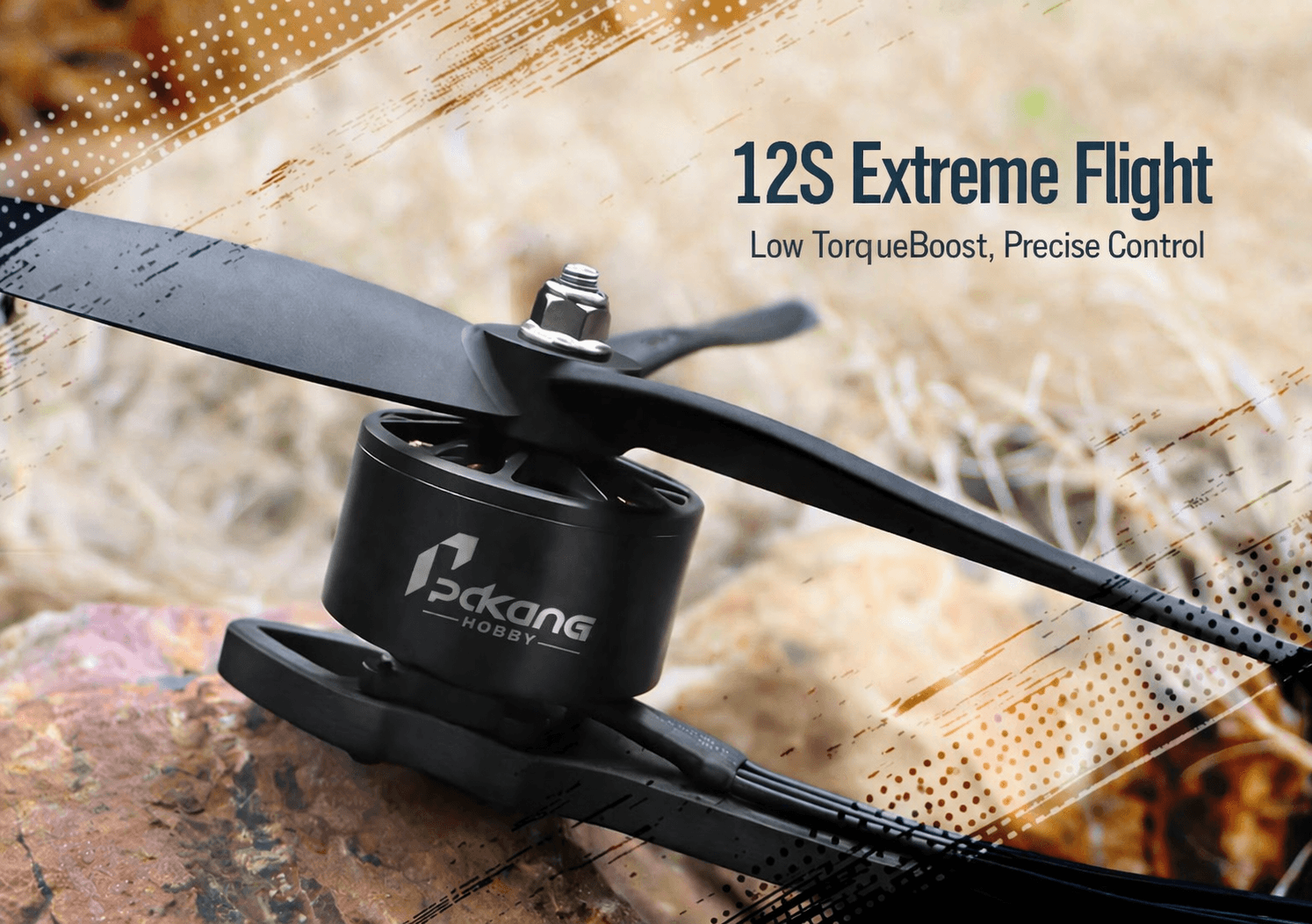

4320 kv350

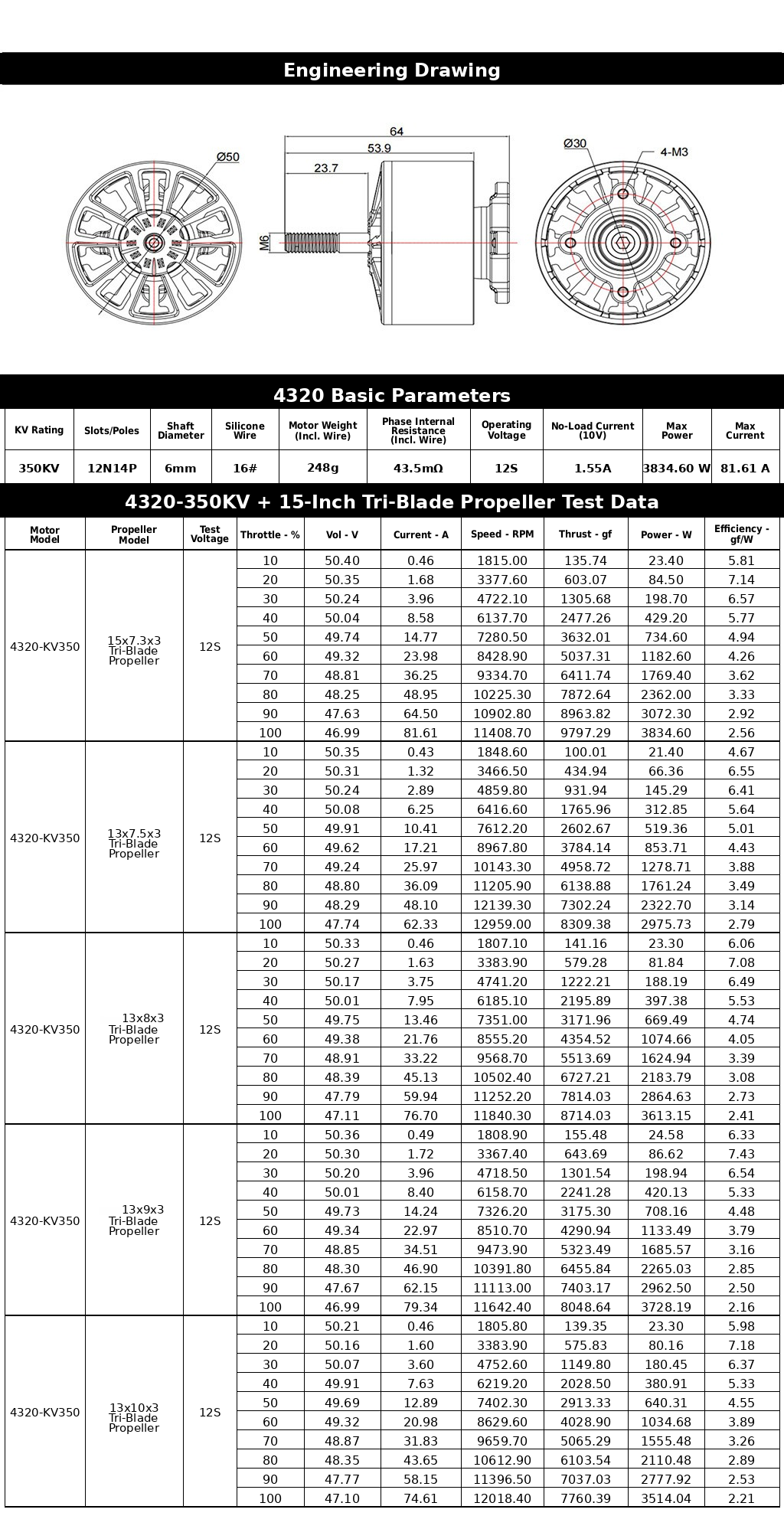

Stator Diameter: Ø50 mm
Total Height: 64 mm
Shaft Thread: M6
Mounting Pattern: 30×30 mm (4-M3)
KV Value: 350

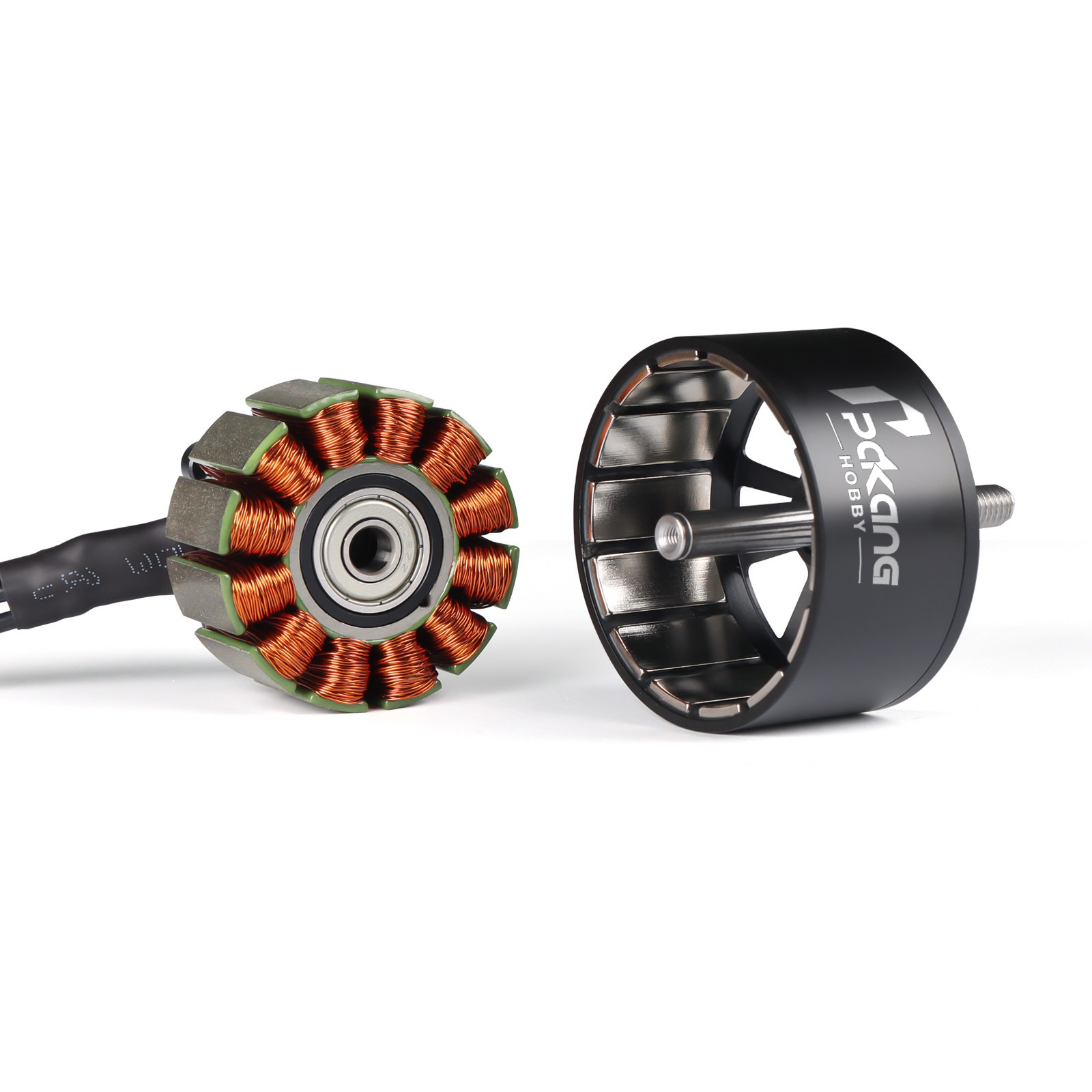

Configuration (Slots/Poles): 12N14P
Shaft Diameter: 6 mm
Silicone Wire: 16#
Motor Weight (including cable): 248 g
Phase Terminal Resistance (including cable): 43.5 mΩ
Working Voltage: 12S (Lipo)
No-Load Current (10V): 1.55 A
Maximum Power: 3834.6 W
Maximum Current: 81.61 A
