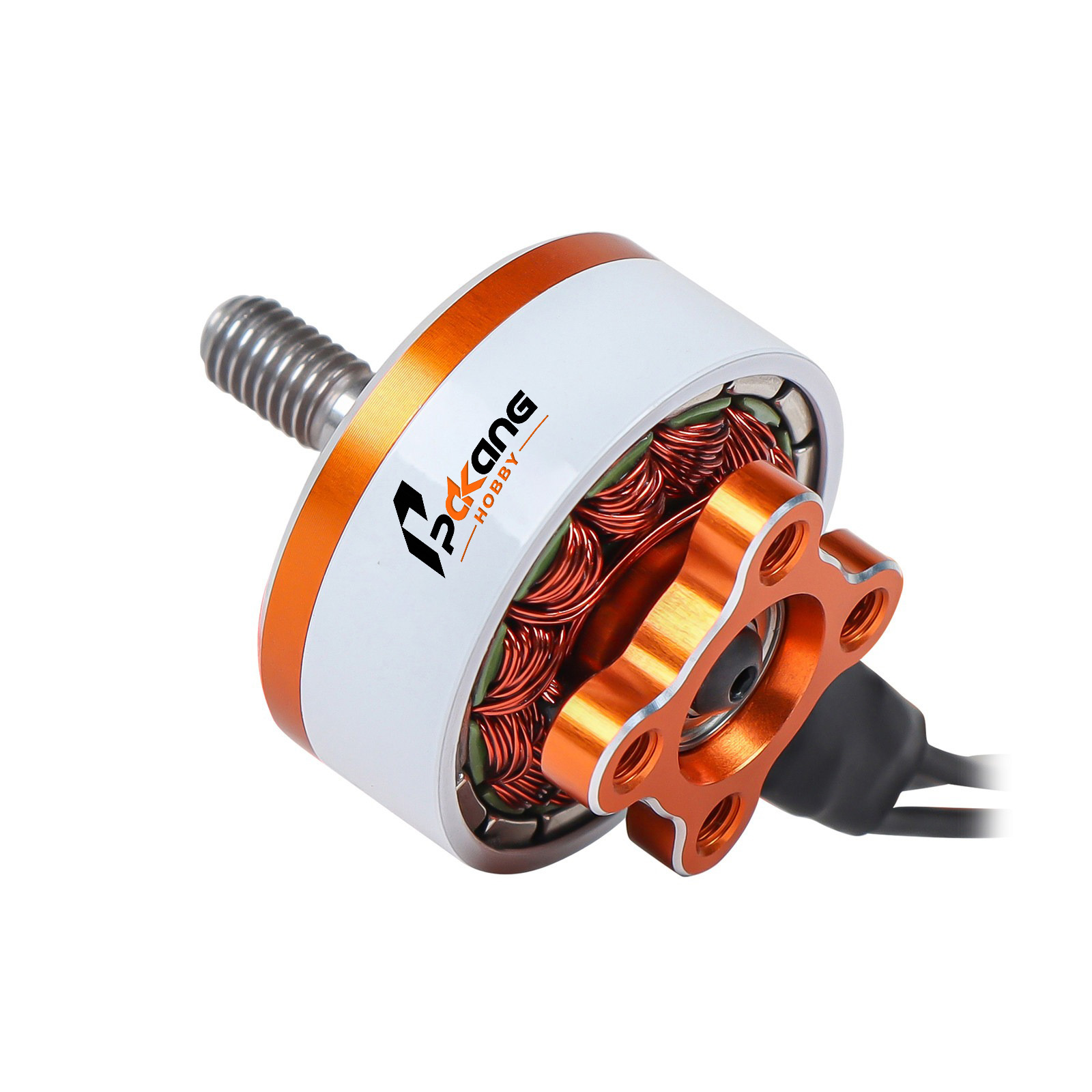

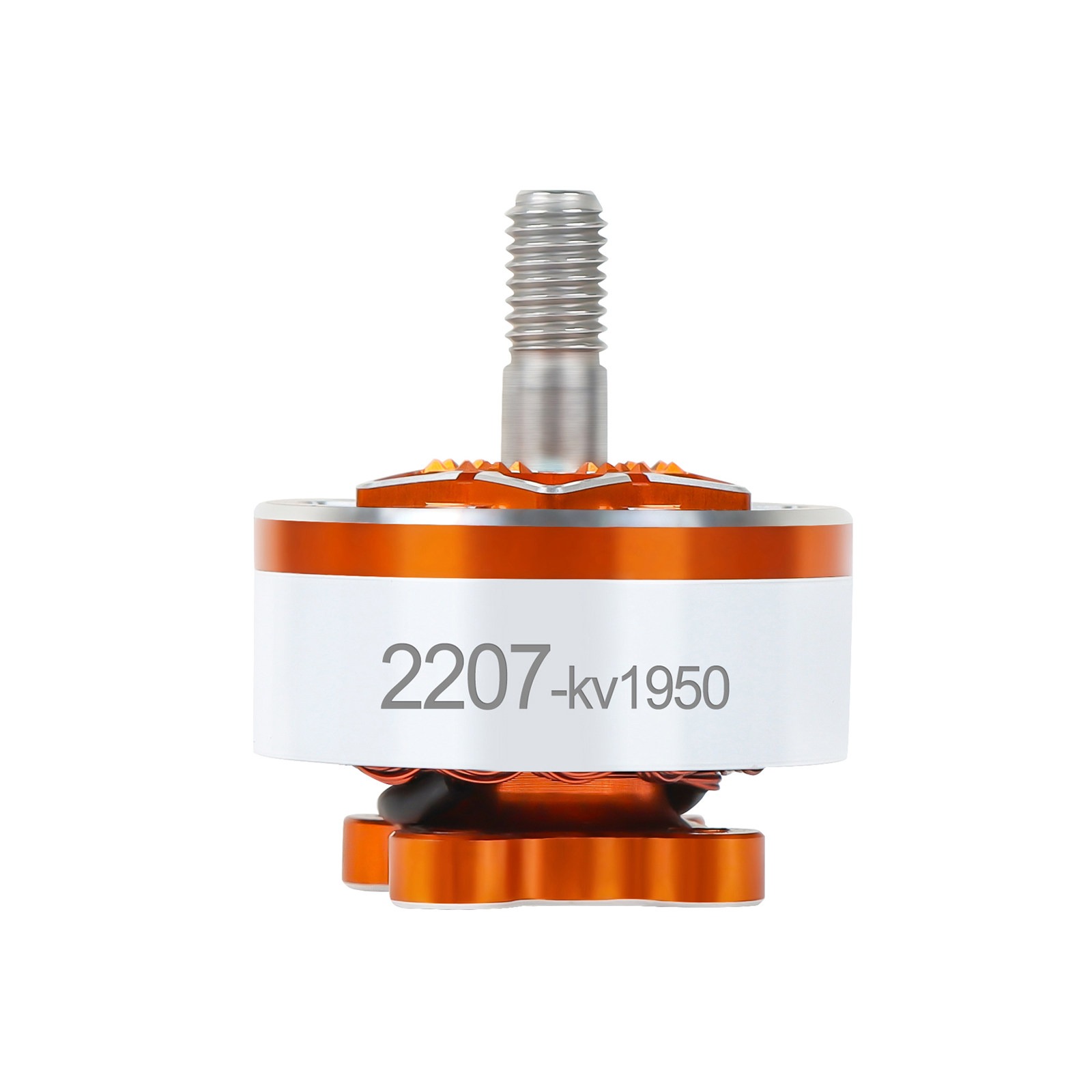

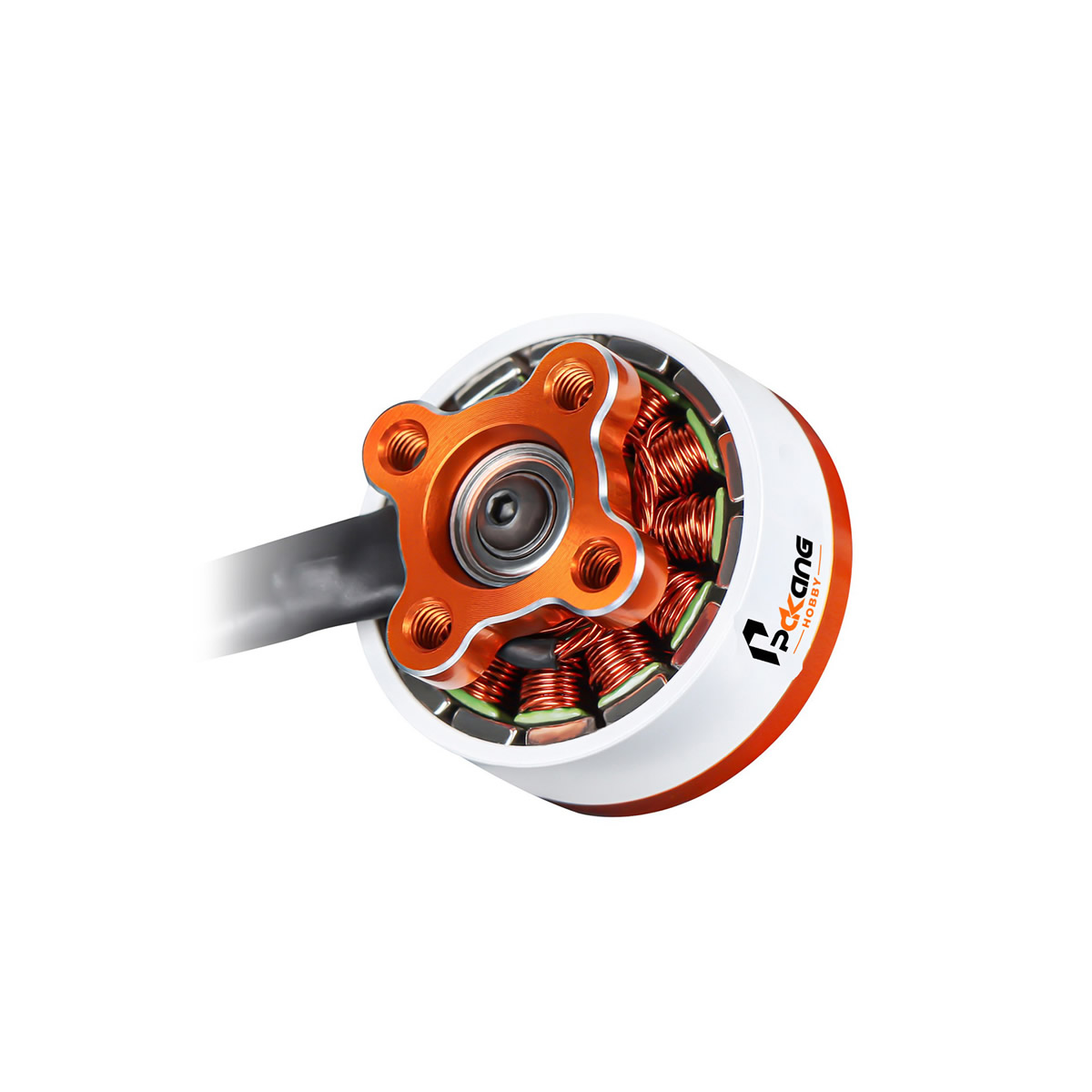

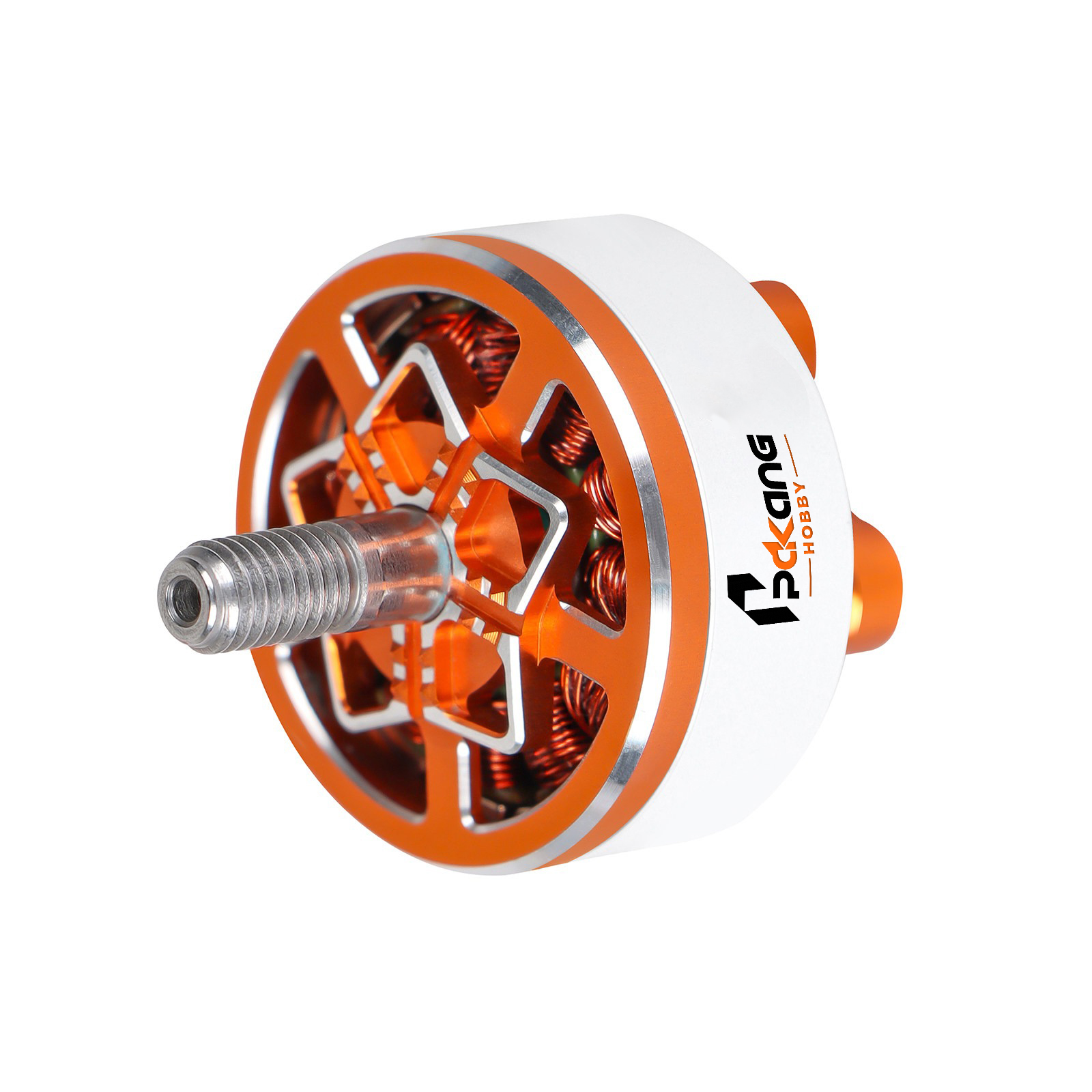

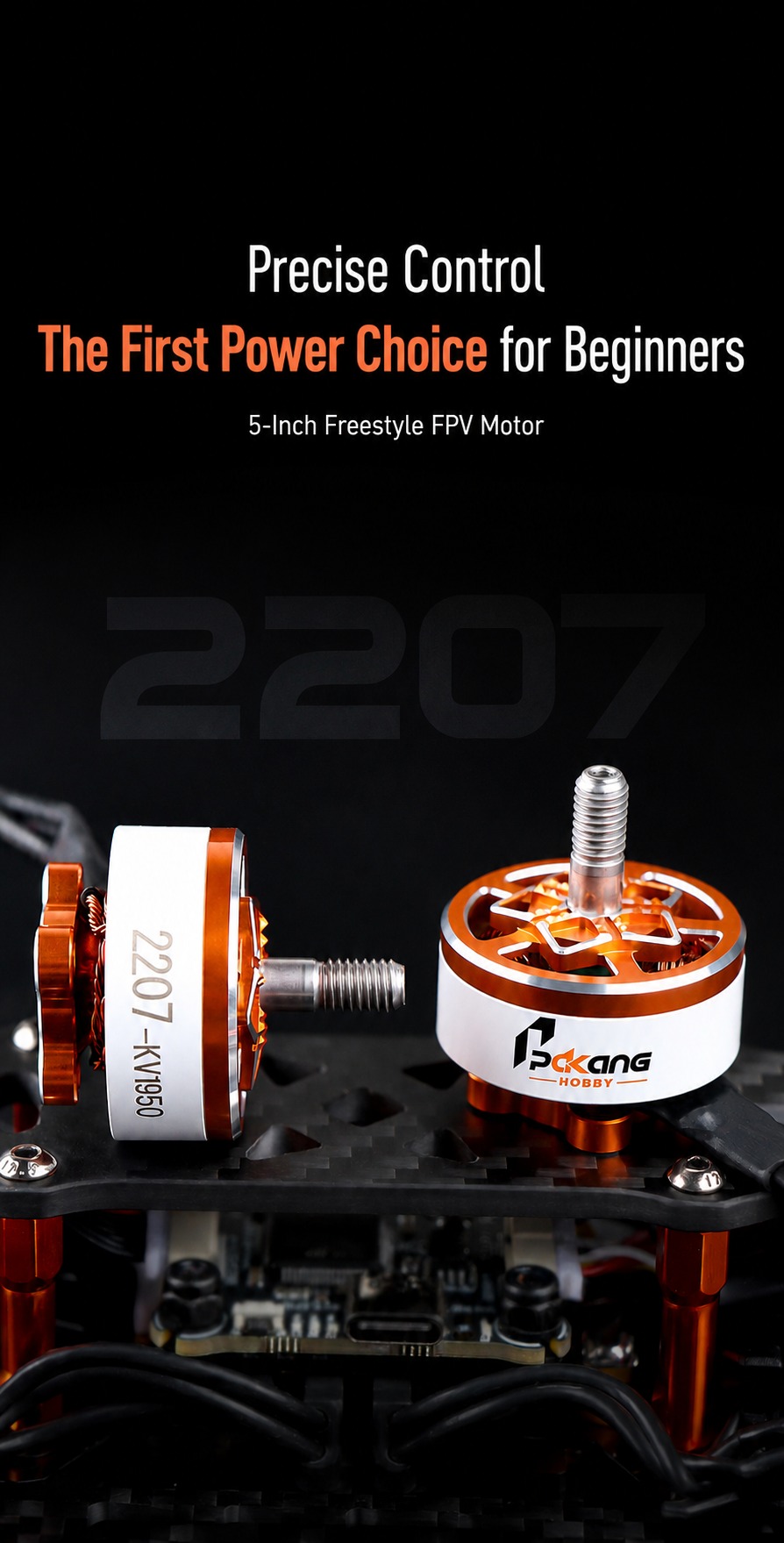

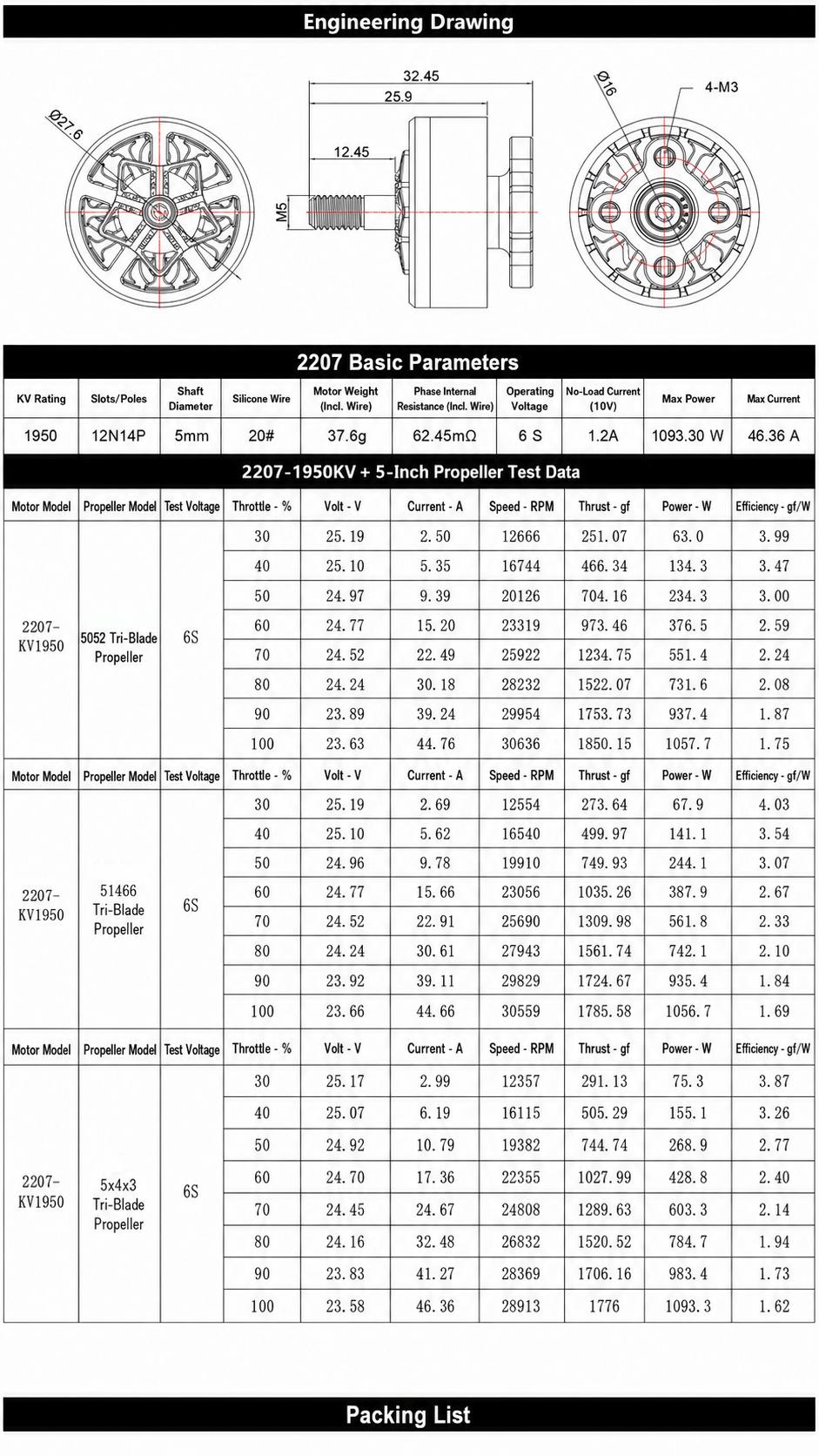

2207 kv1950
Stator Diameter: Ø22.0 mm
Total Height: 30.5 mm
Shaft Thread: M5
Mounting Pattern: 16×16 mm (4-M3)
KV Value: 1950
Configuration (Slots/Poles): 12N14P
Shaft Diameter: 5 mm
Silicone Wire: 20#
Motor Weight (including cable): 37.6 g
Phase Terminal Resistance (including cable): 62.45 mΩ
Working Voltage: 6S (Lipo)
No-Load Current (10V): 1.2 A
Maximum Power: 1093.0 W
Maximum Current: 46.36 A
