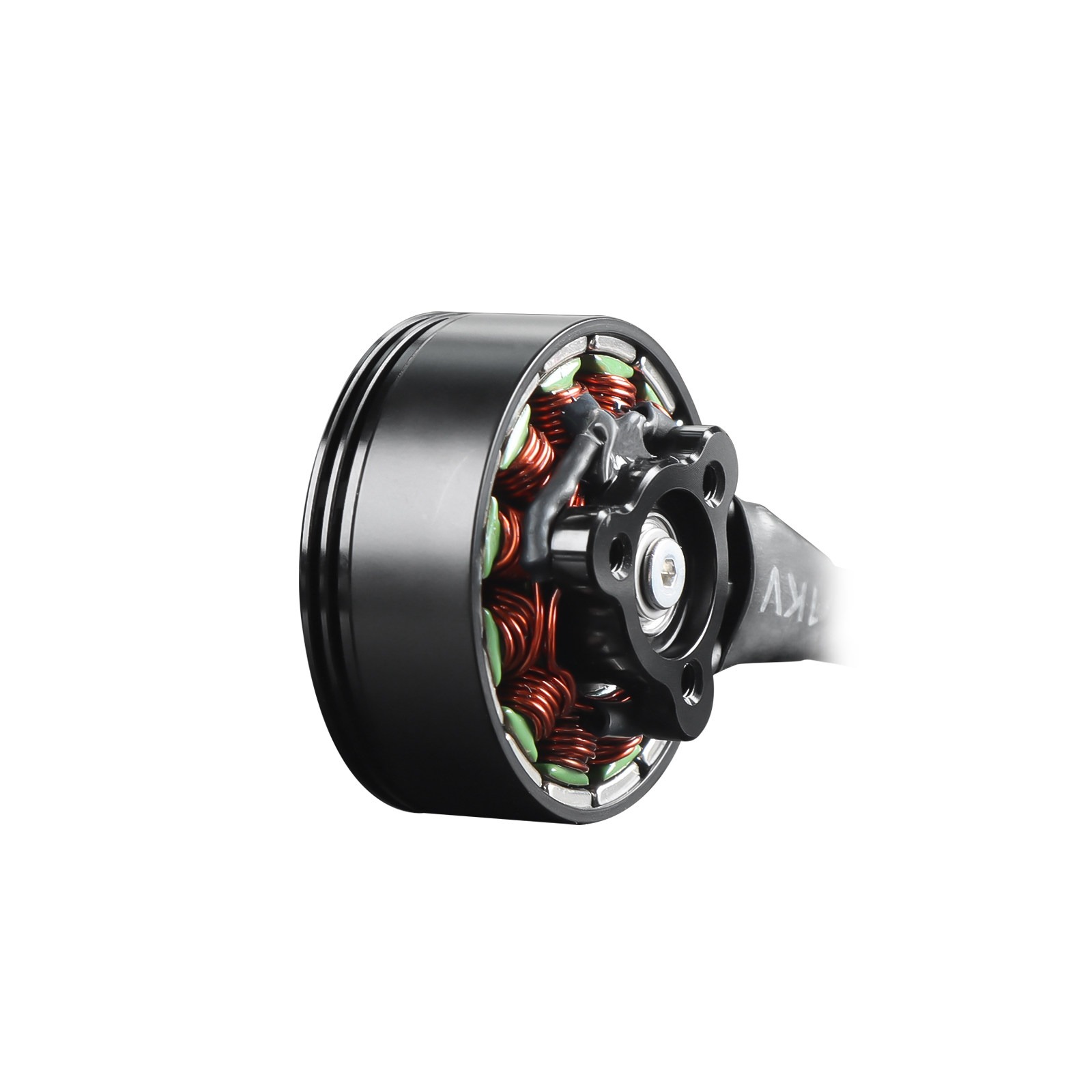

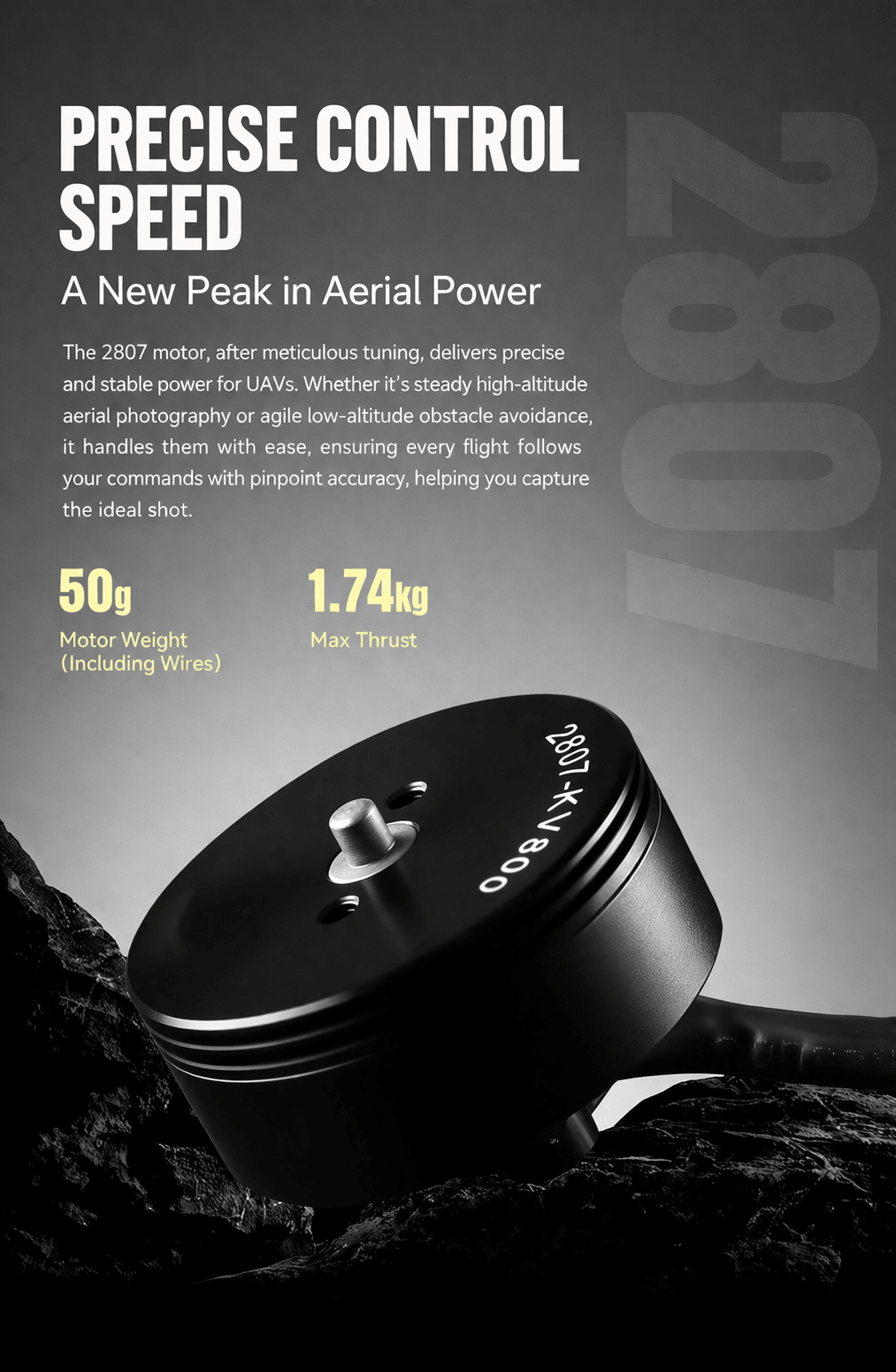

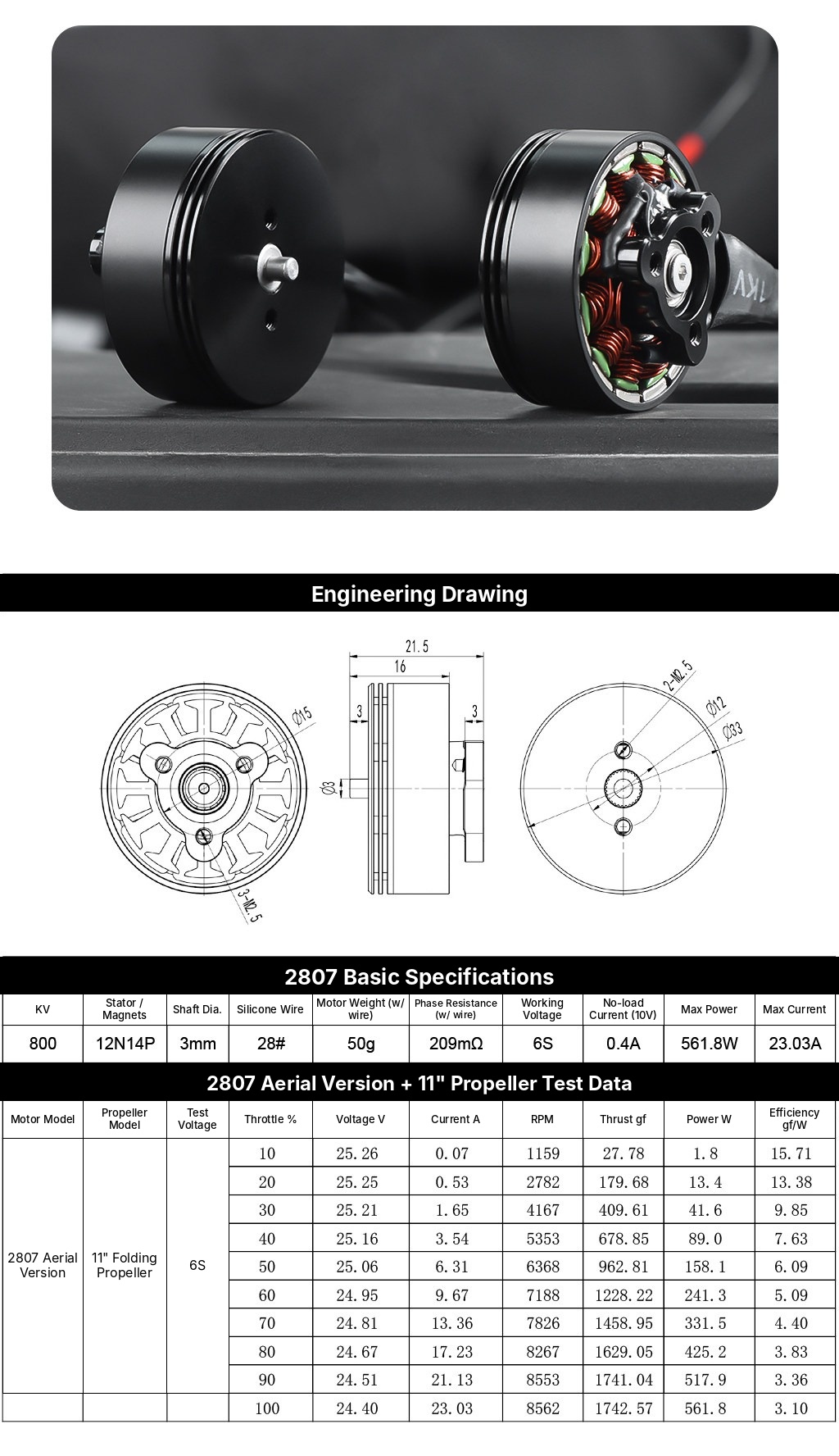

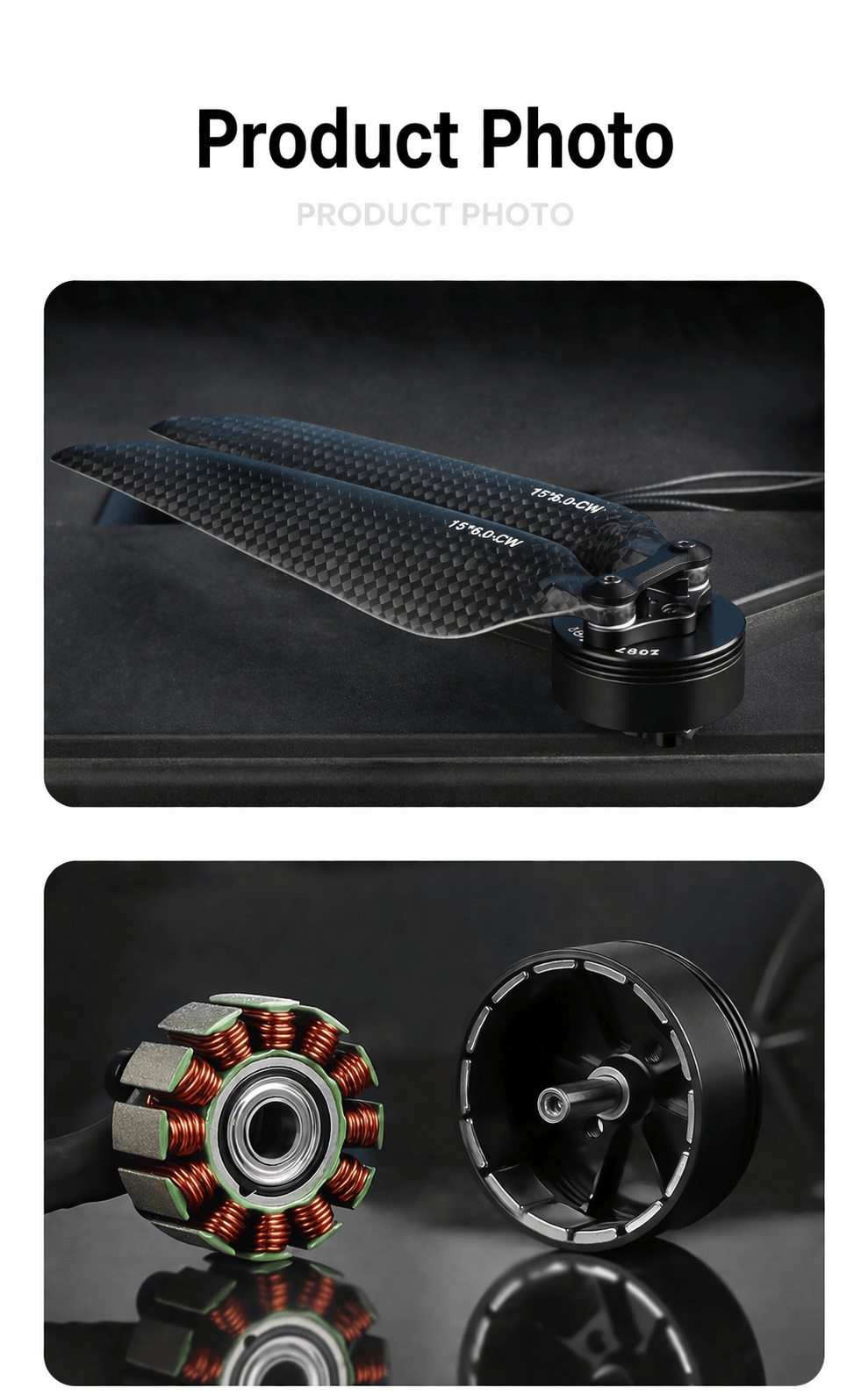

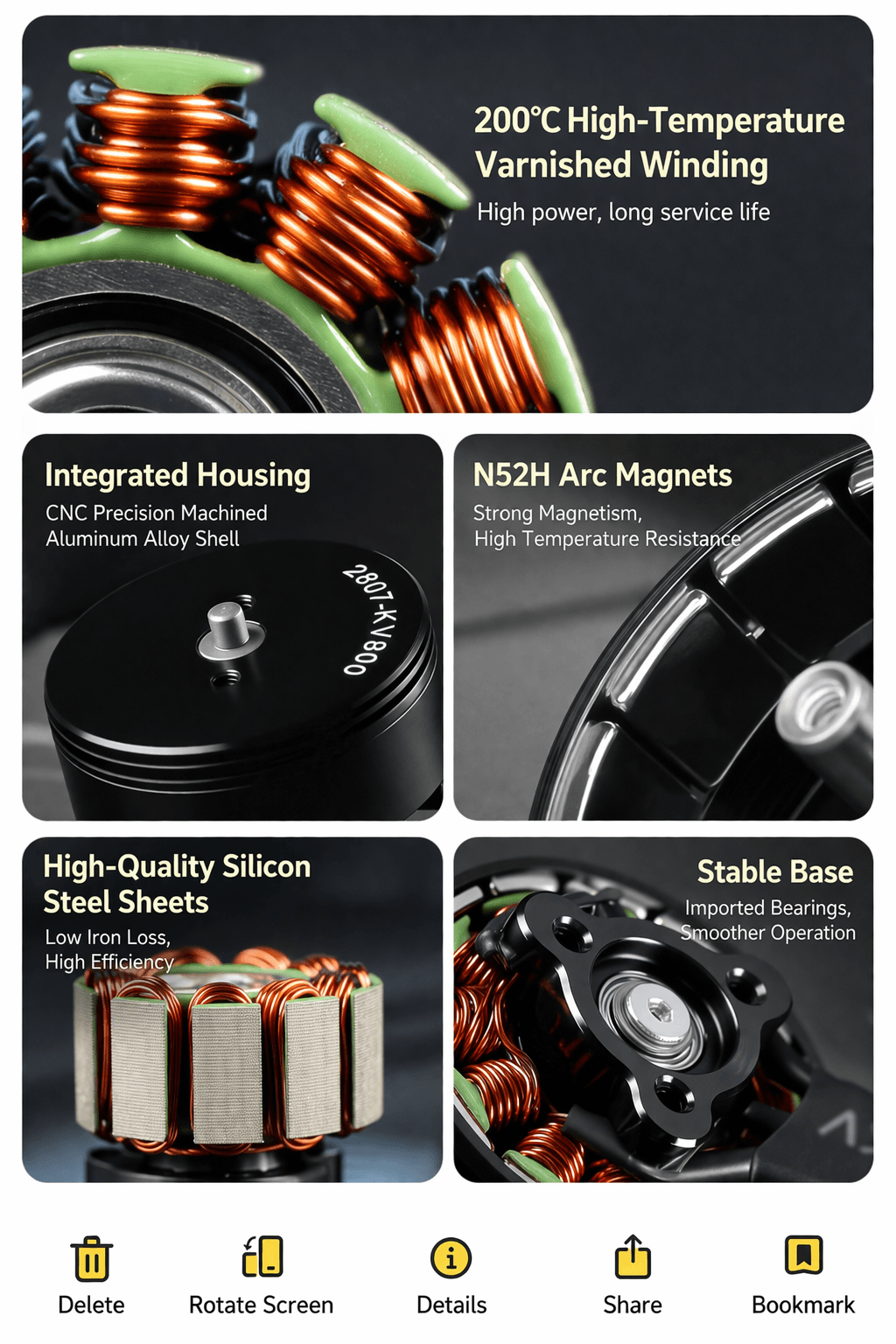

2807 kv800
Outer Diameter: Ø33 mm
Total Height: 21.5 mm
Shaft Diameter: 3 mm
Mounting Pattern: Ø15 mm (3×M2.5)
KV Value: 800

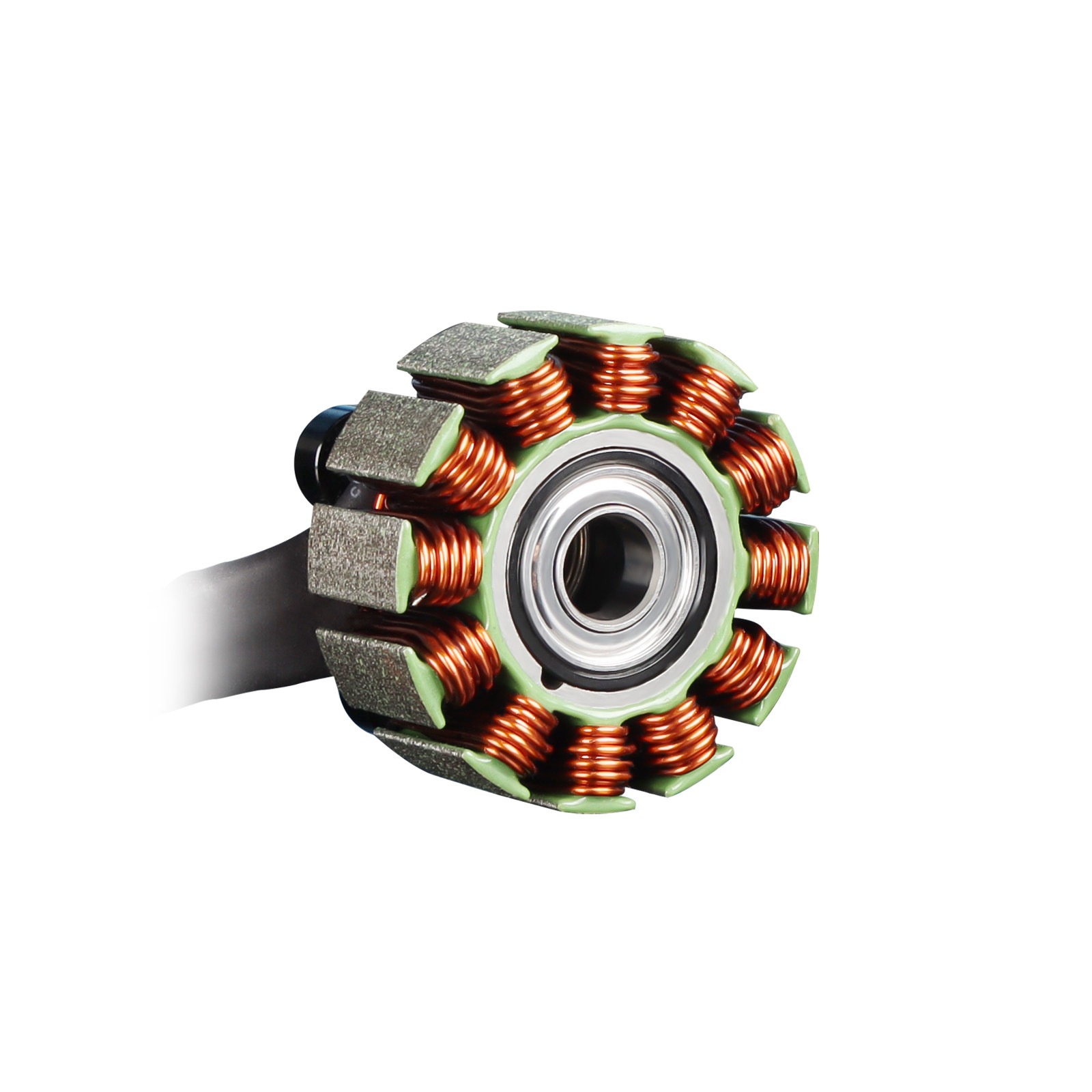

Configuration (Slots/Poles): 12N14P
Shaft Diameter: 3 mm
Silicone Wire: 28#
Motor Weight (including cable): 50 g
Phase Terminal Resistance (including cable): 209 mΩ
Working Voltage: 6S
No-Load Current (10V): 0.4 A
Maximum Power: 561.8 W
Maximum Current: 23.03 A
